SKU: SATSASBP425 Category: 4-bay mobile rack backplane for 2.5in SATA/SAS drives

* Images are for illustrative purposes only.

£86.47 £72.06 Ex. VAT

Availability: 22 in stock

Finance/leasing available for orders over £1000 Inc VAT

Free mainland UK shipping on orders over £150 Ex VAT

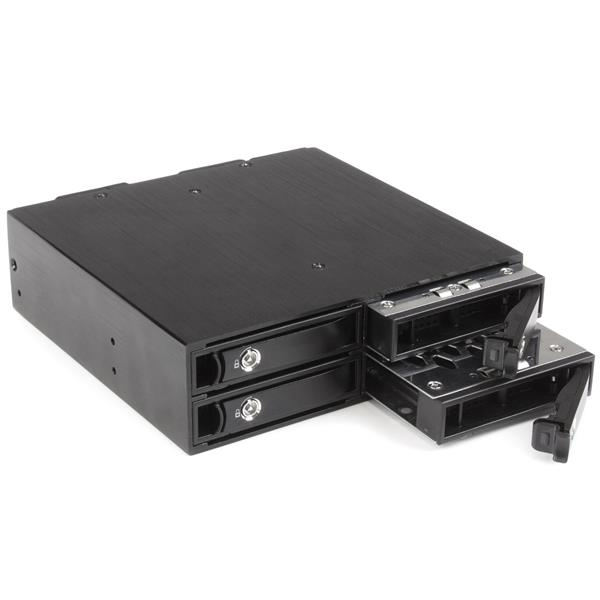

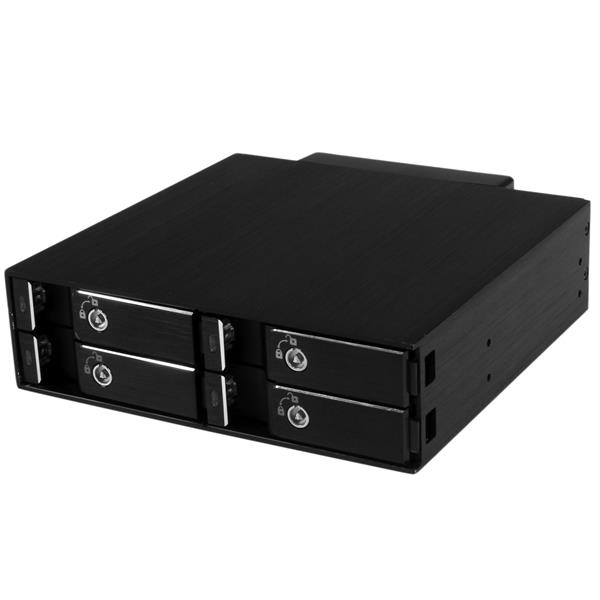

Now it’s easy to drive share and enhance the storage capabilities of your server or PC. This mobile rack backplane lets you install four 2.5in SATA or SAS solid-state or hard disk drives into a single 5.25in bay and quickly hot swap them between systems. It’s ideal for systems integrators and administrators who are looking for flexible management of their data storage.

Designed for durability and trouble-free use

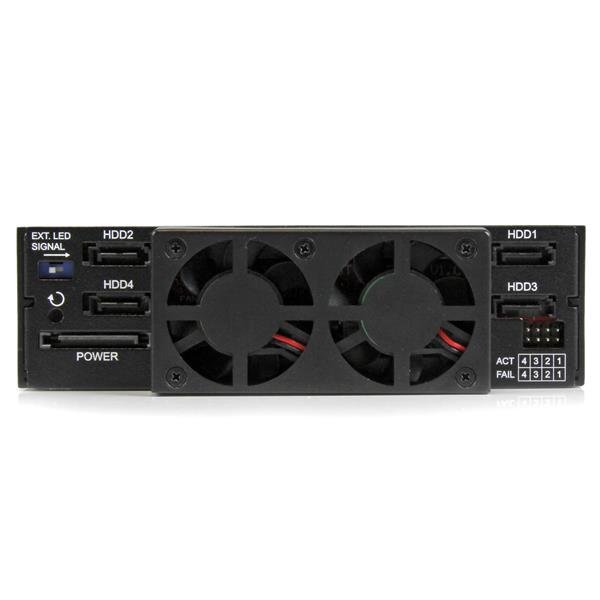

The mobile rack backplane is engineered to protect your valuable data and provide reliable performance. The aluminum housing is designed for enhanced heat dissipation, while two 40mm fans improve air flow to minimize heat build-up and ensure optimum operating temperature.

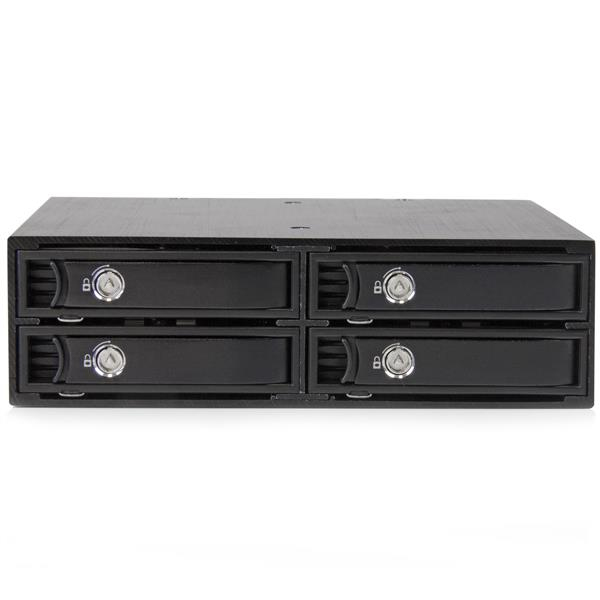

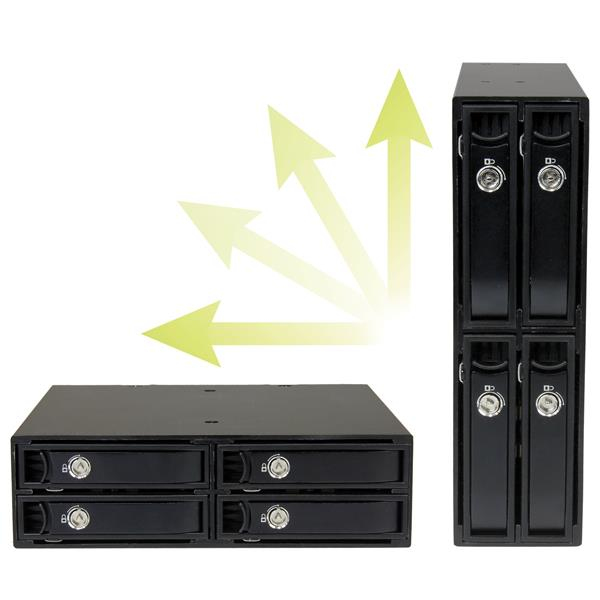

The backplane can be mounted either vertically or horizontally, for error-free tray insertion and maximum compatibility with servers or desktop computers.You can lock the removable steel trays in place, providing an enhanced level of drive protection. The Non-Scratch SATA (NSS) connector provides a high 50,000+ insertion rating, your assurance of long-lasting performance of both the drives and the bay.

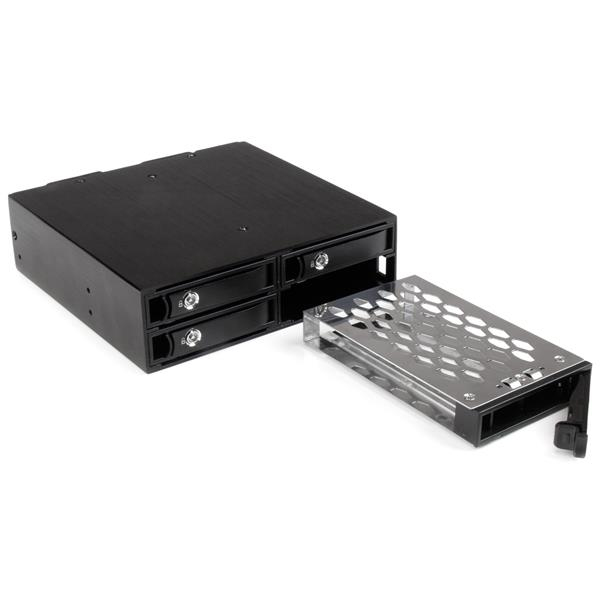

Convenient, interchangeable drive trays
Many fast-paced work environments require drives to be removed regularly. Hot swap between systems quickly, without shutting down, with the convenient backplane.

The included drive trays are interchangeable, working with both the 4-bay backplane and the single-bay backplane (SATSASBP125) so you can hot swap between systems for easy file access.

Compatible with a wide range of drives
Designed for versatile use, the backplane supports an extensive range of both SATA or SAS based HDDs and SSDs, from 5 to 15mm in height.

To maximize the performance of your drives, the mobile rack supports SAS II and SATA III performance for transfer speeds up to 6 Gbps when paired with a compatible controller. The backplane also works with your preferred RAID controller or Hyper Duo™ controller to produce a high-performance or redundant storage solution.

The SATSASBP425 backplane is backed by a 2-year warranty and free lifetime technical support.

The Advantage
– Supports a wide range of 2.5in SAS or SATA HDD/SSDs from 5-15 mm
– High-quality metal housing maximizes heat dissipation
– Two 40 mm fans help to ensure optimum operating temperature
– Maximize performance through SAS II and SATA III, with file transfer speeds of up to 6Gbps

Feature Feature Value
Supported storage drive heights 9.5,12.5 mm
Hot-swap Y
Number of fans 2 fan(s)
Fan diameter 4 cm
Data transfer rate 6 Gbit/s
LED indicators Activity,Power
Key lock Y
Product colour Black
Material Aluminium,Steel
Certification CE, FCC
RoHS compliance Y
Port multiplier N
Width 146 mm
Depth 151.5 mm
Height 42 mm
Weight 760 g
Package weight 1.04 kg

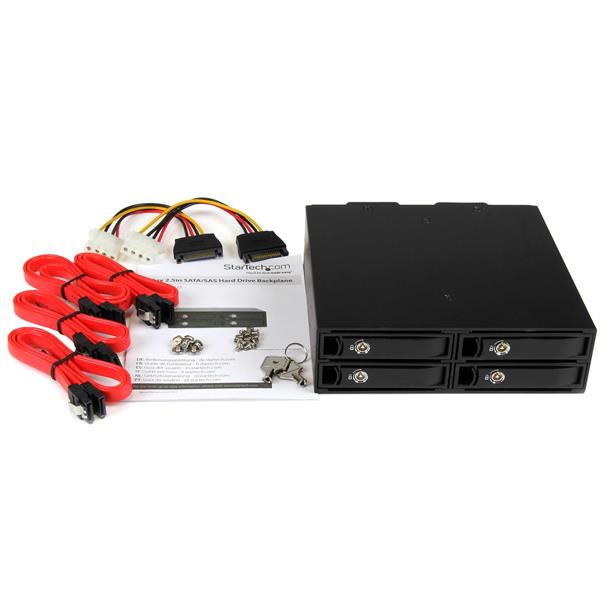

Cables included SATA
Screws included Y
Storage temperature (T-T) -20 – 55 °C
Operating temperature (T-T) 0 – 55 °C
Operating relative humidity (H-H) 5 – 65%
Number of fans

2 fan(s)

Data transfer rate

6 Gbit/s

Key lock





146 mm



Port multiplier



760 g
