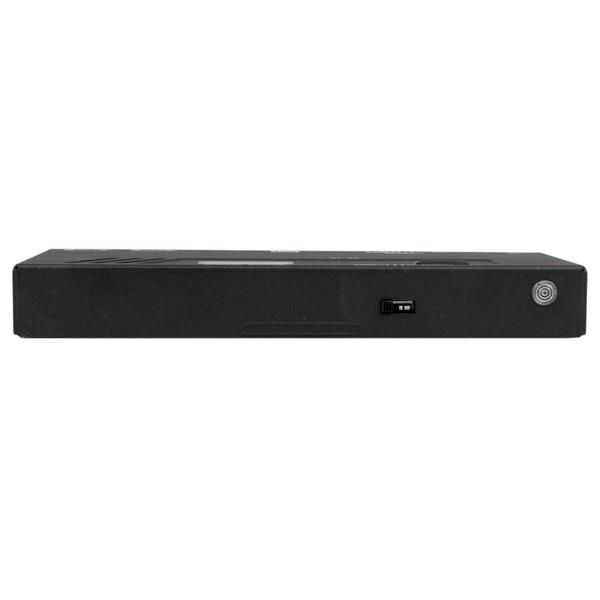

SKU: VS222HDQ Category: 2X2 HDMI Matrix Switch w/ Automatic and Priority Switching – 1080p

* Images are for illustrative purposes only.

£106.06 £88.38 Ex. VAT

Availability: 1 in stock

Finance/leasing available for orders over £1000 Inc VAT

Free mainland UK shipping on orders over £150 Ex VAT

Discover hassle-free HDMI connection and automatic video port selection with high-definition picture quality

Save time and hassle by automatically switching between your HDMI audio/video sources, using the VS222HDQ 2X2 HDMI Matrix Switcher. This easy-to-use HDMI Matrix switch ensures seamless transition while switching video and display sources, with EDID copy maintaining your video resolution.

Seamless Signal Selection

Ensure seamless transition while switching video sources, with EDID copy maintaining native resolution with support for 1080p. Video connection emulation ensures the settings on any connected computers are not disrupted while switching to a different video source.

Effortless Control

Save time by connecting two HDMI video source devices to two independent HDMI displays instead of manually connecting individual cables. Mounting hardware is also included for a tidy, professional installation.

Versatile Switching Options

Enjoy hassle-free operation with four different switching modes:

Automatic port selection: Enables your most recently activated video source to be displayed automatically.

Priority port selection: Prioritizes input number two above input number one. If the video source connected to input number two is activated that source will be displayed.

Matrix port selection: Independently switch two displays between two video sources.

Manual port selection: Enables you to manually select your HDMI source with easy-to-use front panel buttons.

The Advantage

– Save your time, by conveniently accessing multiple HDMI source devices with 2 independent HDMI displays
– Hassle-free operation, with four video selection modes including automatic, priority, matrix and manual
– Worry-free switching, with EDID copy video and connection emulation ensuring no signal loss

Feature Feature Value
Video port type HDMI
HDMI ports quantity 4
HDMI in 2
Number of HDMI outputs 2
Product colour Black
Plug and Play Y
Material Aluminium,Plastic
Maximum operating distance 10 m
Rack mounting Y
Supported graphics resolutions 1280 x 720 (HD 720),1920 x 1080 (HD 1080),1920 x 1200 (WUXGA)
Supported video modes 1080p,720p
Full HD Y
LED indicators Activity
Audio output channels 7.1 channels
AC adapter input voltage 100 – 240 V
AC adapter input current 0.6 A
AC adapter output voltage 12 V
AC adapter output current 1.5 A
RoHS compliance Y
Certification CE, FCC
Weight 290 g
Dimensions (WxDxH) 65 x 157 x 20 mm
Package width 195 mm
Package depth 290 mm
Package height 262 mm
Package weight 545 g
Handheld remote control Y
Manual Y
AC adapter included Y
Operating temperature (T-T) 0 – 40 °C
Storage temperature (T-T) -20 – 60 °C
Operating relative humidity (H-H) 0 – 80%
Audio support Y
