StarTech.com 24in Internal USB Motherboard Header to Serial RS232 Adapter

SKU: ICUSB232INT1 Category:

StarTech.com 24in Internal USB Motherboard Header to Serial RS232 Adapter

SHARE

Share on facebook
Share on twitter
Share on whatsapp
Share on reddit
Share on linkedin
Share on email

£22.86 £19.05 Ex. VAT

Availability: 17 in stock

Finance/leasing available for orders over £1000 Inc VAT

Free mainland UK shipping on orders over £150 Ex VAT

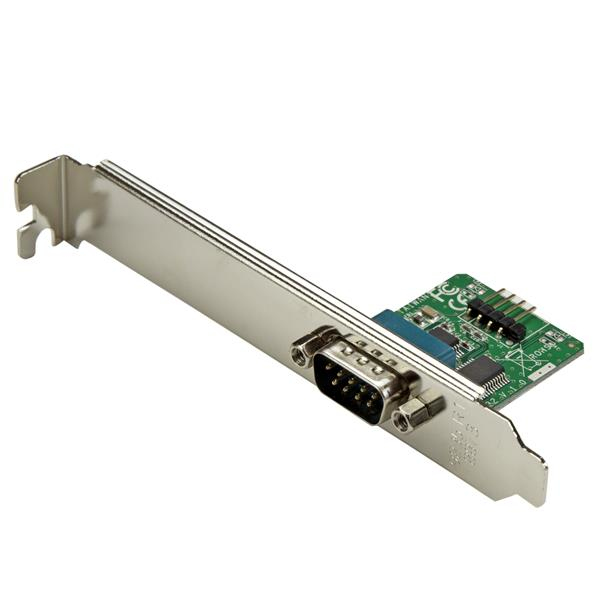

The ICUSB232INT1 USB to RS232 Serial Adapter lets you add an RS232 port to any desktop system that is equipped with an available USB motherboard header.

Unlike standard USB to serial cables, this cable is designed for use inside the PC case, affording an entirely internal solution with no mess or extra adapters needed.

This compact and simple USB adapter offers a cost-effective solution that bridges the compatibility gap between modern computers and legacy serial peripherals.

Backed by a StarTech.com 2-year warranty and free lifetime technical support.

The StarTech.com Advantage
– Direct connection from the motherboard header allows for a clean and completely contained setup, without taking up a PCI/PCI-Express slot in your system

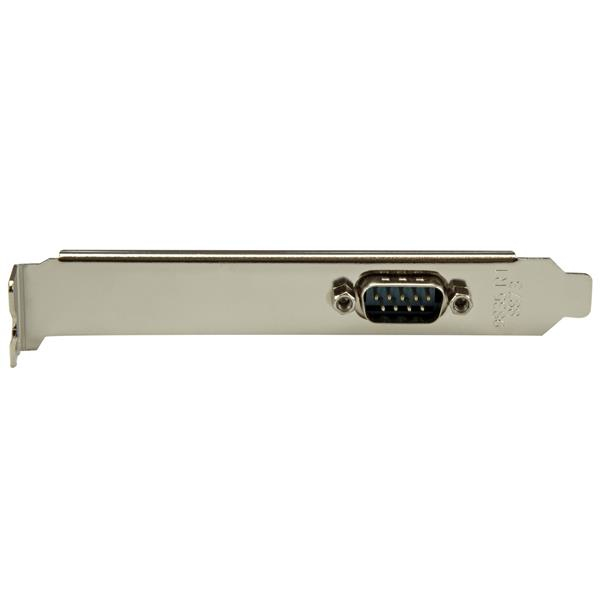

– Standard and low profile/half-height bracket included to ensure fitment in any system
– Extensive list of OS support and Microsoft WHQL certified drivers makes for maximum compatibility and simple installation


Feature Feature Value
Host interface IDC
Output interface Serial
Serial ports quantity 1
Serial interface type RS-232
Internal Y
Product colour Black,Green,Silver
Certification Microsoft WHQL, CE, FCC
Chipset FTDI – FT232RL
Baud rate 115.2 Kbit/s
FIFO (First In, First Out) 256 B
Data bits 7,8
Stop bits 1,2
Operating temperature (T-T) -10 – 85 °C
Storage temperature (T-T) -20 – 100 °C
Operating relative humidity (H-H) 5 – 85%
Windows operating systems supported Windows 10 Education,Windows 10 Education x64,Windows 10 Enterprise,Windows 10 Enterprise x64,Windows 10 Home,Windows 10 Home x64,Windows 10 IOT Core,Windows 10 Pro,Windows 10 Pro x64,Windows 2000,Windows 2000 Professional,Windows 7 Enterprise,Windows 7 Enterprise x64,Windows 7 Home Basic,Windows 7 Home Basic x64,Windows 7 Home Premium,Windows 7 Home Premium x64,Windows 7 Professional,Windows 7 Professional x64,Windows 7 Starter,Windows 7 Starter x64,Windows 7 Ultimate,Windows 7 Ultimate x64,Windows 8,Windows 8 Enterprise,Windows 8 Enterprise x64,Windows 8 Pro,Windows 8 Pro x64,Windows 8 x64,Windows 8.1,Windows 8.1 Enterprise,Windows 8.1 Enterprise x64,Windows 8.1 Pro,Windows 8.1 Pro x64,Windows 8.1 x64,Windows 98SE,Windows CE,Windows Vista Business,Windows Vista Business x64,Windows Vista Enterprise,Windows Vista Enterprise x64,Windows Vista Home Basic,Windows Vista Home Basic x64,Windows Vista Home Premium,Windows Vista Home Premium x64,Windows Vista Ultimate,Windows Vista Ultimate x64,Windows XP Home,Windows XP Home x64,Windows XP Professional,Windows XP Professional x64
Server operating systems supported Windows Server 2003,Windows Server 2008 R2,Windows Server 2012,Windows Server 2012 R2,Windows Server 2016
Width 123 mm
Depth 45 mm
Height 12 mm
Weight 31 g
Mounting brackets included Y
Drivers included Y
Manual Y
Package width 38 mm
Package depth 213 mm
Package height 138 mm
Package weight 200 g
Host interface

IDC

Serial ports quantity

1

Weight

31 g

Chipset

FTDI – FT232RL

Width

123 mm

Mounting brackets included

Y
