StarTech.com 2 Port PCI RS422/485 Serial Adapter Card with 161050 UART

SKU: PCI2S4851050 Category:

StarTech.com 2 Port PCI RS422/485 Serial Adapter Card with 161050 UART

SHARE

Share on facebook
Share on twitter
Share on whatsapp
Share on reddit
Share on linkedin
Share on email

£78.77 £65.64 Ex. VAT

Availability: 3 in stock

Finance/leasing available for orders over £1000 Inc VAT

Free mainland UK shipping on orders over £150 Ex VAT

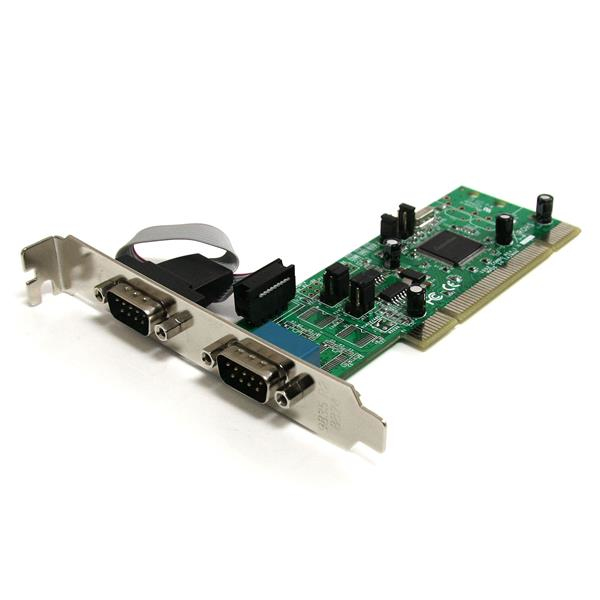

The PCI2S4851050 2-Port PCI Serial Adapter Card (RS422/RS485) with 161050 UART adds two DB9 RS422/RS485 serial ports, using a single PCI expansion slot.

The PCI serial card offers a high performance 16C1050 UART and supports both 2-wire and 4-wire RS485 modes. The card delivers an efficient single-chip design and a large 256-byte transit/receive FIFO buffer that work together to provide high-speed serial communication while reducing the overall load on the system CPU.

With the included standard and low profile/half-height brackets, this PCI serial expansion card suits a broad range of system form factors, and is a perfect addition for connecting RS422/485 serial devices to a host computer. For added versatility, the RS422/RS485 adapter is able to accommodate 3.3 or 5V PCI/PCI-X slots.

Backed by a StarTech.com lifetime warranty and free lifetime technical support.

The StarTech.com Advantage
– Much larger FIFO buffer than standard serial cards (256 byte vs. 32 or 64 byte) minimizes data loss and optimizes host efficiency
– A simple jumper change allows you to select either RS422 or RS485 serial interface formats specific to your application
– Standard and low profile/half-height bracket included, ensuring easy installation into almost any system


Feature Feature Value
Host interface PCI/PCI-X
Output interface Serial
Serial ports quantity 2
Serial interface type RS-422,RS-485
Internal Y
RoHS compliance Y
Certification CE, FCC
Chipset SystemBase -SB16C1052PCI
Baud rate 128 Kbit/s
FIFO (First In, First Out) 256 B
Data bits 5,6,7,8
Stop bits 1,1.5,2
Flow control support Y
Operating temperature (T-T) -10 – 80 °C
Storage temperature (T-T) -20 – 100 °C
Operating relative humidity (H-H) 5 – 85%
Windows operating systems supported Windows 10 Education,Windows 10 Education x64,Windows 10 Enterprise,Windows 10 Enterprise x64,Windows 10 Home,Windows 10 Home x64,Windows 10 Pro,Windows 10 Pro x64,Windows 7 Enterprise,Windows 7 Enterprise x64,Windows 7 Home Basic,Windows 7 Home Basic x64,Windows 7 Home Premium,Windows 7 Home Premium x64,Windows 7 Professional,Windows 7 Professional x64,Windows 7 Starter,Windows 7 Starter x64,Windows 7 Ultimate,Windows 7 Ultimate x64,Windows 8,Windows 8 Enterprise,Windows 8 Enterprise x64,Windows 8 Pro,Windows 8 Pro x64,Windows 8 x64,Windows 8.1,Windows 8.1 Enterprise x64,Windows 8.1 Pro,Windows 8.1 Pro x64,Windows 8.1 x64
Server operating systems supported Windows 2000 Server,Windows Server 2003,Windows Server 2008 R2,Windows Server 2012
Width 15 mm
Depth 120 mm
Height 45 mm
Weight 58 g
Drivers included Y
Manual Y
Package width 145 mm
Package depth 175 mm
Package height 32 mm
Package weight 200 g
Data transfer rate 0.128 Mbit/s
Compatible operating systems Windows 7 (32/64bit)/ Vista(32/64)/ XP(32/64), Windows Server 2008 R2/ 2003(32/64)/ 2000, Linux 2.4.x/ 2.6.x
Host interface

PCI/PCI-X

Serial ports quantity

2

Flow control support

Y

Width

15 mm

Data transfer rate

0.128 Mbit/s

Chipset

SystemBase -SB16C1052PCI

Weight

58 g
