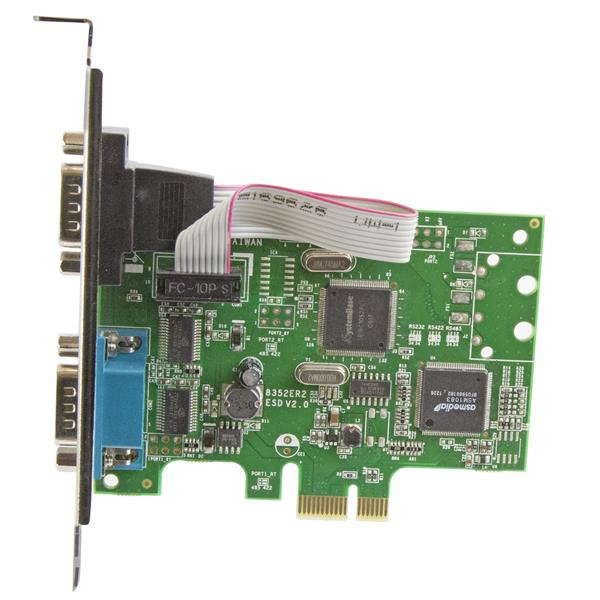

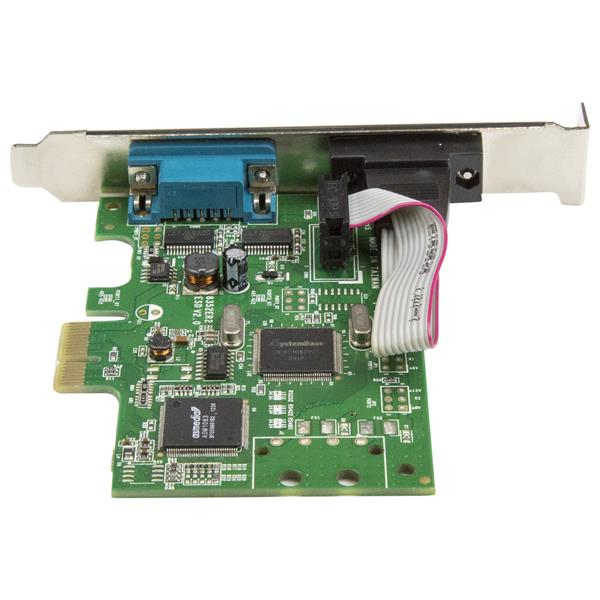

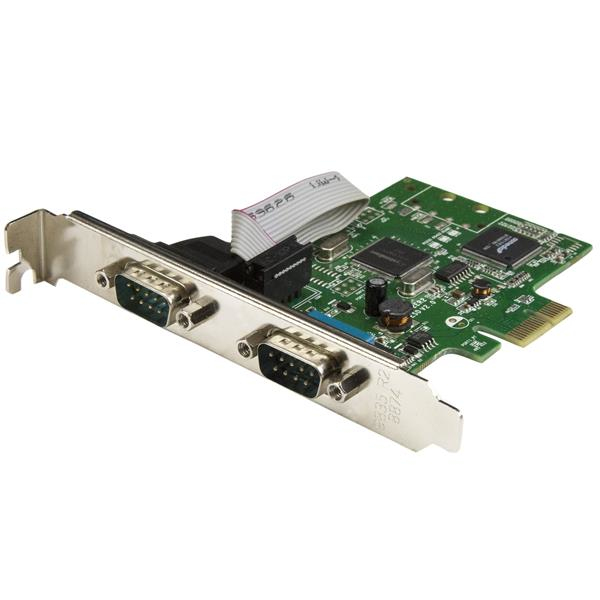

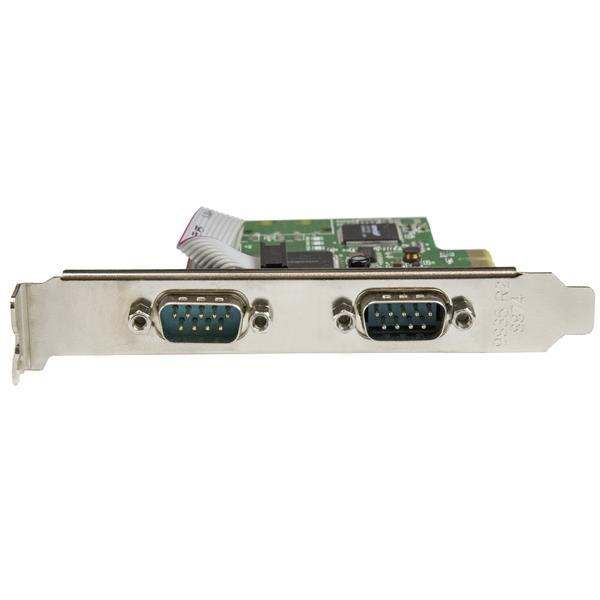

StarTech.com 2-Port PCI Express Serial Card with 16C1050 UART – RS232

* Images are for illustrative purposes only.

£53.63 £44.69 Ex. VAT

Availability: 15 in stock

Finance/leasing available for orders over £1000 Inc VAT

Free mainland UK shipping on orders over £150 Ex VAT

This PCI Express serial card adds two high-performance RS232 serial ports to your desktop computer or server, for connecting your serial-based devices and equipment.

Convenient system upgrades through PCIe
The PCIe serial card can be installed into an available PCI Express slot, to provide two high-performance 16C1050 RS232 serial UART channels/ports. It offers a convenient solution for connecting modern or legacy equipment to newer computer systems that don’t have RS232 ports. The serial card is compliant with PCI Express 1.0a specification, and it’s compatible with 1x, 2x, 4x, 8x and 16x PCI Express slots.

The 2-port PCIe serial card is ideal for system upgrades in a wide range of applications including manufacturing equipment, POS equipment, security devices such as surveillance cameras, card readers or access panels, and environment or building control systems.

High-performance serial communication
The PCIe serial card delivers high-performance serial communication, with support for data transfer rates of up to 460Kbps. The serial card provides CPU load decrease which helps ensure optimal system performance and prevent errors such as overruns by preserving resources. In addition, the dual-channel UART ensures smooth performance, even while both ports are in use.

Easy installation

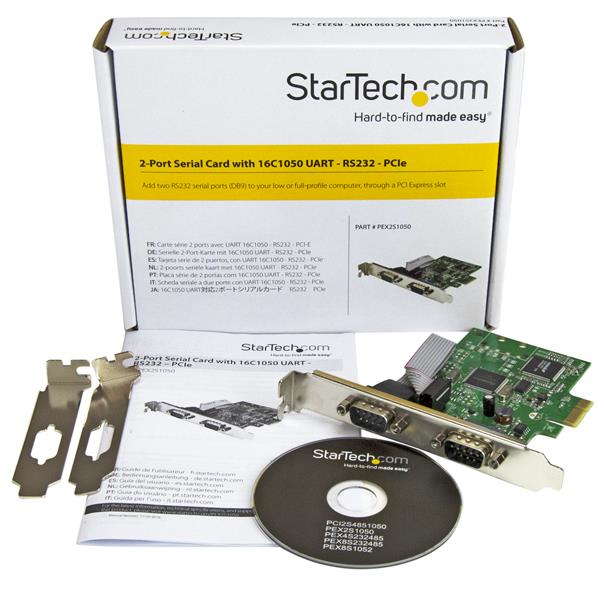

The serial card is easy to install and configure, with support for a broad range of Windows® operating systems. Plus, the card features IRQ sharing and supports plug-and-play serial device connections, guaranteeing convenient, hassle-free installation. It comes with a standard-profile bracket installed, and also includes an optional low-profile bracket.

The PEX2S1050 is backed by a StarTech.com lifetime warranty and free lifetime technical support.


Feature Feature Value
Host interface PCIe
Output interface Serial
Expansion card form factor Full-height / Low-profile
Serial ports quantity 2
Serial interface type RS-232
Internal Y
RoHS compliance Y
Certification CE, FCC, Microsoft WHQL
Chipset SB16C1052PCI
Baud rate 460.8 Kbit/s
FIFO (First In, First Out) 256 B
Data bits 5,6,7,8
Full duplex Y
Flow control support Y
Operating temperature (T-T) -10 – 80 °C
Storage temperature (T-T) -20 – 100 °C
Operating relative humidity (H-H) 5 – 85%
Windows operating systems supported Windows 10 Education,Windows 10 Education x64,Windows 10 Enterprise,Windows 10 Enterprise x64,Windows 10 Home,Windows 10 Home x64,Windows 10 Pro,Windows 10 Pro x64,Windows 7 Enterprise,Windows 7 Enterprise x64,Windows 7 Home Basic,Windows 7 Home Basic x64,Windows 7 Home Premium,Windows 7 Home Premium x64,Windows 7 Professional,Windows 7 Professional x64,Windows 7 Starter,Windows 7 Starter x64,Windows 7 Ultimate,Windows 7 Ultimate x64,Windows 8,Windows 8 Enterprise,Windows 8 Enterprise x64,Windows 8 Pro,Windows 8 Pro x64,Windows 8 x64,Windows 8.1,Windows 8.1 Enterprise,Windows 8.1 Enterprise x64,Windows 8.1 Pro,Windows 8.1 Pro x64,Windows 8.1 x64,Windows 95,Windows 98SE,Windows ME,Windows Vista Business,Windows Vista Business x64,Windows Vista Enterprise,Windows Vista Enterprise x64,Windows Vista Home Basic,Windows Vista Home Basic x64,Windows Vista Home Premium,Windows Vista Home Premium x64,Windows Vista Ultimate,Windows Vista Ultimate x64,Windows XP Home,Windows XP Home x64,Windows XP Professional,Windows XP Professional x64
Linux operating systems supported Y
Width 120 mm
Depth 103 mm
Height 20 mm
Weight 61 g
Mounting brackets included Y
Drivers included Y
Quick installation guide Y
Package width 145 mm
Package depth 173 mm
Package height 30 mm
Package weight 149 g
Host interface

PCIe

Chipset

SB16C1052PCI

Full duplex

Y

Weight

61 g

Serial ports quantity

2

Flow control support

Y

Width

120 mm

Mounting brackets included

Y
