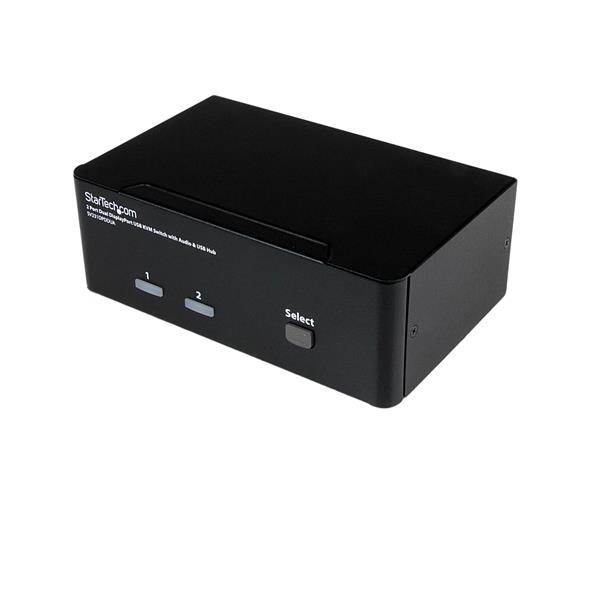

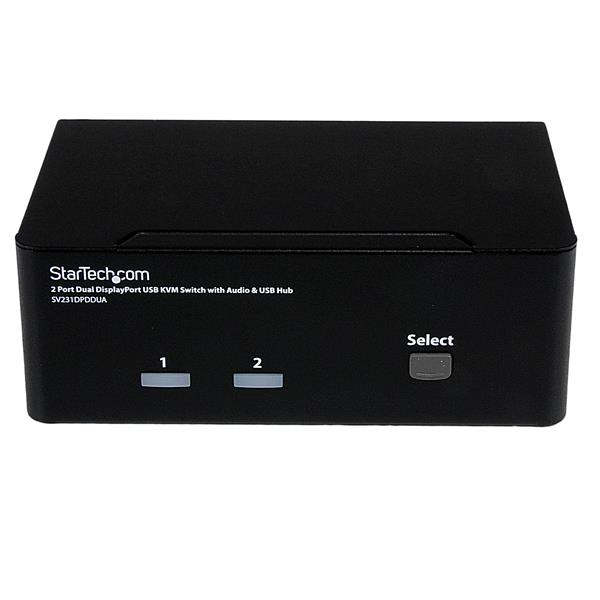

2 Port Dual DisplayPort USB KVM Switch with Audio & USB 2.0 Hub

SKU: SV231DPDDUA Category: 2 Port Dual DisplayPort USB KVM Switch with Audio & USB 2.0 Hub


Share on facebook
Share on twitter
Share on whatsapp
Share on reddit
Share on linkedin
Share on email

£235.98 £196.65 Ex. VAT

Availability: 62 in stock

Finance/leasing available for orders over £1000 Inc VAT

Free mainland UK shipping on orders over £150 Ex VAT

Control 2 high-resolution dual DisplayPort computers with a single console

The SV231DPDDUA 2-Port USB Dual DisplayPort KVM Switch with Audio and USB 2.0 Hub combines next generation digital display standards with seamless KVM control, allowing you to switch between 2 dual head or twin DisplayPort systems. Also ideal for systems with a single DisplayPort output, and a second video source such as DVI or HDMI, using a low cost accessory adapter.

Delivering multi-computer control for high-res multimedia applications, the dual view KVM supports resolutions of 2560×1600 (@60 Hz) with DisplayPort HD audio, as well as 2-channel analog stereo audio and microphone input.

Suitable for high quality static imaging, such as medical applications (MRI, X-ray, etc.), a maximum resolution of 3840×2400 is supported at reduced refresh rates.

This product is TAA compliant and backed by a 3-year warranty with free lifetime technical support.

The Advantage

– Versatile audio support via digital DisplayPort HD multi-channel audio or 3.5mm stereo analog audio
– Integrated USB 2.0 hub provides peripheral sharing to eliminate the expense of duplicate devices (printers, scanners, etc.)
– Versatile KVM solution works well with Mini-DisplayPort, DisplayPort to DVI or HDMI adapters; perfect for Dual DisplayPort or DisplayPort + DVI or HDMI video output, including Macbook connectivity

Feature Feature Value
Number of computers controlled 2
Keyboard port type USB
Mouse port type USB
Video port type DisplayPort
Console ports 3.5mm headphone,3.5mm mic,DisplayPort,USB A
DisplayPorts quantity 6
Console USB ports quantity 2
USB hub Y
USB connector type USB Type-A
Audio connections Y
Headphone outputs 3
Number of microphone inputs 3
DC-in jack Y
Ethernet LAN N
HD type 4K Ultra HD
Maximum resolution 3840 x 2400 pixels
DDC2B support Y
Hot-Plug support Y
Daisy chain N
Number of users 1 user(s)
Rack mounting N
Product colour Black
Housing material Steel
LED indicators Y
Push button Y
Hot keys Y
RoHS compliance Y
Certification CE, FCC, REACH, TAA
Built-in display N
On Screen Display (OSD) N
AC input voltage 110 – 240 V
Input current 0.8 A
Output voltage 12 V
Output current 1.5 A
Power consumption (typical) 18 W
External power adapter Y
Power plug type Type M
Compatible power plug types AU,EU,UK,US
Operating temperature (T-T) 0 – 40 °C
Storage temperature (T-T) 20 – 60 °C
Operating relative humidity (H-H) 0 – 80%
Width 161 mm
Depth 100 mm
Height 57.5 mm
Weight 734 g
Package width 249 mm
Package depth 187 mm
Package height 100 mm
Package weight 1.2 kg
Manual Y
Audio channels 7.1
Audio support Y
IP control N
