1U Fixed 19" Adjustable Depth Universal Server Rack Rails

SKU: UNIRAILS1U Category: 1U Fixed 19" Adjustable Depth Universal Server Rack Rails


Share on facebook
Share on twitter
Share on whatsapp
Share on reddit
Share on linkedin
Share on email

£61.91 £51.59 Ex. VAT

Availability: 1 in stock

Finance/leasing available for orders over £1000 Inc VAT

Free mainland UK shipping on orders over £150 Ex VAT

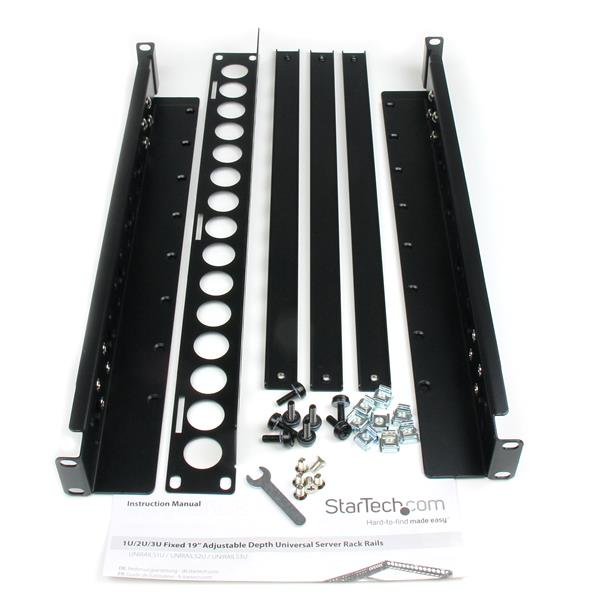

The UNIRAILS1U 1U Fixed 19-inch Adjustable Depth Universal Server Rack Rails enable you to fit non-rack mountable equipment (weight up to 25kg/55lbs.) into a standard 19-inch rack. This TAA compliant product adheres to the requirements of the US Federal Trade Agreements Act (TAA), allowing government GSA Schedule purchases.

Featuring sturdy, cold-rolled steel construction, adjustable depth configurations for varying rack sizes, horizontal equipment supports, and multiple mounting hole patterns to secure your equipment, this durable 19″ rack rails kit makes mounting your non-rackmount equipment quick and easy!

Backed by a Lifetime warranty.

The Advantage
– Universal design mounts to almost any 19″ server, or other equipment for maximum mounting versatility
– Three-piece rail construction allows for a wide range, adjustable depth configuration to accommodate almost any size of rack
– Cross bars allow for mounting of equipment that can’t span the 19″ rack expanse

Feature Feature Value
Type Rack rail
Product colour Black
Housing material Steel
Maximum weight capacity 25 kg
Rack capacity 1U
RoHS compliance Y
Certification CE, UL
Size 48.3 cm (19″)
Width 465 mm
Depth 481 mm
Height 60 mm
Mounting depth (min) 42 cm
Mounting depth (max) 105.4 cm
Weight 2.6 kg
Package width 105 mm
Package depth 500 mm
Package height 75 mm
Package weight 2.9 kg
Mounting kit Y
Screws included Y

Rack rail

Rack capacity



465 mm

Mounting kit



48.3 cm (19")


2.6 kg
