SKU: WALLMOUNTH1 Category: 1U 19in Hinged Wall Mounting Bracket for Patch Panels

* Images are for illustrative purposes only.

£18.05 £15.04 Ex. VAT

Availability: 4 in stock

Finance/leasing available for orders over £1000 Inc VAT

Free mainland UK shipping on orders over £150 Ex VAT

Wall mount a patch panel or network switch while providing hinged access to the back of the device

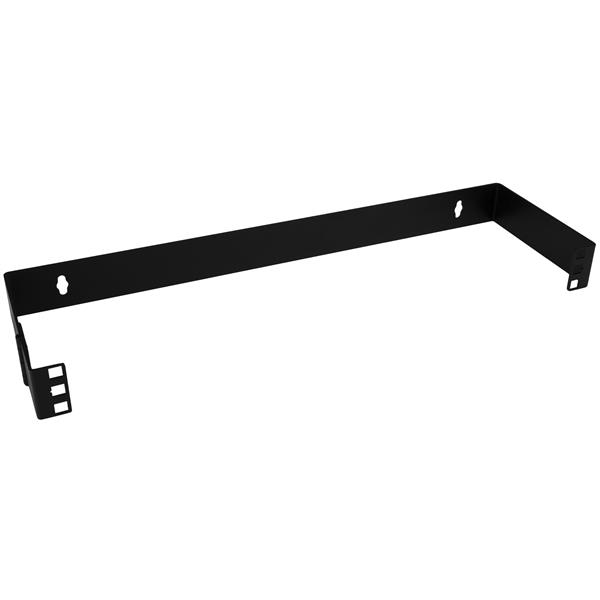

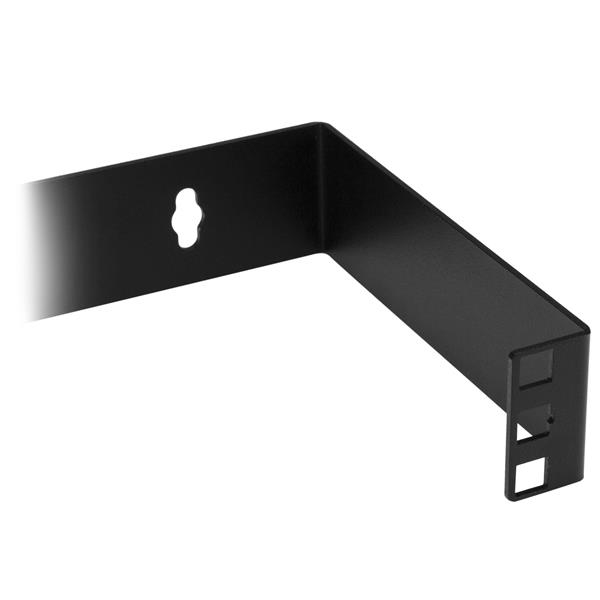

The WALLMOUNTH1 1U 19in Hinged Wall Mounting Bracket for Patch Panels is 4in deep and sturdily designed to provide a dependable solution for mounting a patch panel, or other slim 19in networking equipment to a wall.

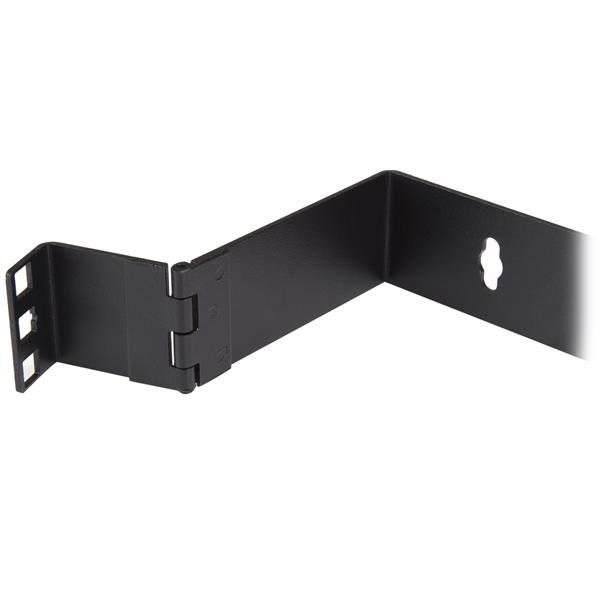

The patch panel wall mount features a hinged design for easy access to configuration buttons, ports and cables. The wall mounting holes are spaced 16 in. apart, making it suitable for mounting on almost any wall, based on common wall-frame stud spacing.

Backed by a 2-year warranty.

The Advantage

– Hinged side panel allows for easy access to the rear of the mounted equipment for easy adjustment

Feature Feature Value
Rack capacity 1U
Type Wall mounted rack
Maximum weight capacity 8 kg
Product colour Black
Material Steel
Frame type Open
Design 2-post
Cable management N
Mounting hole shape Square
Castor wheels N
Certification RoHS
Size 48.3 cm (19″)
Width 501 mm
Depth 152 mm
Height 44 mm
Mounting depth (min) 15.2 cm

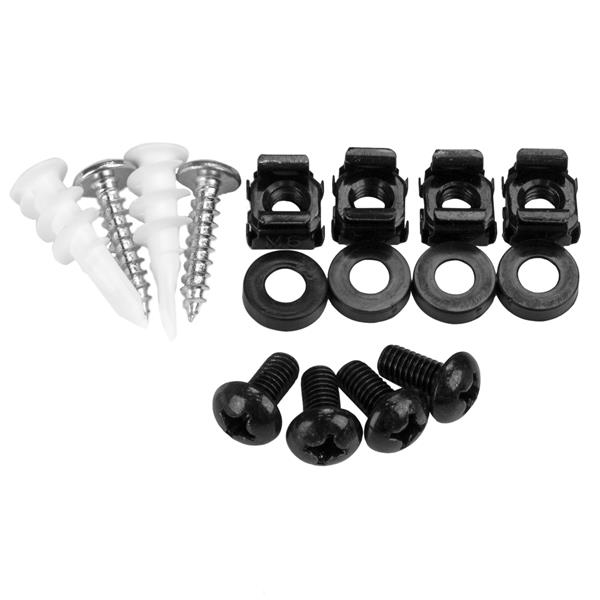

Nuts included Y
Number of nuts 4
Screws included Y
Number of screws 6
Package width 194 mm
Package depth 518 mm
Package height 54 mm
Package weight 500 g
Compliance industry standards EIA-310-D
Rack capacity







501 mm


Wall mounted rack


48.3 cm (19")
