SKU: RK1820WALHM Category: 18U Wall-Mount Server Rack Cabinet – 20 in. Deep – Hinged

* Images are for illustrative purposes only.

£563.63 £469.69 Ex. VAT

Free UK Shipping Available*

Availability: 5 in stock

Finance/leasing available for orders over £1000 Inc VAT

Free mainland UK shipping on orders over £150 Ex VAT

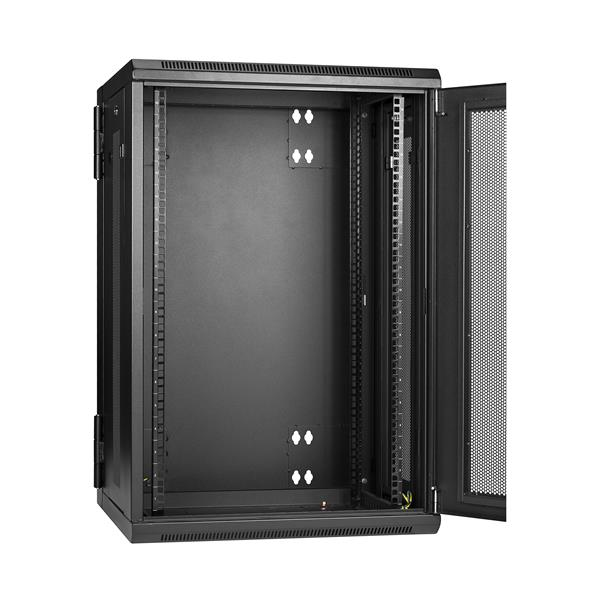

Use this wall-mount network cabinet to mount your server or networking equipment to the wall, with a hinged enclosure for easy access

This 18U server or network rack cabinet lets you mount your EIA-310 compliant equipment to the wall, in a secure enclosure that has a hinged rear door for easy access to your equipment. The enclosure features adjustable mounting depth from 2.4 to 20 in. to provide a robust storage solution for your rack-mount equipment.

To provide secure stability for your heaviest equipment, this rack offers 4-post mounting, supporting a higher weight capacity per U than 2-post racks and supporting a total load capacity of up to 200 lb. (90 kg).

Save space in your office or server room

Save valuable floor space by wall-mounting the enclosure. The wall-mounted design makes this enclosure the ideal solution for optimizing equipment storage in your classroom, retail store, server room or office. This rack also includes a 1U shelf that gives you a stable surface for placing equipment that’s not rack-mountable or storing your tools.

Easily access your servers and network equipment

The wall-mount network rack makes it easy to access your equipment and cabling, with a rear hinge that swings the enclosure away from the wall. By flipping the enclosure 180 degrees upon installation, you can reverse the direction of the hinge so that the enclosure can swing open from left or the right, depending on your preference.

The 18U network cabinet features a removable and reversible front door and removable side panels, each with quick-release mechanisms, so you can easily access your equipment. Plus, each door and panel on this rack features an independent lock, ensuring your equipment is secure.

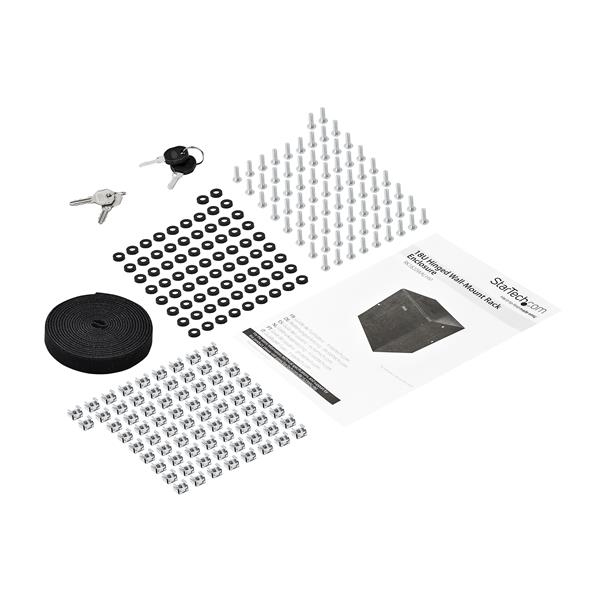

For hassle-free cable management, the rack includes a 3 meter roll of hook-and-loop cable tie that makes it easy to keep your cables neat and tidy by binding them together or binding them to the rack. The self-gripping fabric can be cut to any size, enabling a wrap-around solution for the cables of any rack-mount equipment.

Securely protect your equipment

This server rack enclosure features heavy-duty steel construction, with lockable doors at all entrances. For hassle-free equipment installation, the mounting rails on the rack can be switched for use with square holes and cage nuts, or tapped rails.

To ensure your equipment is running at an optimal temperature, the server rack/cabinet promotes passive cooling. It features mesh doors and vented top and bottom panels for maximum airflow.

For simple and sturdy mounting, the rack’s mounting holes are positioned 16 in. apart, so you can securely attach it to a wall using wall studs.

The RK1820WALHM is backed by a 5-year warranty and free lifetime technical support.

The Advantage

– Save space by wall-mounting your servers or networking equipment
– Hassle-free access with a hinged cabinet
– Secure your mission-critical equipment with a locked enclosure

Feature Feature Value
Rack capacity 18U
Type Wall mounted rack
Maximum weight capacity 90 kg
Product colour Black
Material Steel
Frame type Closed
Design 4-post
Back door construction Steel
Front door construction Steel
Removable front door Y
Front door key lock Y
Certification RoHS
Width 600 mm
Depth 550 mm
Height 903.7 mm
Inner width 536 mm
Inner depth 595 mm
Inner height 89.1 cm
Weight 67.7 kg
Mounting depth (min) 6 cm
Mounting depth (max) 41 cm
Nuts included Y
Number of nuts 72
Screws included Y
Number of screws 72
Manual Y
Package width 1180 mm
Package depth 745 mm
Package height 600 mm
Package weight 68.7 kg
Rack capacity







600 mm


67.7 kg


Wall mounted rack
