StarTech.com 16-Port USB-to-Serial Adapter Hub

Transparent IT Expo — Wednesday 1st March 2023

SKU: ICUSB23216FD Category:

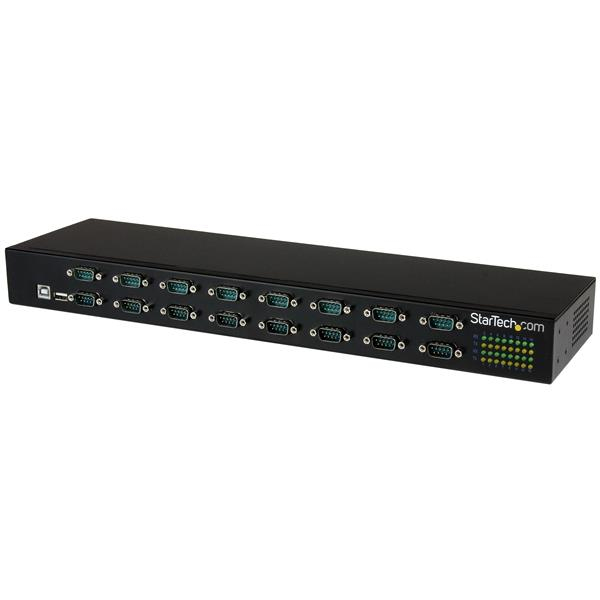

StarTech.com 16-Port USB-to-Serial Adapter Hub

* Images are for illustrative purposes only.
Share on facebook
Share on twitter
Share on whatsapp
Share on linkedin
Share on email

£498.41 £415.34 Ex. VAT

Free UK Shipping Available*

Availability: 4 in stock

Finance/leasing available for orders over £1000 Inc VAT

Free mainland UK shipping on orders over £150 Ex VAT

Here’s an easy and cost-efficient way to add RS232 serial capability to your industrial setting. This 16-port USB-to-serial adapter hub features a sturdy, rack-mountable chassis, and supports daisy chaining, so you can connect multiple hubs together to increase your serial device port count.

A scalable solution for changing needs
This rack-mountable USB serial hub (FTDI) lets you add 16 serial ports (RS232), with full control from your desktop or laptop computer system using a single USB port. The daisy-chain function gives you a cost-effective and scalable way to increase your serial port count and expand as your needs grow, without investing in a higher cost serial hub.

Providing full control of your serial components from a single device, the USB serial hub is ideal for a multitude of applications including: industrial automation, self-serve automated kiosks, and monitoring of cameras and security systems.

Built-in convenience
The hub features COM port retention, which retains the assigned serial COM port values. This ensures that the same values are automatically re-assigned to the port provided by the adapter, in the event it is disconnected and re-connected to the host computer.

The hub features a reliable FTDI USB-to-serial chipset, which provides easy installation into a broad range of operating systems.

Meets the demands of industrial environments
With its all-metal chassis, this rugged, rack-mountable hub fits into standard 19-inch server storage racks to provide an efficient industrial serial solution. It supports an extended operating temperature range of -40°C to 85°C (-40°F to 185°F), ensuring reliable performance even in the harshest environments. The USB-serial hub includes both an AC adapter and terminal block power, providing versatile power options.

The ICUSB23216FD is backed by a StarTech.com 2-year warranty and free lifetime technical support.


Feature Feature Value
Ports quantity 16
Host interface USB 2.0 Type-B
Hub interfaces Serial
RS-232 ports 16
Terminal block port Y
DC-in jack Y
Data transfer rate 480 Mbit/s
Product colour Black
Housing material Steel
LED indicators Y
Certification CE. FCC. RoHS
Power consumption (max) 36 W
Input voltage 100 – 240 V
Input current 1.5 A
Output voltage 12 V
Output current 3 A
Power plug type Type N
Windows operating systems supported Windows 10,Windows 10 Education,Windows 10 Education x64,Windows 10 Enterprise,Windows 10 Enterprise x64,Windows 10 Home,Windows 10 Home x64,Windows 10 Pro,Windows 10 Pro x64,Windows 10 x64,Windows 2000,Windows 7,Windows 7 Enterprise,Windows 7 Enterprise x64,Windows 7 Home Basic,Windows 7 Home Basic x64,Windows 7 Home Premium,Windows 7 Home Premium x64,Windows 7 Professional,Windows 7 Professional x64,Windows 7 Starter,Windows 7 Starter x64,Windows 7 Ultimate,Windows 8,Windows 8 Enterprise,Windows 8 Enterprise x64,Windows 8 Pro,Windows 8 Pro x64,Windows 8 x64,Windows 98SE,Windows CE,Windows Vista,Windows Vista Business,Windows Vista Business x64,Windows Vista Enterprise,Windows Vista Enterprise x64,Windows Vista Home Basic,Windows Vista Home Basic x64,Windows Vista Home Premium,Windows Vista Home Premium x64,Windows Vista Ultimate,Windows Vista Ultimate x64,Windows Vista x64,Windows XP,Windows XP Home,Windows XP Home x64,Windows XP Professional,Windows XP Professional x64
Mac operating systems supported Mac OS X 10.10 Yosemite,Mac OS X 10.11 El Capitan,Mac OS X 10.12 Sierra,Mac OS X 10.13 High Sierra,Mac OS X 10.14 Mojave,Mac OS X 10.9 Mavericks
Linux operating systems supported Y
Server operating systems supported Windows Server 2003,Windows Server 2008 R2,Windows Server 2012,Windows Server 2012 R2,Windows Server 2016
Other operating systems supported Windows XP Embedded
Width 120 mm
Depth 430 mm
Height 45 mm
Weight 1.55 kg
Package width 215 mm
Package depth 450 mm
Package height 60 mm
Package weight 2.3 kg
AC adapter included Y
Included power plug types AU,EU,NA,UK
Cables included USB
Quick installation guide Y
Operating temperature (T-T) -40 – 85 °C
Storage temperature (T-T) -65 – 150 °C
Operating relative humidity (H-H) 20 – 80%
Rack mounting Y
Chipset FTDI – FT232RL
Ports quantity

16

Hub interfaces

Serial

Data transfer rate

480 Mbit/s

Width

120 mm

Chipset

FTDI – FT232RL

Host interface

USB 2.0 Type-B

Weight

1.55 kg

Rack mounting

Y
