16 Port 1U Rackmount USB KVM Switch with OSD

SKU: SV1631DUSBU Category: 16 Port 1U Rackmount USB KVM Switch with OSD

* Images are for illustrative purposes only.
Share on facebook
Share on twitter
Share on whatsapp
Share on linkedin
Share on email

£593.00 £494.17 Ex. VAT

Availability: 2 in stock

Finance/leasing available for orders over £1000 Inc VAT

Free mainland UK shipping on orders over £150 Ex VAT

Control up to 16 USB computers from a single keyboard, mouse and monitor

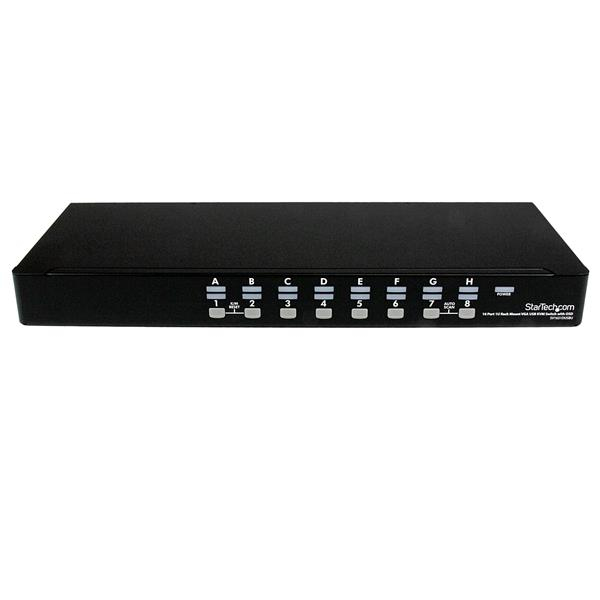

The SV1631DUSBU 16 Port 1U Rack Mountable USB KVM Switch with OSD lets you control 16 USB computers from a single console (USB keyboard, USB mouse, VGA monitor).
Convenient push-button and hot-key controls provide quick, reliable switching between connected computers while manual and auto-scan switching modes and an On Screen Display (OSD) offer additional control options.
Designed to ensure maximum space efficiency, the USB KVM switch features a slim 1U design that fits neatly into a server equipment rack/cabinet with the included brackets, and can be cascaded with multiple KVM switches to deliver control of up to 136 computers from this single switch. Rear cable connections help to eliminate cable tangles and minimize workspace disruption.
Backed by a 3-year warranty and free lifetime technical support.
The Advantage
– Extracting the keyboard strokes from the USB connection this KVM enables hot key support for wireless keyboard and mouse combo kits that use a single USB receiver
– On Screen Display adds the ability to rename connected computers for easy identification and provides per-port password security
– Supports cascading with other KVM switches for one spot control of up to 136 computers

Feature Feature Value
Number of computers controlled 16
Keyboard port type USB
Mouse port type USB
Video port type VGA
Console ports USB A,VGA (D-Sub)
Console USB ports quantity 2
Audio connections N
DC-in jack Y
Maximum resolution 1920 x 1440 pixels
Plug and Play Y
Daisy chain Y
Rack mounting Y
Product colour Black
Rack capacity 1U
Housing material Steel
LED indicators Y
Built-in display N
AC input voltage 110-240 V
Input current 0.8 A
Output current 1.5 A
Power plug type Type M
Operating temperature (T-T) 5 – 40 °C
Storage temperature (T-T) -20 – 60 °C
Operating relative humidity (H-H) 5 – 80%
Width 540 mm
Depth 180 mm
Height 45 mm
Weight 3.1 kg
Package width 89 mm
Package depth 468 mm
Package height 264 mm
Package weight 3.53 kg
Manual Y
AC adapter included Y
Output voltage 12 V
Audio support N
IP control N
Mouse port type


Maximum resolution

1920 x 1440 pixels


540 mm

IP control


Keyboard port type


Video port type


Rack mounting


Rack capacity



3.1 kg
