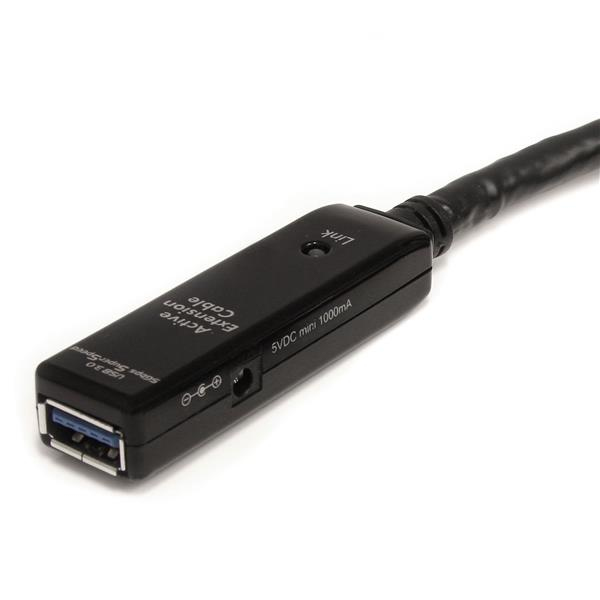

The USB3AAEXT10M, 10-meter Active USB 3.0 Extension Cable, offers one USB type-A (male) connector and one USB type-A (female) connector, and provides an active extension of USB 3.0 devices of up to 10-meters (32.8-feet).

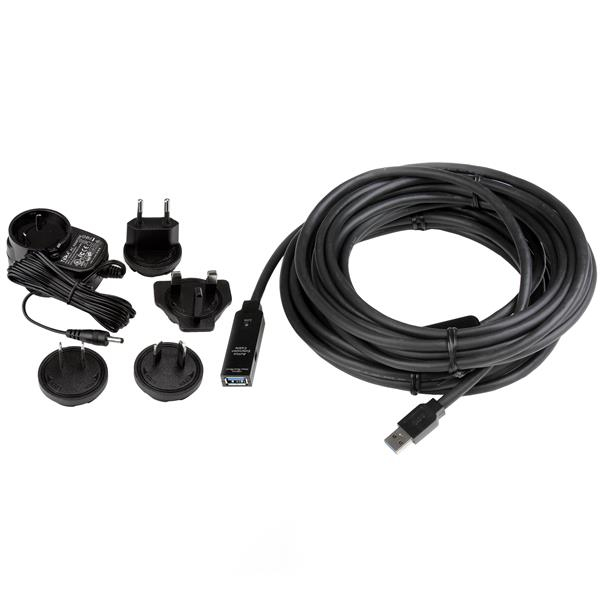

An all-in-one cable for overcoming distance restrictions as well as power source limitations; the active USB 3.0 extension cable incorporates bus-powered active circuitry to ensure performance beyond the length limits of standard USB cables. Up to 2 of these cables can be daisy-chained together, allowing the connection to be extended a total of 20-meters. If necessary, the USB device can be powered from a wall outlet using the Universal AC power adapter provided with the cable.
The USB3AAEXT10M extension cable (USB Extender) supports high speed USB 3.0 transfer rates of up to 5Gbps, and is backed by StarTech.com’s 2-year Warranty.
The StarTech.com Advantage
– Extends a USB 3.0 device connection by an additional 10m (33ft) or cascade up to 2 levels for 20m (65ft)
– Powered directly from the USB port or through the included Universal external power adapter
– Backed by a StarTech.com 2-year warranty and free lifetime technical support
Feature | Feature Value |
---|---|
Cable length | 10 m |
USB version | 3.0 (3.1 Gen 1) |
Connector 1 | USB A |
Connector 2 | USB A |
Connector 1 gender | Male |
Connector 2 gender | Female |
Connector 1 form factor | Straight |
Connector 2 form factor | Straight |
Product colour | Black |
Connector gender | Male connector / Female connector |
Connector contacts plating | Nickel |
Reversible connectors | N |
Cable jacket material | Polyvinyl chloride (PVC) |
Maximum data transfer rate | 5000 Mbit/s |
Plug and Play | Y |
Windows operating systems supported | Windows 7 Enterprise,Windows 7 Enterprise x64,Windows 7 Home Basic,Windows 7 Home Basic x64,Windows 7 Home Premium,Windows 7 Home Premium x64,Windows 7 Professional,Windows 7 Professional x64,Windows 7 Starter,Windows 7 Starter x64,Windows 7 Ultimate,Windows 7 Ultimate x64,Windows 8,Windows 8 Enterprise,Windows 8 Enterprise x64,Windows 8 Pro,Windows 8 Pro x64,Windows 8 x64,Windows Vista Business,Windows Vista Business x64,Windows Vista Enterprise,Windows Vista Enterprise x64,Windows Vista Home Basic,Windows Vista Home Basic x64,Windows Vista Home Premium,Windows Vista Home Premium x64,Windows Vista Ultimate,Windows Vista Ultimate x64,Windows XP Home,Windows XP Home x64,Windows XP Professional,Windows XP Professional x64 |
Mac operating systems supported | Y |
RoHS compliance | Y |
Certification | CE, FCC |
Output voltage | 5 V |
Output current (max) | 2 A |
Weight | 707 g |
Package width | 215 mm |
Package depth | 225 mm |
Package height | 60 mm |
Package weight | 1 kg |
LED indicators | Y |
