Convert and extend a Gigabit Ethernet connection up to 24.8 miles/40km over Single Mode LC fiber

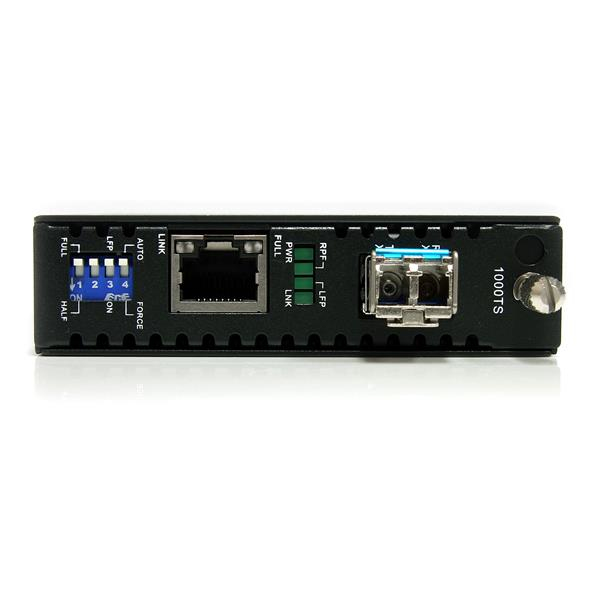

The ET1000S40LC2 1000 Mbps Gigabit Single-Mode Fiber Media Converter (LC, 40 km) enables you to extend a Gigabit Ethernet network over single-mode fiber, at distances up to 40km (25 miles).
A cost-effective solution for connecting a Gigabit Ethernet (1000Base-T) network to remote network segments over a (1000Base-LX/SX) fiber backbone, the GbE to SM fiber converter supports full Gigabit speeds for ideal network performance and scalability. Designed to offer a durable and convenient Ethernet to fiber solution, the Ethernet to LC Fiber converter features an all-steel chassis, and a simple plug-and-play installation with minimal configuration required.
For added versatility, this fiber media converter supports standalone operation, or installation into the 20 Slot, 2U Rackmount Chassis (ETCHS2U).
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
– Link loss forwarding, remote monitoring of status ensures maximum up-time
– Provides Ethernet to Fiber conversion as a standalone device, or can be installed into the ETCHS2U 20 slot chassis for added versatility
– Rugged steel casing for added durability in harsh environments
– Cost-effective way to extend/bridge networks using fiber cabling
|Maximum data transfer rate||2000 Mbit/s|
|Converter input interface||1000Base-T|
|Converter output interface||1000Base-LX,1000Base-SX|
|Ethernet interface type||Gigabit Ethernet|
|Ethernet LAN data rates||10,100,1000 Mbit/s|
|Fiber optic connector||LC|
|Ethernet LAN (RJ-45) ports||1|
|Fiber ports quantity||1|
|Maximum transfer distance||40000 m|
|Fiber mode structure||Single-mode|
|Mean time between failures (MTBF)||65000 h|
|Output voltage||12 V|
|Output current||1 A|
|External power adapter||Y|
|Plug and Play||Y|
|Operating temperature (T-T)||0 – 60 °C|
|Storage temperature (T-T)||-10 – 70 °C|
|Operating relative humidity (H-H)||10 – 90%|
|Package width||135 mm|
|Package depth||203 mm|
|Package height||90 mm|
|Package weight||700 g|
|Dimensions (WxDxH)||95 x 160 x 20 mm|
