SKU: ET90110ST2 Category: 10/100 Mbps Multi Mode Fiber Media Converter ST 2 km

* Images are for illustrative purposes only.

£85.27 £71.06 Ex. VAT

Availability: 48 in stock

Finance/leasing available for orders over £1000 Inc VAT

Free mainland UK shipping on orders over £150 Ex VAT

Convert and extend a 10/100 Mbps Ethernet connection up to 1.2 miles/2km over Multi Mode ST fiber

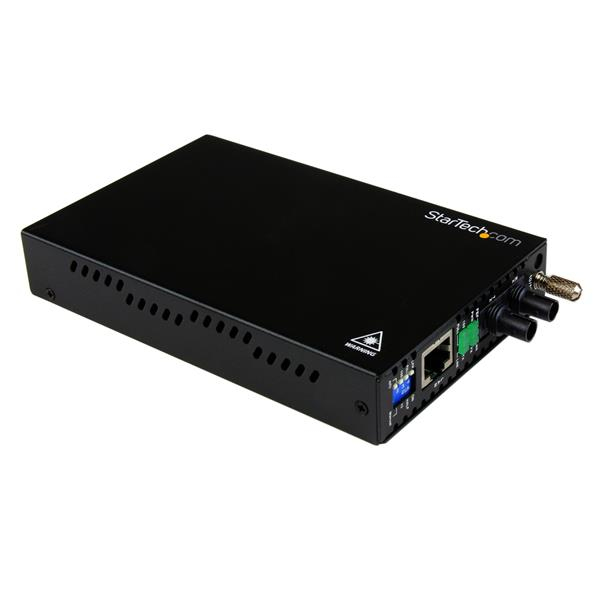

The ET90110ST2 10/100 Mbps Multimode Fiber Media Converter (ST, 2 km) lets you extend a Fast Ethernet network (10/100 Mbps) over multimode fiber, at distances of up to 2 km (1.2 miles).
A cost-effective solution for connecting a 10/100 Mbps Ethernet (10/100Base-T) network to remote network segments over a 100Base-FX fiber backbone. Designed to offer a durable and convenient Ethernet to fiber solution, the Ethernet to ST Fiber converter features an all-steel chassis, and a simple plug-and-play installation with minimal configuration required.

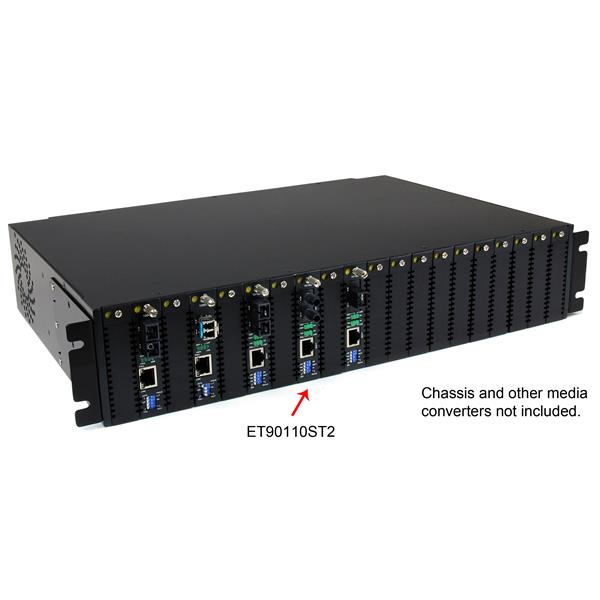

For added versatility, this fiber media converter supports standalone operation, or installation into the 20 Slot, 2U Rackmount Chassis (ETCHS2U).
Backed by a 2-year warranty and free lifetime technical support.
The Advantage
– Link loss forwarding, remote status monitoring help ensure maximum up-time
– Provides Ethernet to Fiber conversion as a standalone device, or can be installed into the ETCHS2U 20 slot chassis for added versatility
– Rugged steel casing for durability in harsh environments

Feature Feature Value
Maximum data transfer rate 200 Mbit/s
Converter input interface 10Base-T
Converter output interface 100Base-FX
Ethernet interface type Fast Ethernet
Ethernet LAN data rates 10,100 Mbit/s
Duplex system Full,Half
Fiber optic connector ST
Connectivity technology Wired
Ethernet LAN (RJ-45) ports 1
Fiber ports quantity 1
DC-in jack Y
Maximum transfer distance 2000 m
Wavelength 1310 nm
Fiber mode structure Multi-mode
Internal N
Product colour Black
RoHS compliance Y
Certification CE, FCC
Output voltage 12 V
Output current 1 A
External power adapter Y
Plug and Play Y
Weight 600 g
Operating temperature (T-T) 0 – 60 °C
Storage temperature (T-T) -10 – 70 °C
Operating relative humidity (H-H) 10 – 90%
Package width 135 mm
Package depth 203 mm
Package height 90 mm
Package weight 700 g
Manual Y
Dimensions (WxDxH) 95 x 160 x 20 mm
Full duplex Y
Maximum data transfer rate

200 Mbit/s

Ethernet LAN data rates

10,100 Mbit/s

Duplex system


Fiber ports quantity


Maximum transfer distance

2000 m

Fiber mode structure


Fiber optic connector


Ethernet LAN (RJ-45) ports



600 g

Full duplex
