Convert and extend a 10/100 Mbps Ethernet connection up to 1.2 miles/2km over Multi Mode SC fiber

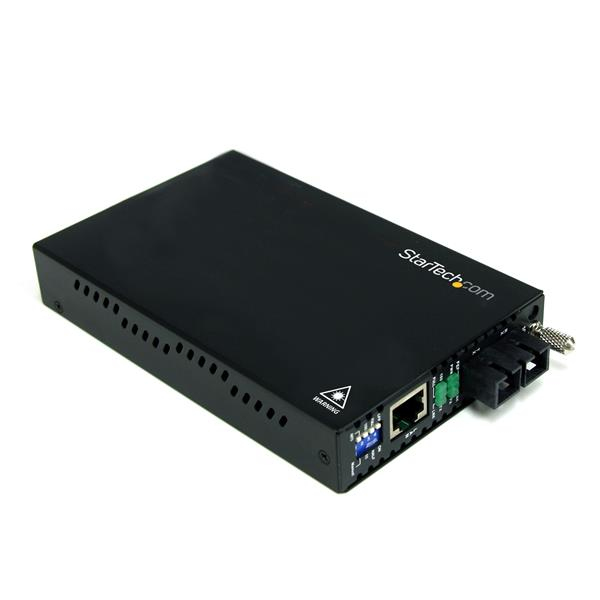

The ET90110SC2 10/100 Mbps Multimode Fiber Media Converter SC (2 km) lets you extend a Fast Ethernet network (10/100Mbps) over multimode fiber, at distances up to 2 km (1.2 miles).
A cost-effective solution for connecting a 10/100 Mbps Ethernet (10/100Base-T) network to remote network segments over a 100Base-FX fiber backbone, the media converter is designed to offer a durable and convenient Ethernet-to-fiber solution, featuring an all-steel chassis, and a simple plug-and-play installation with minimal configuration required.

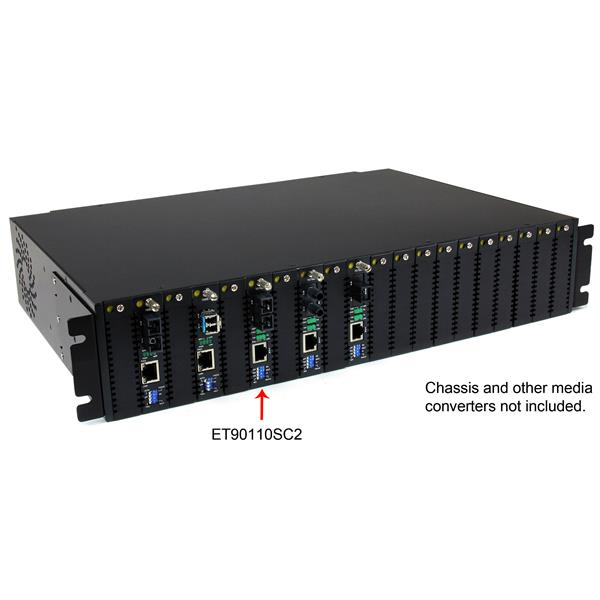

For added versatility, this fiber media converter supports standalone operation, or installation into the 20 Slot, 2U Rackmount Chassis (ETCHS2U).
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
– Link loss forwarding, remote status monitoring help ensure maximum up-time
– Provides Ethernet to Fiber conversion as a standalone device, or can be installed into the ETCHS2U 20 slot chassis for added versatility
– Rugged steel casing for durability in harsh environments
|Maximum data transfer rate||200 Mbit/s|
|Networking standards||IEEE 802.3,IEEE 802.3u|
|Fiber optic connector||SC|
|Ethernet LAN (RJ-45) ports||1|
|Fiber ports quantity||1|
|Maximum transfer distance||2000 m|
|Wavelength-division multiplexing (WDM)||N|
|Fiber mode structure||Multi-mode|
|Input voltage||100 – 240 V|
|Output voltage||12 V|
|Output current||1.6 A|
|Power over Ethernet (PoE)||N|
|Power plug type||Type M|
|Package width||135 mm|
|Package depth||203 mm|
|Package height||90 mm|
|Package weight||900 g|
|AC adapter included||Y|
|Dimensions (WxDxH)||95 x 160 x 20 mm|
