StarTech.com 1 Port USB to Null Modem RS232 DB9 Serial DCE Adapter Cable with FTDI

SKU: ICUSB232FTN Category:

StarTech.com 1 Port USB to Null Modem RS232 DB9 Serial DCE Adapter Cable with FTDI

SHARE

Share on facebook
Share on twitter
Share on whatsapp
Share on reddit
Share on linkedin
Share on email

£22.52 £18.77 Ex. VAT

Availability: 313 in stock

Finance/leasing available for orders over £1000 Inc VAT

Free mainland UK shipping on orders over £150 Ex VAT

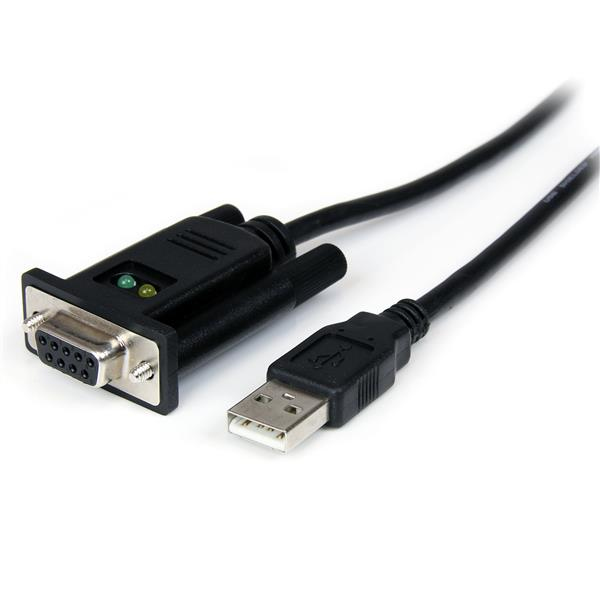

The ICUSB232FTN FTDI USB to Null Modem Serial Adapter Cable (1-Port) converts an available USB 1.1 or 2.0 port into an RS232 Null Modem serial DB9 port, solving DCE/DTE conflicts directly, without requiring additional cross-wired serial cables or adapters.

This compact adapter features COM retention, allowing the same COM port value to automatically be re-assigned to the port if the cable is disconnected and re-connected to the host computer, or if the system is rebooted. The integrated FTDI chipset supports additional customization, advanced features, and compatibility not necessarily offered by other solutions.

The USB to Null Modem adapter is compatible with a broad list of operating systems including Windows®, Windows CE, Mac OS and Linux, making it easier to integrate into mixed environments.

Backed by a StarTech.com 2-year warranty and free lifetime technical support.

The StarTech.com Advantage
– USB to Null Modem serial adapter corrects DTE/DCE conflicts without requiring additional adapters or cables
– The FTDI chipset is highly customizable and broadly compatible, making it the ideal solution for any setup
– Portable USB-Powered design requires no bulky power adapter or outlet


Feature Feature Value
Connector 1 USB
Connector 2 RS-232
Connector gender Male connector / Female connector
Cable length 1.7 m
Product colour Black
Housing material Plastic
Chipset FTDI – FT232RL
Data bits 7,8
Stop bits 1,2
Baud rate 921.6 Kbit/s
Parity bit Even,Mark,N,Odd,Space
FIFO (First In, First Out) 256 B
RoHS compliance Y
Certification CE, FCC, TAA
Compatible operating systems – Windows CE (4.2, 5.0, 6.0), XP Embedded, 98SE, 2000, XP, Vista, 7, 8, 8.1, 10n- Windows Server 2003, 2008 R2, 2012, 2012 R2, 2016, 2019n- Mac OS 10.6 – 10.14n- Linux 2.4.x to 4.11.x LTS
USB powered Y
Operating temperature (T-T) 0 – 55 °C
Storage temperature (T-T) -20 – 85 °C
Relative humidity 5 – 95%
Width 33.5 mm
Depth 179 mm
Height 16.5 mm
Weight 88 g
Package width 210 mm
Package depth 145 mm
Package height 40 mm
Package weight 200 g
Quantity per pack 1 pc(s)
Manual Y
Drivers included Y
Chipset

FTDI – FT232RL

Weight

88 g

Cable length

1.7 m

USB powered

Y

Width

33.5 mm
