StarTech.com 1 Port PCI Express PCIe Gigabit NIC Server Adapter Network Card - Low Profile

SKU: ST1000SPEX2L Category:

StarTech.com 1 Port PCI Express PCIe Gigabit NIC Server Adapter Network Card - Low Profile

* Images are for illustrative purposes only.

SHARE

Share on facebook
Share on twitter
Share on whatsapp
Share on reddit
Share on linkedin
Share on email

£18.00 £15.00 Ex. VAT

Availability: 181 in stock

Finance/leasing available for orders over £1000 Inc VAT

Free mainland UK shipping on orders over £150 Ex VAT

Add a 10/100/1000Mbps Ethernet port to any PC through a PCI Express slot

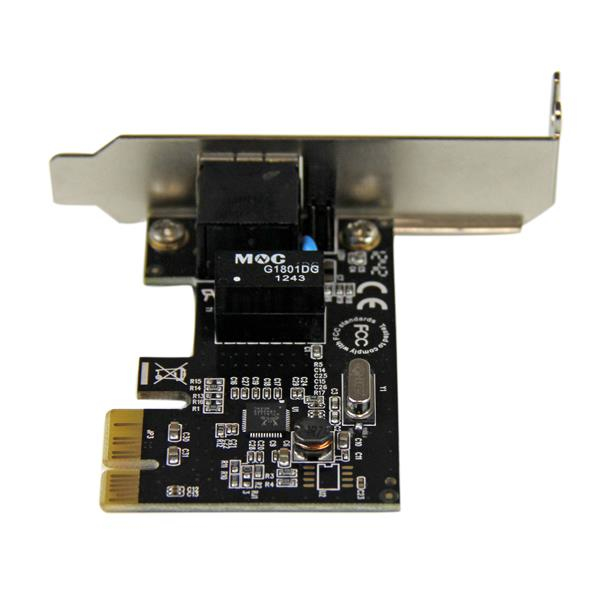

The ST1000SPEX2L Low-Profile PCIe Gigabit Network Card adds a 10/100/1000 Mbps compatible RJ45 Ethernet port to a PCI Express-enabled client, server or workstation, providing a convenient addition or replacement networking interface.

Compliant with IEEE 802.3/u/ab standards, and with support for 9K Jumbo Frames, VLAN tagging and Wake on LAN (WOL), this versatile Gigabit NIC/Server Adapter offers effective network performance.

The card comes pre-configured with a low-profile/half-height installation bracket and includes a standard profile bracket for installation in a wide range of computer/server chassis, regardless of form factor.

Backed by a 2-year StarTech.com warranty and free lifetime technical support.

The StarTech.com Advantage

– Optimize network traffic with support for advanced features such as Jumbo Frames and VLAN tagging
– Saves the time of having to adjust the mounting bracket, with a pre-configured half-height/low-profile bracket


Feature Feature Value
Connectivity technology Wired
Host interface PCI Express
Interface Ethernet
Maximum data transfer rate 1000 Mbit/s
Networking standards IEEE 802.3,IEEE 802.3ab,IEEE 802.3u,IEEE 802.3x
Ethernet LAN Y
Ethernet LAN data rates 10,100,1000 Mbit/s
Cabling technology 10/100/1000BaseT(X)
Auto MDIX IEEE Y
Full duplex Y
Internal Y
Operating temperature (T-T) 0 – 70 °C
Storage temperature (T-T) 0 – 100 °C
Operating relative humidity (H-H) 10 – 90%
Windows operating systems supported Windows 10,Windows 10 Education,Windows 10 Education x64,Windows 10 Enterprise,Windows 10 Enterprise x64,Windows 10 Home,Windows 10 Home x64,Windows 10 Pro,Windows 10 Pro x64,Windows 2000,Windows 2000 Professional,Windows 7,Windows 7 Enterprise,Windows 7 Enterprise x64,Windows 7 Home Basic,Windows 7 Home Basic x64,Windows 7 Home Premium,Windows 7 Home Premium x64,Windows 7 Professional,Windows 7 Professional x64,Windows 7 Starter,Windows 7 Starter x64,Windows 7 Ultimate,Windows 7 Ultimate x64,Windows 7 x64,Windows 8,Windows 8 Enterprise,Windows 8 Enterprise x64,Windows 8 Pro,Windows 8 Pro x64,Windows 8 x64,Windows 8.1,Windows 8.1 Enterprise,Windows 8.1 Enterprise x64,Windows 8.1 Pro,Windows 8.1 Pro x64,Windows 8.1 x64,Windows Vista,Windows Vista Business,Windows Vista Business x64,Windows Vista Enterprise,Windows Vista Enterprise x64,Windows Vista Home Basic,Windows Vista Home Basic x64,Windows Vista Home Premium,Windows Vista Home Premium x64,Windows Vista Ultimate,Windows Vista Ultimate x64,Windows Vista x64,Windows XP,Windows XP Home,Windows XP Home x64,Windows XP Professional,Windows XP Professional x64
Mac operating systems supported Mac OS X 10.4 Tiger,Mac OS X 10.5 Leopard
Linux operating systems supported Y
Server operating systems supported Windows Server 2003,Windows Server 2008 R2,Windows Server 2012,Windows Server 2012 R2,Windows Server 2016,Windows Server 2019
Width 49 mm
Depth 70 mm
Height 18 mm
Weight 30 g
Manual Y
Package width 176 mm
Package depth 144 mm
Package height 34 mm
Package weight 127 g
Chipset Realtek RTL8111E
Power LED Y
Link/Act LED Y
Interface

Ethernet

Ethernet LAN data rates

10,100,1000 Mbit/s

Width

49 mm

Host interface

PCI Express

Maximum data transfer rate

1000 Mbit/s

Ethernet LAN

Y

Full duplex

Y

Weight

30 g

Chipset

Realtek RTL8111E
