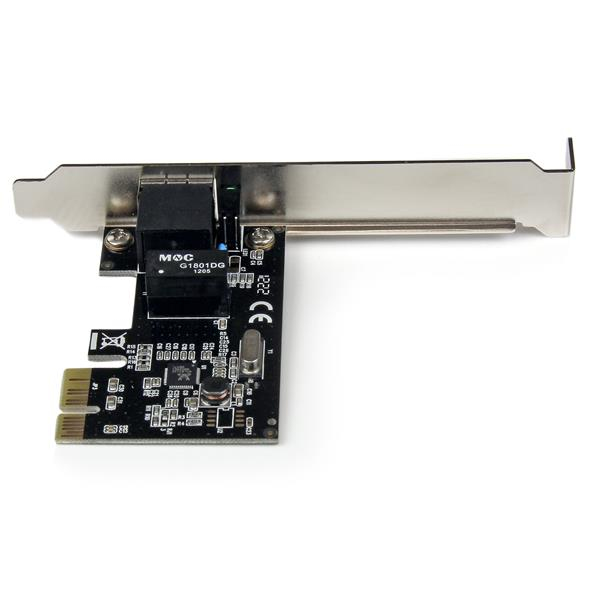

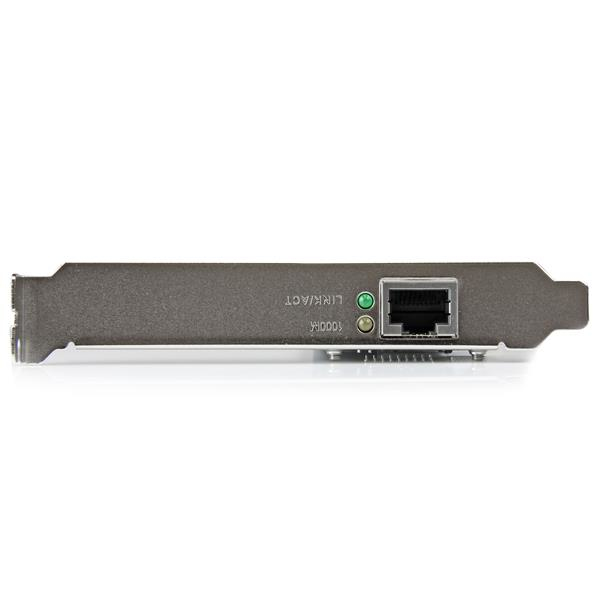

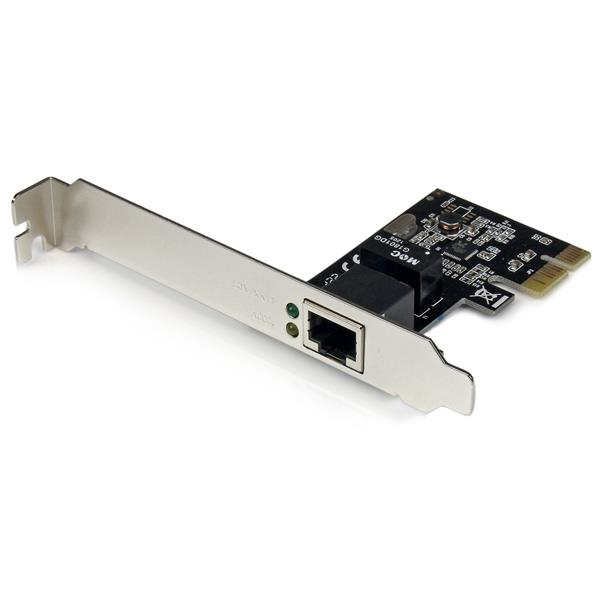

StarTech.com 1 Port PCI Express PCIe Gigabit Network Server Adapter NIC Card - Dual Profile

SKU: ST1000SPEX2 Category:

StarTech.com 1 Port PCI Express PCIe Gigabit Network Server Adapter NIC Card - Dual Profile

* Images are for illustrative purposes only.

SHARE

Share on facebook
Share on twitter
Share on whatsapp
Share on reddit
Share on linkedin
Share on email

£20.32 £16.93 Ex. VAT

Availability: 209 in stock

Finance/leasing available for orders over £1000 Inc VAT

Free mainland UK shipping on orders over £150 Ex VAT

The ST1000SPEX2 PCIe Gigabit Ethernet Network Card adds a 10/100/1000 Mbps compatible RJ45 Ethernet port to a PCI Express-enabled client, server or workstation, providing a convenient addition or replacement networking interface.

Compliant with IEEE 802.3/u/ab standards, and with support for 9K Jumbo Frames, VLAN tagging and Wake on LAN (WOL), this versatile Gigabit NIC/Server Adapter delivers rock-solid performance.

Plus, the card includes both full profile and low profile/half-height installation brackets for installation in a wide range of computer/server chassis, regardless of form factor.

The ST1000SPEX2 network card is backed by a 2-year StarTech.com warranty and free lifetime technical support.

The StarTech.com Advantage
– Fits into full-size or low profile/small form factor (SFF) systems, with the addition of a half-height bracket
– Offers performance flexibility and easy setup with support for advanced features such as Jumbo Frames, Wake-On-LAN and Auto MDIX


Feature Feature Value
Connectivity technology Wired
Host interface PCI Express
Interface Ethernet
Ethernet LAN (RJ-45) ports 1
Maximum data transfer rate 1000 Mbit/s
Networking standards IEEE 802.3,IEEE 802.3ab,IEEE 802.3u,IEEE 802.3x
Ethernet LAN Y
Ethernet interface type Gigabit Ethernet
Ethernet LAN data rates 10,100,1000 Mbit/s
Cabling technology 10/100/1000BaseT(X)
Wi-Fi N
Wake-on-LAN ready Y
Auto MDIX IEEE Y
Full duplex Y
Jumbo frames support Y
Supported network protocols CSMA/CD
Jumbo frames 9000
Internal Y
LED indicators Activity,Link
Mean time between failures (MTBF) 376212 h
RoHS compliance Y
Certification CE, FCC
Operating temperature (T-T) 0 – 70 °C
Storage temperature (T-T) 0 – 100 °C
Operating relative humidity (H-H) 10 – 90%
Windows operating systems supported Windows 10,Windows 10 Education,Windows 10 Education x64,Windows 10 Enterprise,Windows 10 Enterprise x64,Windows 10 Home,Windows 10 Home x64,Windows 10 Pro,Windows 10 Pro x64,Windows 2000,Windows 2000 Professional,Windows 7,Windows 7 Enterprise,Windows 7 Enterprise x64,Windows 7 Home Basic,Windows 7 Home Basic x64,Windows 7 Home Premium,Windows 7 Home Premium x64,Windows 7 Professional,Windows 7 Professional x64,Windows 7 Starter,Windows 7 Starter x64,Windows 7 Ultimate,Windows 7 Ultimate x64,Windows 7 x64,Windows 8,Windows 8 Enterprise,Windows 8 Enterprise x64,Windows 8 Pro,Windows 8 Pro x64,Windows 8 x64,Windows 8.1,Windows 8.1 Enterprise,Windows 8.1 Enterprise x64,Windows 8.1 Pro,Windows 8.1 Pro x64,Windows 8.1 x64,Windows Vista,Windows Vista Business,Windows Vista Business x64,Windows Vista Enterprise,Windows Vista Enterprise x64,Windows Vista Home Basic,Windows Vista Home Basic x64,Windows Vista Home Premium,Windows Vista Home Premium x64,Windows Vista Ultimate,Windows Vista Ultimate x64,Windows Vista x64,Windows XP,Windows XP Home,Windows XP Home x64,Windows XP Professional,Windows XP Professional x64
Mac operating systems supported Mac OS X 10.4 Tiger,Mac OS X 10.5 Leopard
Linux operating systems supported Y
Server operating systems supported Windows Server 2003,Windows Server 2008 R2,Windows Server 2012,Windows Server 2012 R2,Windows Server 2016,Windows Server 2019
Width 120.3 mm
Depth 67.9 mm
Height 18 mm
Weight 40 g
Manual Y
Drivers included Y
Low-profile bracket Y
Package width 176 mm
Package depth 144 mm
Package height 34 mm
Package weight 120 g
Chipset Realtek RTL8111E
Supported data transfer rates 10/100/1000 Mbit/s
Interface

Ethernet

Maximum data transfer rate

1000 Mbit/s

Ethernet LAN

Y

Ethernet LAN data rates

10,100,1000 Mbit/s

Wi-Fi

N

Weight

40 g

Chipset

Realtek RTL8111E

Host interface

PCI Express

Ethernet LAN (RJ-45) ports

1

Wake-on-LAN ready

Y

Full duplex

Y

Width

120.3 mm
