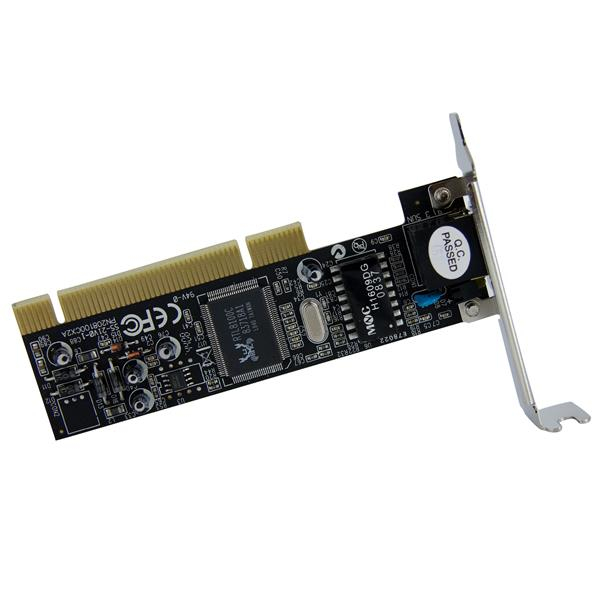

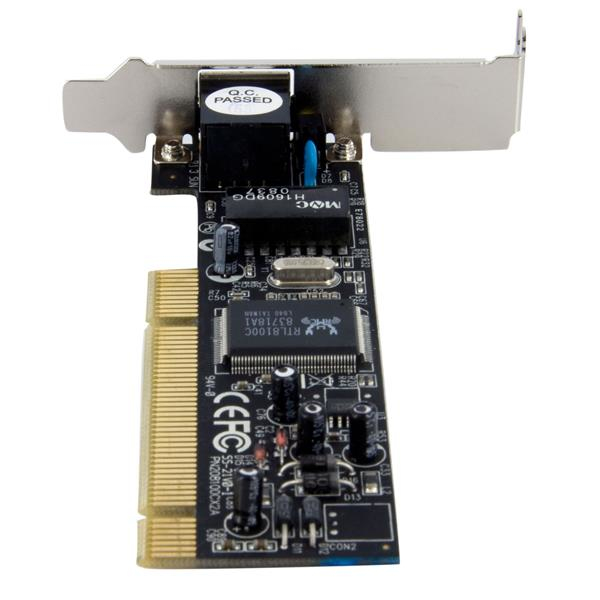

Add a 10/100Mbps Ethernet port to any low profile PC through a PCI slot
This 1 Port PCI Fast Ethernet Network Adapter Card offers a reliable, cost-effective Ethernet network connection that”s ideal for small form factor computers.
Delivering a simple connection to 10/100Mbps (Fast) Ethernet networks, the NIC features auto-negotiation that senses speed and duplex capabilities of connected devices and full duplex support for data transfer rates up to 200Mbps.
A versatile network interface solution, the NIC features a low profile mounting bracket that”s suitable for small form factor computers, and is supported by all popular operating systems including Windows, Linux, Mac OS and Novell platforms. Backed by StarTech.com”s Lifetime Warranty.
The StarTech.com Advantage
– Cost effective and simple Ethernet networking for Low Profile/small form factor (SFF) systems
– Backed by a StarTech.com lifetime warranty and free lifetime technical support
| Feature | Feature Value |
|---|---|
| Connectivity technology | Wired |
| Host interface | PCI |
| Interface | Ethernet |
| Ethernet LAN (RJ-45) ports | 1 |
| Maximum data transfer rate | 200 Mbit/s |
| Networking standards | IEEE 802.3,IEEE 802.3u |
| Ethernet LAN | Y |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Full duplex | Y |
| Internal | Y |
| Recommended usage | PC |
| LED indicators | Activity, LAN, link |
| RoHS compliance | Y |
| Certification | RoSH |
| Power consumption (typical) | 1.5 W |
| Operating temperature (T-T) | 0 – 55 °C |
| Operating relative humidity (H-H) | 10 – 90% |
| Windows operating systems supported | Windows 10,Windows 10 Education,Windows 10 Education x64,Windows 10 Enterprise,Windows 10 Enterprise x64,Windows 10 Home,Windows 10 Home x64,Windows 10 IOT Core,Windows 10 Pro,Windows 10 Pro x64,Windows 10 x64,Windows 2000,Windows 2000 Professional,Windows 7,Windows 7 Enterprise,Windows 7 Enterprise x64,Windows 7 Home Basic,Windows 7 Home Basic x64,Windows 7 Home Premium,Windows 7 Home Premium x64,Windows 7 Professional,Windows 7 Professional x64,Windows 7 Starter,Windows 7 Starter x64,Windows 7 Ultimate,Windows 7 Ultimate x64,Windows 7 x64,Windows 8,Windows 8 Enterprise,Windows 8 Enterprise x64,Windows 8 Pro,Windows 8 Pro x64,Windows 8 x64,Windows 8.1,Windows 8.1 Enterprise,Windows 8.1 Enterprise x64,Windows 8.1 Pro,Windows 8.1 Pro x64,Windows 8.1 x64,Windows 98SE,Windows NT,Windows Vista,Windows Vista Business,Windows Vista Business x64,Windows Vista Enterprise,Windows Vista Enterprise x64,Windows Vista Home Basic,Windows Vista Home Basic x64,Windows Vista Home Premium,Windows Vista Home Premium x64,Windows Vista Ultimate,Windows Vista Ultimate x64,Windows Vista x64,Windows XP,Windows XP Home,Windows XP Home x64,Windows XP Professional,Windows XP Professional x64 |
| Mac operating systems supported | Mac OS 9.0,Mac OS 9.1,Mac OS X 10.10 Yosemite |
| Linux operating systems supported | Y |
| Server operating systems supported | Windows Server 2008 R2,Windows Server 2012,Windows Server 2016,Windows Server 2019 |
| Width | 32 mm |
| Depth | 120 mm |
| Height | 120 mm |
| Weight | 56 g |
| Quantity | 1 |
| Manual | Y |
| Package width | 26 mm |
| Package depth | 229 mm |
| Package height | 165 mm |
| Package weight | 200 g |
| Compliance industry standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3x |
| Chipset | Realtek – RTL8100C |
| Supported data transfer rates | 10/100Mbps |
| Ports quantity | 1 |
| Link/Act LED | Y |
| Package length | 9.02 mm |
| I/O ports | 1 – RJ45 |
| Non-operating relative humidity (non-condensing) | 10 – 90% |
