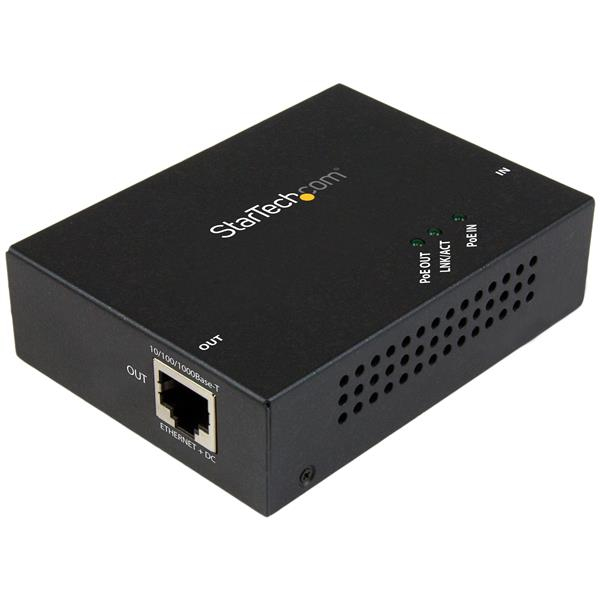

StarTech.com 1-Port Gigabit PoE+ Extender – 802.3at and 802.3af – 100 m (330 ft)

* Images are for illustrative purposes only.

£107.27 £89.39 Ex. VAT

Availability: 23 in stock

Finance/leasing available for orders over £1000 Inc VAT

Free mainland UK shipping on orders over £150 Ex VAT

This Gigabit PoE+ extender spans your Power over Ethernet (PoE) device over longer distances, letting you double the 100m limitations of a traditional PoE infrastructure.

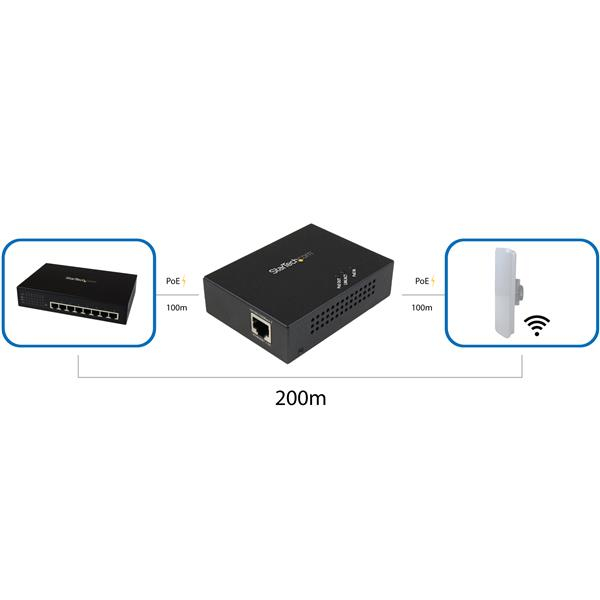

Now you can connect your Gigabit PoE device up to a maximum of 200m away, so it’s easy to install a remote IP camera or access point. Plus the extender can be daisy-chained for more scalability.

Unrestricted PoE+ range and convenience
Need more distance? This convenient PoE+ repeater maximizes range and flexibility by extending your PoE connection by an extra 100m (330ft), while providing 24-watt power output to compatible devices.

Simply connect the extender to your power sourcing equipment (PSE) and your PoE-powered device (PD) and you’re all set. The extender is compliant with the 802.3at/af standard, so it will work with existing PSE, such as a StarTech.com PoE+ injector (POEINJ1G) or PoE+ switch (IES81000POE).

Daisy chain for longer distance and flexibility
Still need more distance? If an extra 100m isn’t enough, this full-featured PoE extender offers daisy chain capability.

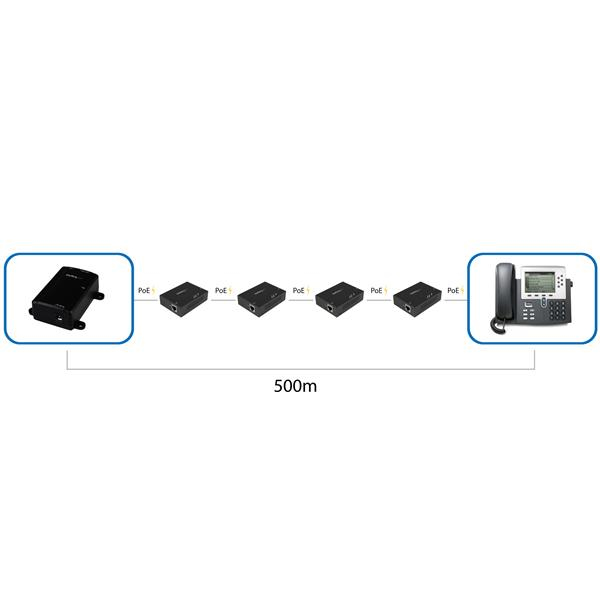

You can easily connect four extenders together, letting you install your PoE+ PD up to 500m (1640ft) away. It’s perfect for business, education, and retail environments (output wattage is dependent on the number of daisy-chained extenders used).

Convenient installation options and durable construction
Get up and running quickly. This Gigabit PoE+ extender can be positioned right where you need it, with a wall-mountable design that requires no external power adapter.

You can enjoy reliable performance with little worry of downtime or failure, the extender features a rugged metal housing with built-in ESD and surge protection.

The POEEXT1GAT is backed by a StarTech.com 2-year warranty and free lifetime technical support.


Feature Feature Value
Type Network repeater
Maximum transfer distance 100 m
Power over Ethernet (PoE) Y
Data transfer rate 2000 Mbit/s
Full duplex Y
Auto MDIX IEEE Y
Jumbo frames support N
Auto-negotiation Y
Duplex system Full,Half
Plug and Play Y
Mean time between failures (MTBF) 50000 h
Cabling technology 10/100/1000Base-T(X)
Networking standards IEEE 802.3,IEEE 802.3ab,IEEE 802.3af,IEEE 802.3at,IEEE 802.3u,IEEE 802.3x
Power over Ethernet (PoE) ports quantity 2
Product colour Black
Housing material Steel
LED indicators Activity,Link,PoE
RoHS compliance Y
Certification CE, FCC
Power consumption (max) 3.2 W
Operating temperature (T-T) 0 – 50 °C
Storage temperature (T-T) -10 – 85 °C
Operating relative humidity (H-H) 5 – 95%
Width 69 mm
Depth 94 mm
Height 25 mm
Weight 188 g
Manual Y
Package width 134 mm
Package depth 203 mm
Package height 67 mm
Package weight 339 g
Type

Network repeater

Power over Ethernet (PoE)

Y

Full duplex

Y

Duplex system

Full,Half

Weight

188 g

Maximum transfer distance

100 m

Data transfer rate

2000 Mbit/s

Width

69 mm
