1 Port FTDI USB to Serial RS232 Adapter Cable with Optical Isolation

SKU: ICUSB2321FIS Category: 1 Port FTDI USB to Serial RS232 Adapter Cable with Optical Isolation

* Images are for illustrative purposes only.
Share on facebook
Share on twitter
Share on whatsapp
Share on linkedin
Share on email

£110.08 £91.73 Ex. VAT

Availability: 5 in stock

Finance/leasing available for orders over £1000 Inc VAT

Free mainland UK shipping on orders over £150 Ex VAT

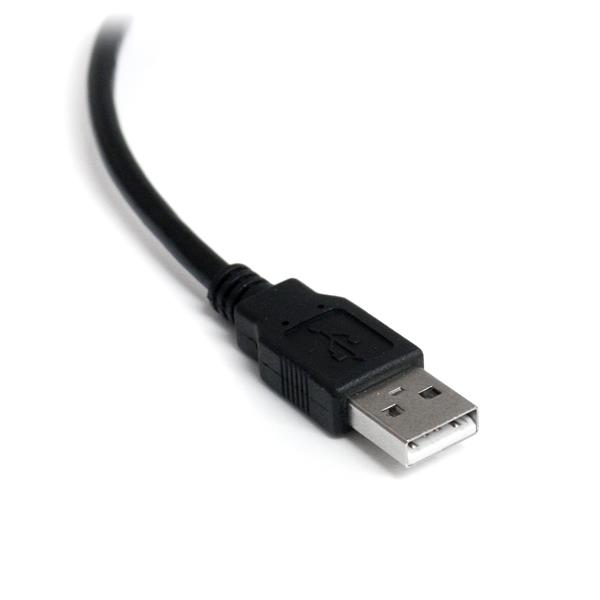

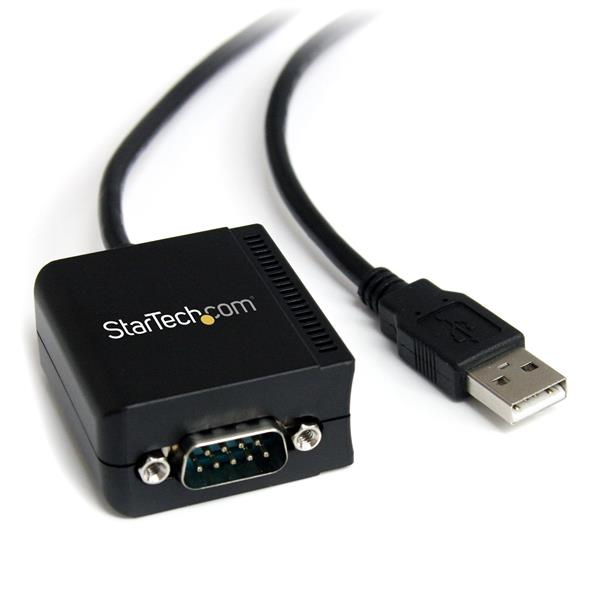

The ICUSB2321FIS 1-Port FTDI USB to Serial RS232 Adapter Cable with Optical Isolation converts an available USB 1.1 or 2.0 port into an RS232 DB9 port that can be used to connect, monitor and control your serial devices.

The USB to serial adapter features integrated optical isolation circuits and surge protection to protect your critical, sensitive control equipment against electrical damage, making it a viable solution for costly industrial serial devices.

The versatile FTDI chipset also supports COM retention, additional customization/features, and compatibility not offered by most other solutions. Broad operating system compatibility including Windows®, Windows CE, Mac OS and Linux, makes this product easy to integrate into mixed environments.

Backed by a 2-year warranty and free lifetime technical support.

The Advantage
– Circuit isolation provides electrical protection for sensitive, and often expensive industrial equipment
– Portable USB-Powered design requires no bulky power adapter or outlet
– The FTDI chipset driver is highly customizable and broadly compatible, making it the ideal solution for any setup

Feature Feature Value
Connector 1 DB-9
Connector 2 USB A
Connector gender Male connector / Male connector
Cable length 2.5 m
Product colour Black
Housing material Plastic
USB required Y
Chipset FTDI – FT232RL
Data bits 7,8
Stop bits 1,2
Baud rate 921.6 Kbit/s
Parity bit Even,Mark,N,Odd,Space
Isolation 2500 kV
FIFO (First In, First Out) 256 B
RoHS compliance Y
Certification CE, FCC, Microsoft WHQL
Compatible operating systems – Windows® CE (4.2, 5.0, 6.0), XP Embedded, 98SE, 2000, XP, Vista, 7, 8, 8.1, 10n- Windows Server® 2003, 2008 R2, 2012, 2012 R2n- Mac OS X® 10.6 to 10.11n- Linux 2.4.x to 4.4.x
Operating temperature (T-T) 0 – 55 °C
Storage temperature (T-T) -20 – 85 °C
Relative humidity 5 – 95%
Width 40 mm
Depth 2400 mm
Height 20 mm
Weight 86 g
Package width 150 mm
Package depth 210 mm
Package height 40 mm
Package weight 200 g
Manual Y
Drivers included Y
Gross weight (imperial) 0.2 kg (0.44 lbs)
USB required



40 mm

Cable length

2.5 m




86 g
