1 Port FTDI USB to Serial RS232 Adapter Cable with COM Retention

SKU: ICUSB2321F Category: 1 Port FTDI USB to Serial RS232 Adapter Cable with COM Retention


Share on facebook
Share on twitter
Share on whatsapp
Share on reddit
Share on linkedin
Share on email

£21.16 £17.63 Ex. VAT

Availability: 371 in stock

Finance/leasing available for orders over £1000 Inc VAT

Free mainland UK shipping on orders over £150 Ex VAT

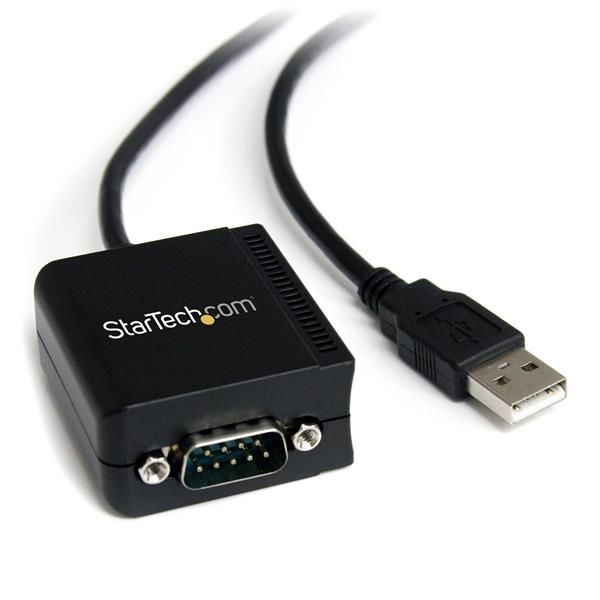

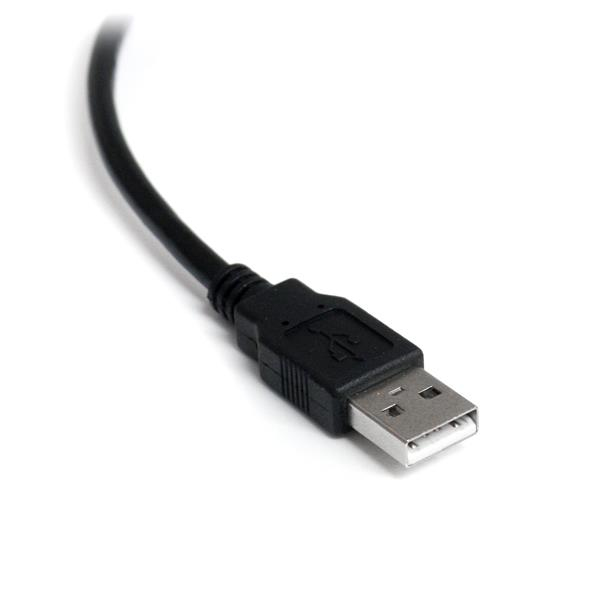

The ICUSB2321F 1-Port USB to Serial RS232 Adapter Cable with FTDI chipset and COM Retention converts an available USB 1.1 or 2.0 port into an RS232 serial DB9 port to connect, monitor and control your serial devices.

This compact adapter features COM retention, allowing the same COM port value to automatically be re-assigned to the port if the cable is disconnected and re-connected to the host computer, or if the system is rebooted. The ICUSB2321F uses the FTDI chipset which supports additional customization, advanced features, and compatibility not necessarily offered by other solutions.

Compatibility with a broad list of Operating Systems including Windows®, Windows CE, Mac OS and Linux, makes this product easy to integrate into mixed environments.

Backed by a 2-year warranty and free lifetime technical support.

The Advantage
– The FTDI chipset is highly customizable and compatible, making it the ideal solution for any setup
– Portable USB-Powered design requires no bulky power adapter or outlet
– Simple installation and operation with COM port retention provides robust serial connectivity for legacy devices

Feature Feature Value
Connector 1 DB-9
Connector 2 USB 2.0 A
Connector gender Male connector / Male connector
Cable length 0.2 m
Product colour Black
Chipset FTDI – FT232RL
Data bits 7,8
Stop bits 1,2
Baud rate 115.2 Kbit/s
Parity bit Even,Mark,N,Odd,Space
FIFO (First In, First Out) 256 B
RoHS compliance Y
Certification CE, FCC
Compatible operating systems – Windows CE (4.2, 5.0, 6.0), XP Embedded, 98SE, 2000, XP, Vista, 7, 8, 8.1, 10n- Windows Server 2003, 2008 R2, 2012, 2012 R2, 2016, 2019n- Mac OS 10.6 to 10.14n- Linux 2.4.x to 4.11.x LTS
Operating temperature (T-T) 0 – 55 °C
Storage temperature (T-T) -20 – 85 °C
Relative humidity 5 – 95%
Width 41.5 mm
Depth 45 mm
Height 22 mm
Weight 200 g
Package width 150 mm
Package depth 220 mm
Package height 40 mm
Package weight 200 g
Manual Y
Drivers included Y

200 g

Cable length

0.2 m




41.5 mm
