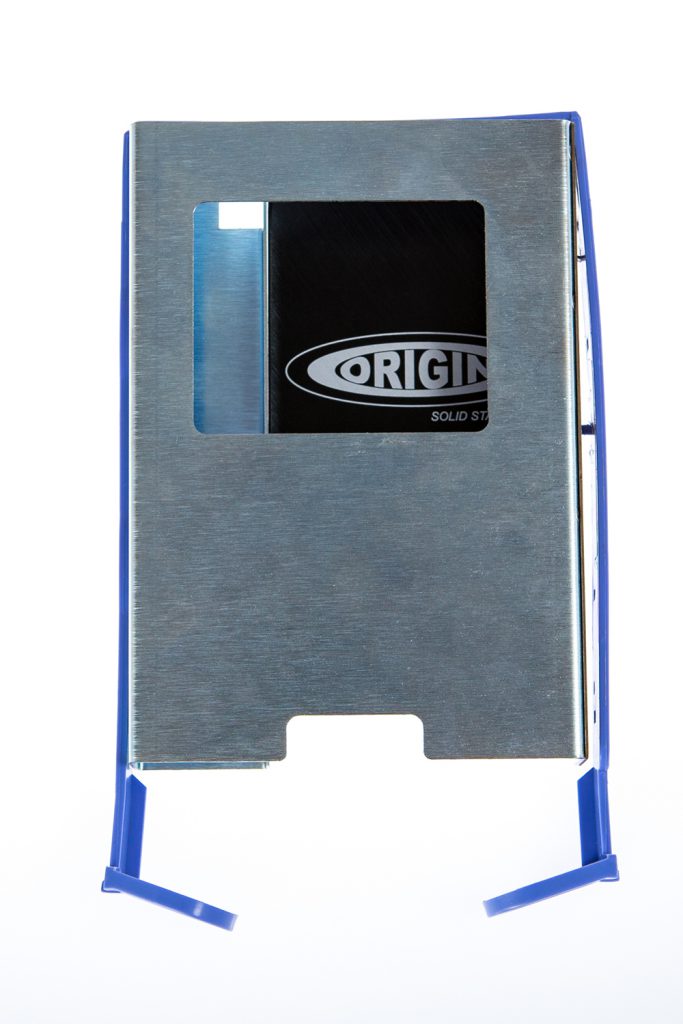

Origin Storage Ltd manufactures a full range of Matched Hard Drive & Solid State Solutions for Lenovo ThinkServer, ThinkCentre and ThinkPad ranges, covering all their legacy systems right through to the latest modern day technology. All of our Matched Drive Solutions come with up to 5 years advanced replacement warranty and also come with free pre and post sales technical support from our in house engineers. We can supply replacements or upgrades in form factors 2.5″ ,3.5″, M.2, mSATA and AIC (PCIe) connectivity’s including SATA & SAS interfaces, available in a range of capacities and spin speeds. All our Matched Drive Solutions are just that, matched to the system you have for 100% compatibility, right first time, every time!
| Feature | Feature Value |
|---|---|
| SSD form factor | 3.5″ |
| SSD capacity | 1920 GB |
| Interface | Serial ATA III |
| Memory type | 3D TLC |
| NVMe | N |
| Component for | Server/workstation |
| Hardware encryption | Y |
| Read speed | 550 MB/s |
| Write speed | 520 MB/s |
| NAND flash type | eMLC (Enterprise Multi Level Cell) |
| Security algorithms | 256-bit AES |
| Data transfer rate | 6 Gbit/s |
| Maximum read (4KB) | 95000 IOPS |
| Maximum write (4KB) | 28000 IOPS |
| Random read (4KB) | 95000 IOPS |
| Random write (4KB) | 28000 IOPS |
| Read latency | 110 µs |
| Write latency | 110 µs |
| S.M.A.R.T. support | Y |
| TRIM support | Y |
| ECC | Y |
| End-to-End Data Protection | Y |
| Enhanced Power Loss Data Protection technology | Y |
| Mean time between failures (MTBF) | 2000000 h |
| Active garbage collection | Y |
| TBW rating | 10512 |
| RoHS compliance | Y |
| Power consumption (average) | 3 W |
| Operating temperature (T-T) | 0 – 70 °C |
| Storage temperature (T-T) | -40 – 85 °C |
| Operating vibration | 2.17 G |
| Non-operating vibration | 2.17 G |
| Operating shock | 1500 G |
| Non-operating shock | 1500 G |
| Width | 69.8 mm |
| Depth | 100.5 mm |
| Height | 7 mm |
| Weight | 54.3 g |
| Storage drive adapter included | Y |
| Storage drive adapter type | 2.5″ – 3.5″ |
