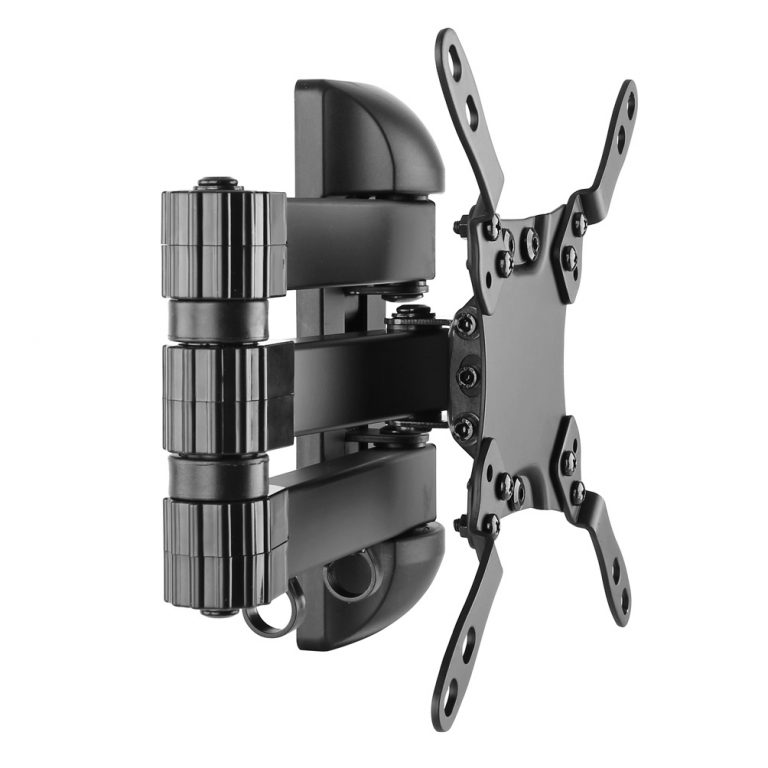

The Neomounts by Newstar wall mount, modelNM-W225BLACK is a tilt- and swivel wall mount for flat screens up to 32”. This mount is a great choice when you want the ultimate viewing flexibility with your flat screen. Effortless pull the display out from the wall, position it in almost any direction, turn it around corners and then smoothly return it to the wall when finished.
Neomounts by Newstars’ tilt (140°) and swivel (180°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of the flat screen. The mount is easily depth adjustable from 5 to 37 centimetres.
Neomounts by Newstar NM-W225BLACK has three pivot points and is suitable for screens up to 32″ (80 cm). The weight capacity of this product is 15 kg each screen. The wall mount is suitable for screens that meet VESA hole pattern 75×75 up to 200x200mm. Different hole patterns can be covered using Neomounts by Newstar VESA adapter plates.
Create a clean design ambiance for your flat screen TV in the living room, bedroom or home cinema.
All installation material is included with the product.
|Maximum weight capacity||15 kg|
|Maximum screen size compatibility||81.3 cm (32″)|
|Minimum VESA mount||75 x 75 mm|
|Maximum VESA mount||200 x 200 mm|
|Minimum screen size compatibility||25.4 cm (10″)|
|Number of displays supported||1|
|Tilt angle range||0 – 20°|
|Angle of rotation||5°|
|Distance to the wall (max)||37 cm|
|Distance to the wall (min)||5 cm|
|Package width||228 mm|
|Package depth||70 mm|
|Package height||239 mm|
|Master (outer) case width||49 cm|
|Master (outer) case length||26.5 cm|
|Master (outer) case height||31.5 cm|
|Master (outer) case gross weight||19 kg|
|Master (outer) case net weight||16.8 kg|
|Quantity per master (outer) case||8 pc(s)|
|Country of origin||China|
|Package net weight||2 kg|
