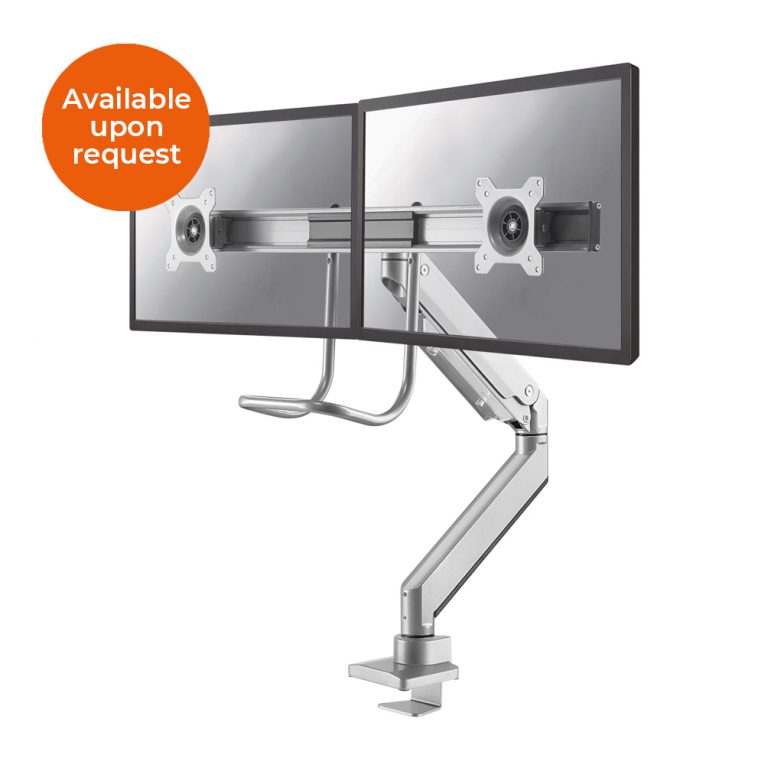

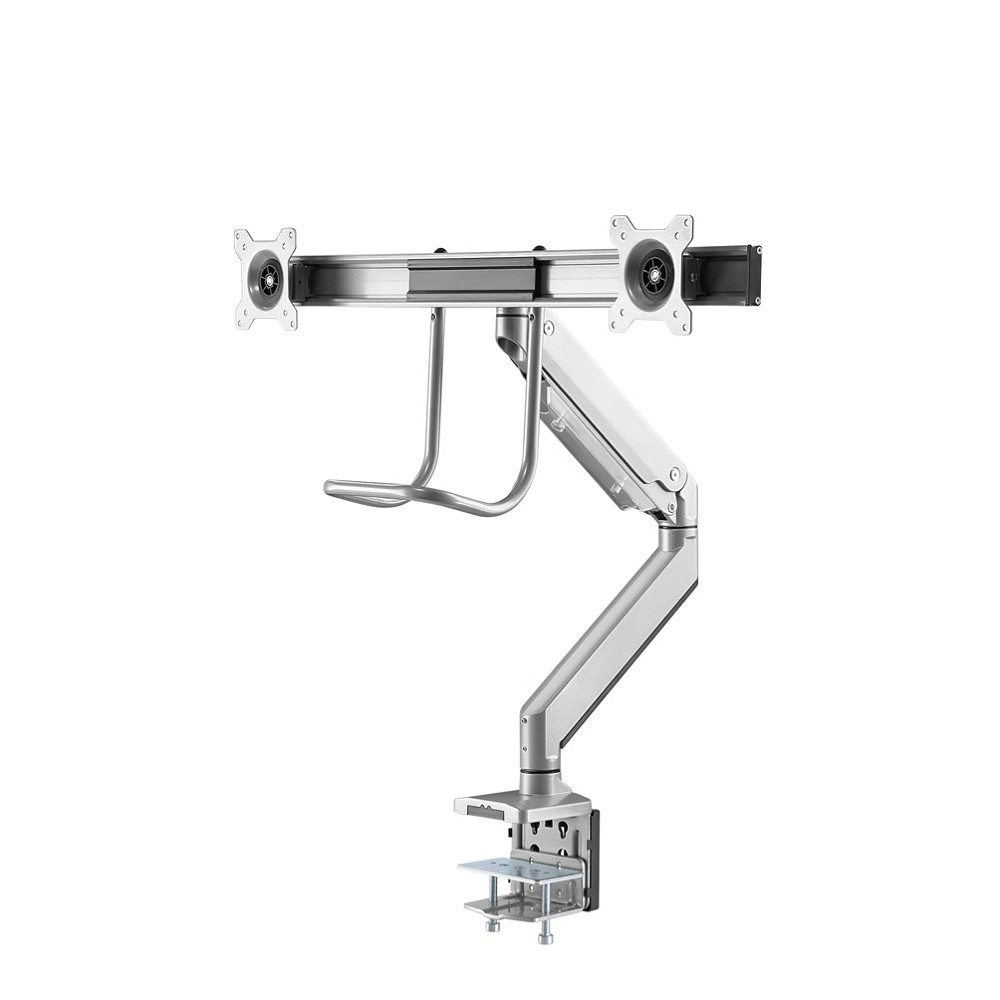

The Neomounts by Newstar NM-D775DXSILVER is a tilt-, swivel and rotatable desk mount with crossbar and handle for 2 flat screens up to 32″?. This mount is a great choice for space saving placement on desks using a desk clamp or grommet mount.
Neomounts by Newstars? unique tilt (20°), rotate (360°) and swivel (180°/360°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of the flat screen. The mount is easily individually height adjustable to 60 centimetres using a gas spring. Depth adjustable from 0 to 63 centimetres. A unique cable management conceals and routes cables from mount to flat screen. Hide your cables to keep the workplace nice and tidy. The mount is equipped with a 180° stop mechanism.
Neomounts by Newstar NM-D775DXSILVER with handle has three pivot points and is suitable for screens up to 32″ (81 cm). The weight capacity of this product is 1 to 16 kg (max. 8 kg each screen). The desk mount is suitable for screens that meet VESA hole pattern 75×75 or 100x100mm. Different hole patterns can be covered using Neomounts by Newstar VESA adapter plates.
By using an ergonomic mount neck- and back complaints can be avoided. Ideal for use in offices and on counters or in a reception area.
All installation material is included with the product.
| Feature | Feature Value |
|---|---|
| Maximum weight capacity | 8 kg |
| Maximum screen size compatibility | 81.3 cm (32″) |
| Minimum screen size compatibility | 25.4 cm (10″) |
| Suitable for | Computer monitor |
| Minimum VESA mount | 75 x 75 mm |
| Maximum VESA mount | 100 x 100 mm |
| Number of displays supported | 2 |
| Mounting | Clamp |
| Panel mounting interface | 75 x 75,100 x 100 mm |
| Height adjustment | Y |
| Height adjustment range | 260 – 600 mm |
| Depth adjustment range | 0 – 630 mm |
| Tilt angle range | 0 – 20° |
| Swivel angle | 180° |
| Swivel angle range | -180 – 180° |
| Angle of rotation | 360° |
| Product colour | Silver |
| Cable management | Y |
| Height | 600 mm |
| Package width | 225 mm |
| Package depth | 150 mm |
| Package height | 895 mm |
| Master (outer) case width | 91 cm |
| Master (outer) case length | 47 cm |
| Master (outer) case height | 17 cm |
| Quantity per master (outer) case | 2 pc(s) |
| Master (outer) case gross weight | 8.95 kg |
| Master (outer) case net weight | 8.95 kg |
| Country of origin | China |
| Package net weight | 8.95 kg |
