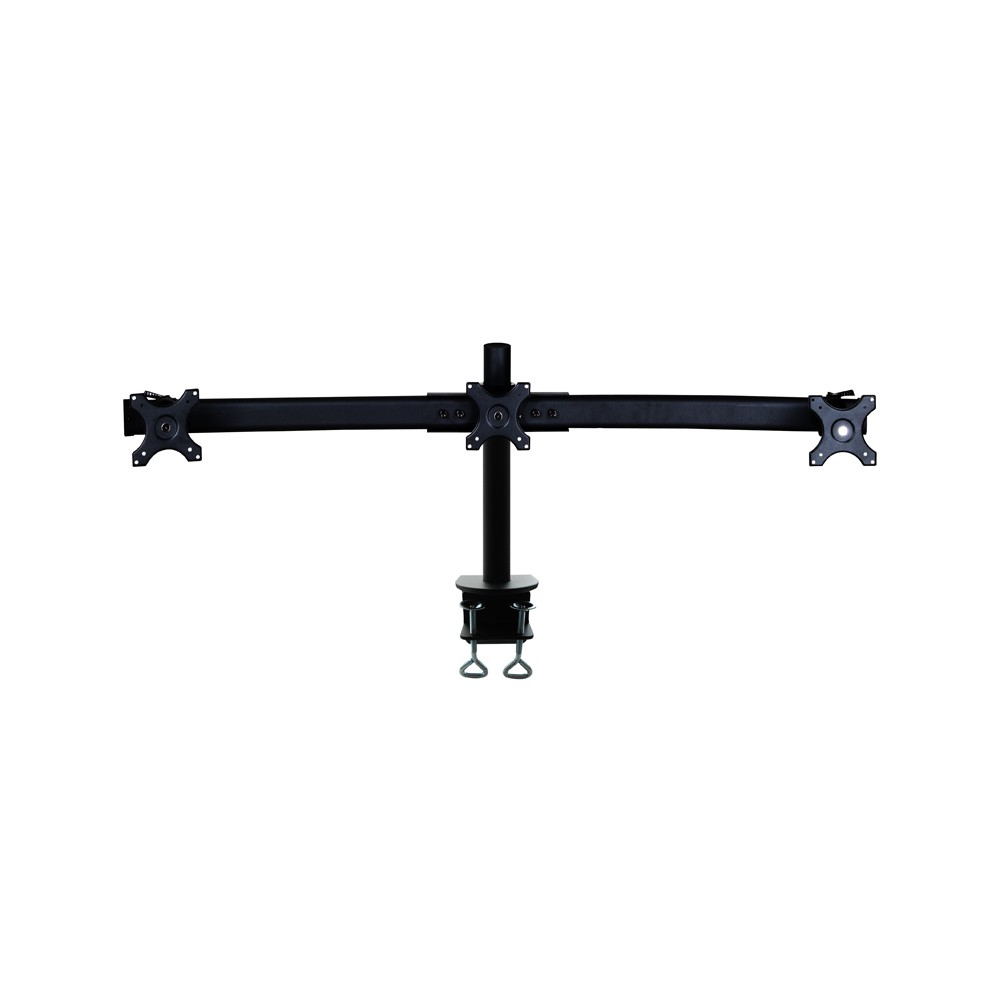

The NewStar desk mount, model FPMA-D700D3 is a tilt- and rotatable desk mount for 3 flat screens up to 27”. This mount is a great choice for space saving placement on desks using a desk clamp.

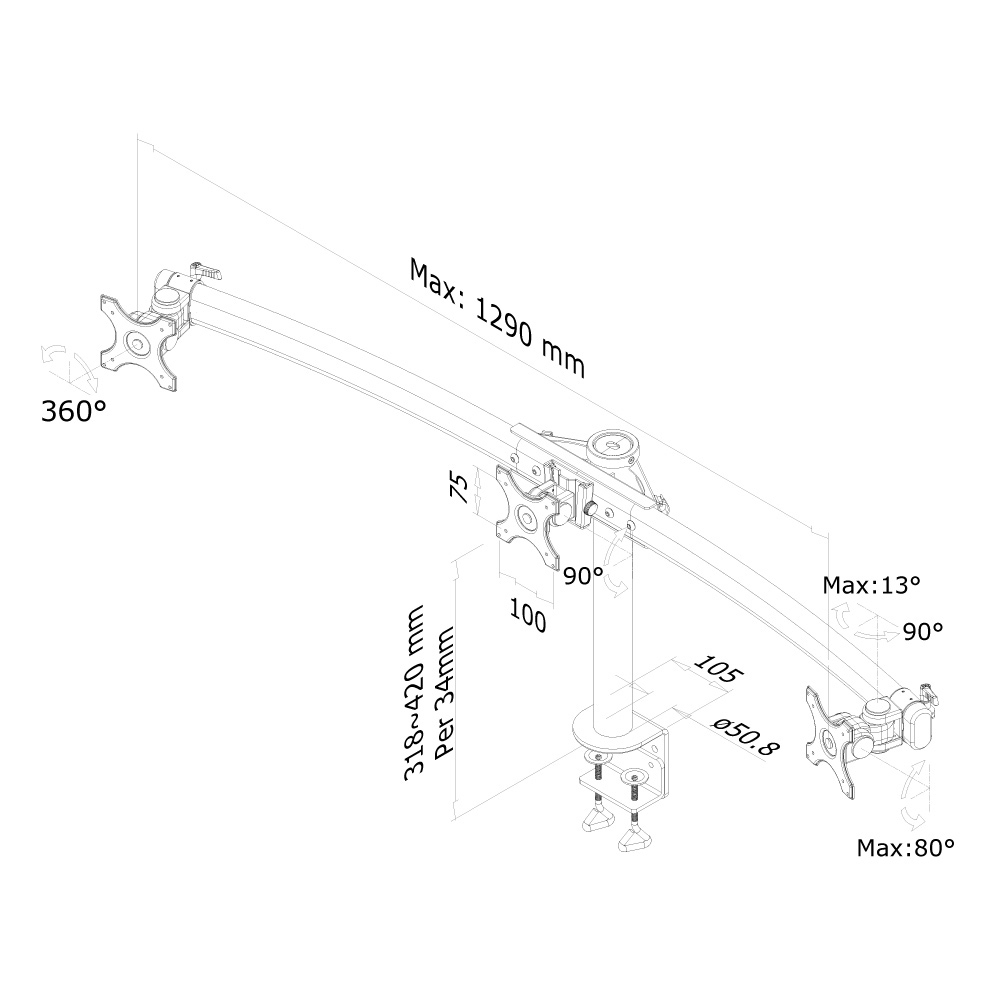

NewStar’s versatile rotate (360°) and swivel (45°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of the flat screen. The mount is manually height adjustable from 32 to 42 centimetres. Depth 7 centimetres. An innovative cable management conceals and routes cables from mount to flat screen. Hide your cables to keep the workplace nice and tidy.
NewStar FPMA-D700D3 has one pivot point and is suitable for screens up to 27″ (69 cm). The weight capacity of this product is 8 kg each screen. The desk mount is suitable for screens that meet VESA hole pattern 75×75 or 100x100mm. Different hole patterns can be covered using NewStar VESA adapter plates.
By using an ergonomic mount neck- and back complaints can be avoided. Ideal for use in offices and on counters or in a reception area.
All installation material is included with the product.
|Maximum weight capacity||8 kg|
|Maximum screen size compatibility||68.6 cm (27″)|
|Minimum screen size compatibility||25.4 cm (10″)|
|Minimum VESA mount||75 x 75 mm|
|Maximum VESA mount||100 x 100 mm|
|Number of displays supported||3|
|Distance to the wall (max)||7 cm|
|Height adjustment range||320 – 420 mm|
|Angle of rotation||360°|
|Package width||750 mm|
|Package depth||334 mm|
|Package height||160 mm|
|Master (outer) case width||75 cm|
|Master (outer) case length||33.4 cm|
|Master (outer) case height||16 cm|
|Quantity per master (outer) case||1 pc(s)|
|Country of origin||Taiwan|
