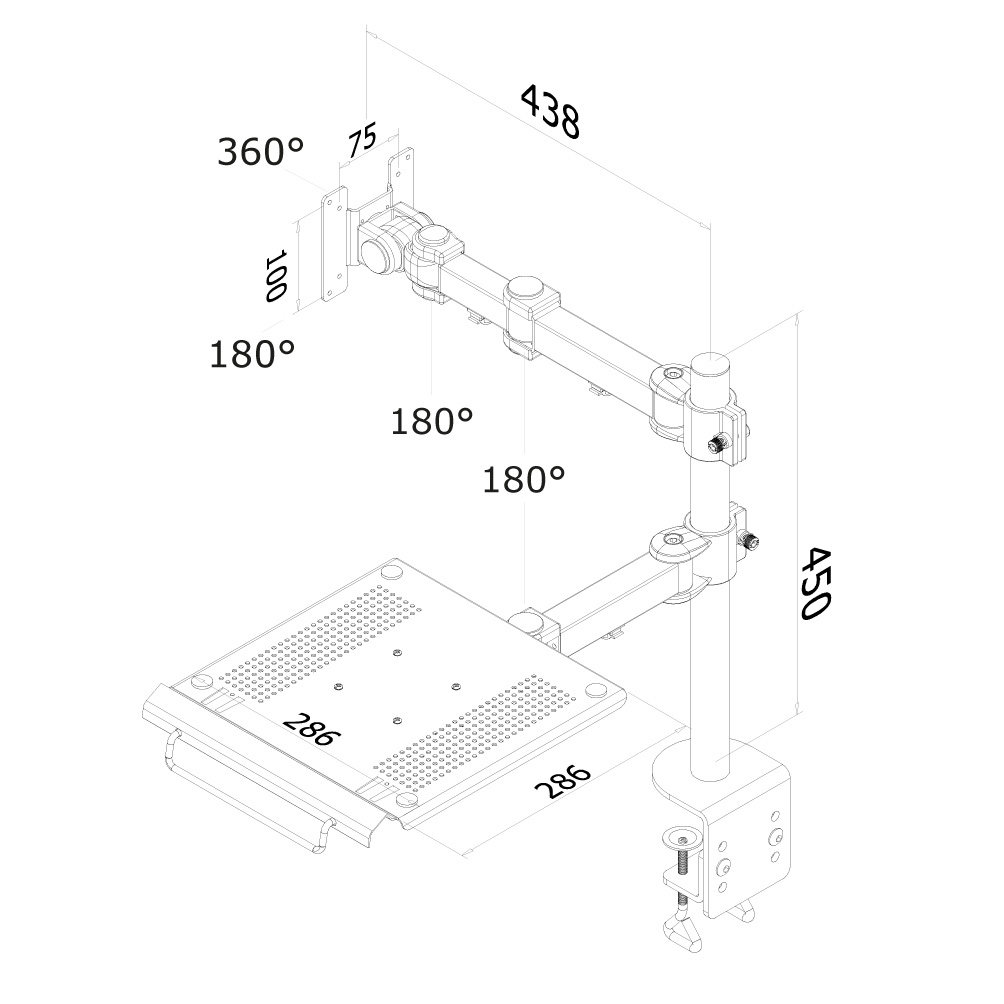

The NewStar desk mount, model FPMA-D960NOTEBOOK is a tilt-, swivel and rotatable desk mount for flat screens up to 27” notebooks up to 22″. This mount is a great choice for space saving placement on desks using a desk clamp.
NewStar’s versatile tilt (180°), rotate (360°) and swivel (180°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of the flat screen. The mount is manually height adjustable from 0 to 45 centimetres. Depth adjustable from 10 to 43 centimetres. An innovative cable management conceals and routes cables from mount to flat screen. Hide your cables to keep the workplace nice and tidy.
NewStar FPMA-D960NOTEBOOK has three pivot points and is suitable for screens up to 27″ (69 cm). The weight capacity of this product is 10 kg each screen and 15 kg each notebook. The desk mount is suitable for screens that meet VESA hole pattern 75×75 or 100x100mm. Different hole patterns can be covered using NewStar VESA adapter plates.
By using an ergonomic mount neck- and back complaints can be avoided. Ideal for use in offices and on counters or in a reception area.
All installation material is included with the product.
|Maximum weight capacity||10 kg|
|Maximum screen size compatibility||68.6 cm (27″)|
|Minimum screen size compatibility||25.4 cm (10″)|
|Minimum VESA mount||75 x 75 mm|
|Maximum VESA mount||100 x 100 mm|
|Number of displays supported||1|
|Distance to the wall (min)||10 cm|
|Distance to the wall (max)||43 cm|
|Height adjustment range||0 – 450 mm|
|Tilt angle range||0 – 180°|
|Angle of rotation||360°|
|Package width||579 mm|
|Package depth||315 mm|
|Package height||127 mm|
|Master (outer) case width||61 cm|
|Master (outer) case length||35 cm|
|Master (outer) case height||32 cm|
|Quantity per master (outer) case||2 pc(s)|
|Country of origin||China|
