An Essential Way of Delivering Dynamic Content
The SE3KE series satisfies a wide range of display purposes in your business while reducing operational costs with low power consumption. Easy-to-use menus designed for business purposes make for a more convenient and powerful display.
User-Friendly Menu for Digital Signage
With the signage dedicated home menu, users can check key information related to displays at a glance. On the bottom, the content management menu is provided, letting you explore and play available content and set playlists with desired schedules using a remote controller.
USB Content Scheduling & Data Cloning
USB content scheduling and cloning makes managing multiple displays more efficient for optimal content playback and operation, since users don’t have to set up each display one by one. Once users copy data to a USB in one display, it will be easily distributed to others through a USB plug-in.
A Wide Range of Interfaces
Thanks to its high compatibility with diverse interfaces, users can select among various input/output sources for optimal content playback and control.
Compatibility with AV Control Systems
The SE3KE series has been certified Crestron Connected for a higher level of compatibility with professional AV controls to achieve seamless integration and automated control1, boosting business management efficiency.
Detachable Logo & Built-in Speaker
The detachable logo makes it easy for the user to arrange the signage. Also, sounds can be played from built-in speakers, offering viewers various multi-media experiences.
Conformal Coating
The product can be often unavoidably exposed to dust and water during maintenance. Conformal coating on major circuit board eliminates such circumstances by protecting it against dust, iron powder, humidity, etc.
– Brightness(Typ.) : 350 cd/m²
– Bezel : 13 mm(T/R/L), 18 mm(B)
– Depth : 55.5 mm

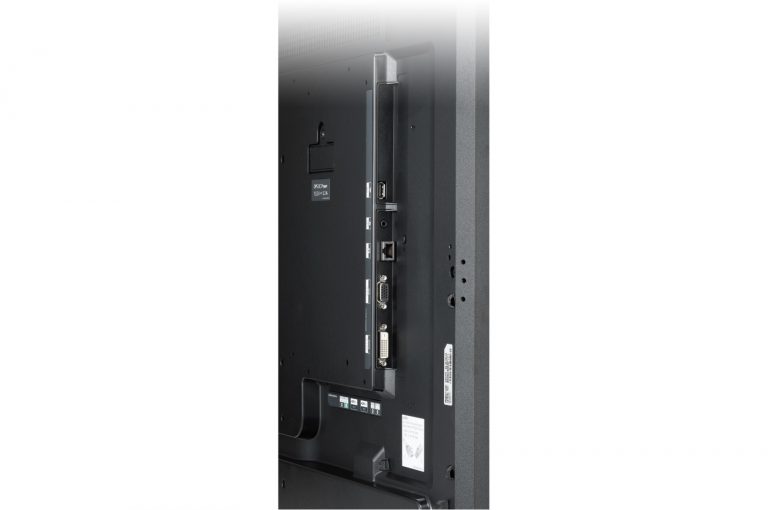

– Interface : HDMI(2)/ DVI-D/ RGB/ USB/ RS232C/ RJ45/ Audio/ IR
– Built-in Speaker(10W×2)
| Feature | Feature Value |
|---|---|
| Display diagonal | 81.3 cm (32″) |
| Display type | LED |
| Display resolution | 1920 x 1080 pixels |
| Display brightness | 350 cd/m² |
| HD type | Full HD |
| Touchscreen | N |
| HDMI ports quantity | 2 |
| VGA (D-Sub) input ports | 1 |
| USB port | Y |
| Ethernet LAN | Y |
| DVI-D ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Audio (L,R) in | 1 |
| Audio (L,R) out | 1 |
| RS-232C | Y |
| Remote (IR) input | 1 |
| Built-in speaker(s) | Y |
| Number of built-in speakers | 2 |
| RMS rated power | 20 W |
| Design | Digital signage flat panel |
| Product colour | Black |
| Placement supported | Indoor |
| VESA mounting | Y |
| Panel mounting interface | 200 x 200 mm |
| Bezel width (bottom) | 1.8 cm |
| Bezel width (side) | 1.3 cm |
| Bezel width (top) | 1.3 cm |
| Purpose | Corporate |
| Power consumption (typical) | 45 W |
| AC input voltage | 100 – 240 V |
| AC input frequency | 50 – 60 Hz |
| Width | 729.4 mm |
| Depth | 55.5 mm |
| Height | 428.9 mm |
| Weight | 5.4 kg |
| Width (with stand) | 729.4 mm |
| Depth (with stand) | 154.2 mm |
| Height (with stand) | 481 mm |
| Weight (with stand) | 6.2 kg |
| Package width | 810 mm |
| Package depth | 132 mm |
| Package height | 510 mm |
| Package weight | 6.7 kg |
| Handheld remote control | Y |
| Cables included | AC,VGA |
| Operating temperature (T-T) | 0 – 40 °C |
| Operating relative humidity (H-H) | 10 – 80% |
| Energy Star certified | Y |
