High-level performance without the high price

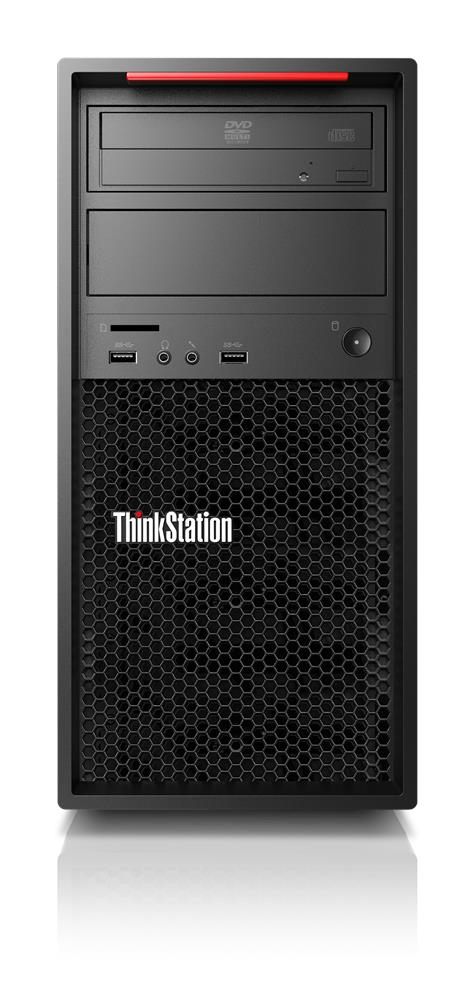

From large workloads to multitasking, the compact ThinkStation P520c breezes through it all. With cutting-edge processing, graphics, storage, and memory, this configurable 25 L workstation is a solid workhorse. Energy efficient and extremely reliable, it’s also ISV-certified and VR-ready. Equally impressive is the affordable price tag.

Real power at a reasonable price
For true processing power and blazing-fast visuals, power up the ThinkStation P520c. Fueled by the latest Intel® Xeon® processors and NVIDIA® Quadro® graphics, this compact 25 L workhorse can help you to get the job done, quickly and easily. What’s more, it comes at a very affordable price.

Configurable and reliable
The P520c can be configured to meet your specific needs, including up to 128 GB of memory and solid-state or hard disk drive storage options. One thing you won’t have to worry about, however, is reliability, which is the cornerstone of every ThinkStation.

Enhanced flexible design
With two M.2 PCIe solid state drive slots embedded in the motherboard, you can enjoy blistering-fast storage speeds. What’s more, the front FLEX module gives you a range of options and flexibility, including a media card reader and blazing-fast Intel® Thunderbolt™ 3 port.

Hassle-free, tool-free
Should you ever need to swap any components, there’s no need to worry about tools. Simply slide off the side panel and away you go. You may also wish to know that we can help automate many of the manual tasks associated with deploying new machines, from asset tagging to custom image loading.

Ready for anything, real or virtual
With virtual reality (VR), almost anything’s possible—from revolutionary designs to stunning special effects to highly complex simulations. With the powerful P520c and top-of-the range, high-performance NVIDIA Quadro® graphics (optional), a truly immersive VR experience awaits.

Built-in peace of mind
Like every ThinkStation before it, the P520c has undergone rigorous testing under extreme conditions. It’s also ISV-certified and boasts error-correcting code (ECC) memory, ensuring even greater accuracy and reliability.

A helping hand when you need it
You’ll be able to keep your P520c running at its peak thanks to Lenovo Workstation Diagnostics. Available for both desktop and smartphone, this intelligent app can help you diagnose and troubleshoot potential system issues by providing step-by-step guidance on optimal system performance. And should your machine ever fail to boot, an error code for additional assistance will be sent wirelessly to your smartphone.

In addition, there’s Lenovo Performance Tuner. Free to download and easy to use, this software can help you fine-tune your workstation to get even more out of it.

Better for the planet—and your bottom line
The P520c meets some of the world’s most comprehensive environmental standards. A GREENGUARD®-certified workstation, it has also been rated EPEAT Gold, ENERGY STAR 6.1, and up to 80 PLUS® Platinum PSU. And as a result of its energy efficiency, the P520c can even help lower your utility bills.

class=”generic”>

Processor Processor cache type Smart Cache Processor cache 8.25 MB Processor frequency 3.6 GHz Processor model W-2223 Number of processors installed 1 Processor manufacturer Intel Processor boost frequency 3.9 GHz Processor threads 8 Processor cores 4 Processor family Intel Xeon W Memory ECC Yes Memory layout (slots x size) 1 x 16 GB Internal memory 16 GB Maximum internal memory 128 GB Memory slots 4x DIMM Internal memory type DDR4-SDRAM Memory clock speed 2933 MHz Storage Storage media SSD Optical drive type DVD±RW SSD interface NVMe,PCI Express SSD capacity 512 GB Number of SSDs installed 1 Card reader integrated Yes Compatible memory cards SD Total storage capacity 512 GB SSD form factor M.2 Graphics Discrete graphics adapter No On-board graphics adapter No Discrete graphics adapter model Not available On-board graphics adapter model Not available Optical drive Optical drive type DVD±RW Network Ethernet LAN Yes Wi-Fi No Wake-on-LAN ready Yes Ethernet LAN data rates 10,100,1000 Mbit/s Cabling technology 10/100/1000Base-T(X) Ports & interfaces USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 6 USB 2.0 ports quantity 2 Serial ports quantity 1 PS/2 ports quantity 2 Microphone in Yes Line-out Yes Line-in Yes Headphone outputs 1 Ethernet LAN (RJ-45) ports 1 DVI port No Expansion slots PCI Express x4 (Gen 3.x) slots 1 PCI Express x8 (Gen 3.x) slots 1 PCI Express x16 (Gen 3.x) slots 2 Technical details Number of 2.5″ bays 4 Cable lock slot type Kensington Product type Workstation Trusted Platform Module (TPM) Yes Product colour Black Chassis type Tower Audio system High Definition Audio Placement supported Vertical Number of 3.5″ bays 4 Compatible processor series Intel Xeon W Cable lock slot Yes Motherboard chipset Intel® C422 Design Volume 25 L Number of 2.5″ bays 4 Cable lock slot type Kensington Product colour Black Chassis type Tower Placement supported Vertical Number of 3.5″ bays 4 Cable lock slot Yes Performance Audio chip Realtek ALC662 Market positioning Business Password protection Yes Password protection type Power on,Supervisor Product type Workstation Trusted Platform Module (TPM) Yes Audio system High Definition Audio Compatible processor series Intel Xeon W Motherboard chipset Intel® C422 Software Operating system language English Operating system architecture 64-bit Operating system installed Windows 10 Pro for Workstations Power 80 PLUS certification 80 PLUS Platinum Power supply input frequency 50 – 60 Hz Power supply input voltage 100 – 240 V Power supply 500 W Operational conditions Operating altitude -15.2 – 3048 m Storage temperature (T-T) -10 – 60 °C Operating relative humidity (H-H) 10 – 80% Storage relative humidity (H-H) 10 – 90% Operating temperature (T-T) 10 – 35 °C Certificates Certification GreenGuard, ISV RoHS compliance Yes EPEAT compliance Silver Energy Star certified Yes Weight & dimensions Volume 25 L Width 175 mm Depth 426 mm Height 376 mm Weight 14.5 kg Packaging content Mouse included Yes Keyboard layout QWERTY Display included No Keyboard included Yes Mouse included on selected markets only Yes Keyboard included on selected markets only Yes Other features Trusted Platform Module (TPM) Yes On-board graphics adapter No Processor manufacturer Intel

---
