Ideal for industrial applications and extreme conditions.

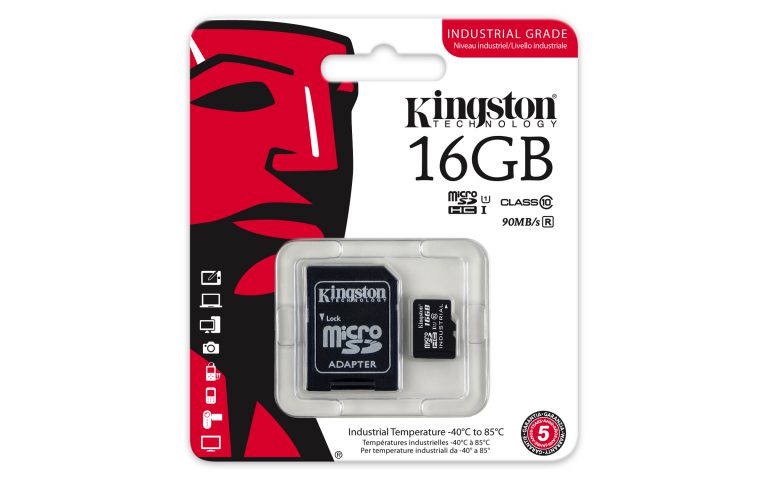

Kingston’s Industrial Temperature microSD UHS-I has an operating temperature rating of -40°C to 85°C, making it suitable for harsh environments. Its high operating temperature rating means it stands up to extreme heat in the desert and in test and measurement situations where standard microSD cards may fail, while its low operating temperature rating allows for use in below freezing weather, where equipment may be left outside for extended periods of time. Its high insertion rating is ideal for applications in which the card will be frequently accessed and removed from host devices, and its MLC NAND allows for large amounts of data to be written to the card.
Kingston® tests these cards extensively during pre-production and new build qualifications. Cards must pass thermal cycle testing, with interval testing at various extreme temperatures; vigorous temperature humidity bias, comprised of several hundred hours of testing to ensure durability at different humidity levels; and wide temp chamber testing. In addition, these cards are tested to be waterproof*, temperature proof**, shock/vibration proof*** and X-ray proof****. So you can rest assured your photos, videos and other important files will be protected.
With UHS-I Speed Class U1 speeds up to 90MB/s read and 45MB/s write, the card is ideal for applications requiring greater bandwidth when recording large datasets. Higher sustained write speeds ensure data integrity by reducing transmission stutter, and the card also offers faster upload times when transferring files to a PC. The smallest available SD card, it is the standard expandable storage option for many GPS, tablets, smartphones and industrial devices and, with the included adapter, can be used in standard size SDHC/SDXC host devices.
*IEC/EN 60529 IPX7 certified for protection against continual water submersion up to 30 min. and depth up to 1m.
**Withstands temperature range from -40 °C to 85 °C
***Based on MIL-STD-883H, METHOD 2002.5 military standard test method.
****ISO 7816-1 certified for protection against 0.1 Gy of X-ray radiation to both sides of card.
– Industrial grade card ideal for extreme conditions
– Extensively tested for industrial applications
– UHS-I Speed Class U1
– Small form factor.
|Flash card type||MicroSDHC|
|Flash memory class||Class 10|
|Read speed||90 MB/s|
|Write speed||45 MB/s|
|Internal memory type||UHS-I|
|Protection features||Freeze resistant,Heat resistant,Shock resistant,Temperature proof,Vibration proof,Water resistant|
|Windows operating systems supported||Y|
|Mac operating systems supported||Y|
|Linux operating systems supported||Y|
|Memory voltage||3.3 V|
|Operating temperature (T-T)||-40 – 85 °C|
|Quantity per pack||1 pc(s)|
|Supported file systems||FAT32|
|SD adapter dimensions (WxDxH)||24 x 32 x 2.1 mm|
