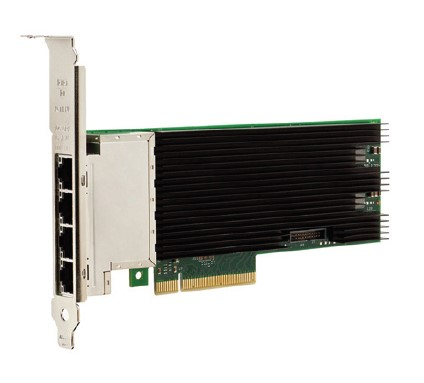

Intel® Ethernet Converged Network Adapters X710
Intel continues its history of Ethernet leadership by introducing the latest 10 gigabit family of adapters, powered by the Intel® Ethernet Controller X710.
The Intel® Ethernet Converged Network Adapter X710 family addresses the demanding needs of the next-generation agile data center by providing unmatched features for virtualization, flexibility for LAN and SAN networking, and proven reliable performance.
The family of adapters delivers superior performance up to 80 Gb/s (40 Gb/s Tx, 40 Gb/s Rx) bidirectional throughput (quad-port adapter required) in a PCI Express v3.0 x8 slot.
| Feature | Feature Value |
|---|---|
| Connectivity technology | Wired |
| Host interface | PCI Express |
| Interface | Ethernet |
| Ethernet LAN (RJ-45) ports | 4 |
| Maximum data transfer rate | 10000 Mbit/s |
| Networking standards | IEEE 802.1Q,IEEE 802.1p,IEEE 802.3,IEEE 802.3ad |
| Ethernet LAN | Y |
| Ethernet interface type | 10 Gigabit Ethernet |
| Ethernet LAN data rates | 100,1000,10000 Mbit/s |
| Cabling technology | 10/100/1000BaseT(X) |
| Supported network protocols | TCP, UDP, IP |
| Quality of Service (QoS) support | Y |
| iSCSI support | Y |
| LAN controller | Intel® X557, Intel® XL710 |
| Internal | Y |
| Recommended usage | Server |
| Product colour | Black,Green |
| PCI Card form factor | Full-height |
| LED indicators | Y |
| Certification | Class A: USA-FCC; Canada – ICES-003/NMB-003, European Union – CE, Japan – VCCI, Taiwan – BSMI, Korea – MSIP, Australia/New Zealand – RCM, SafetynEN/UL and CSA C22.2 60950-l| |
| Power consumption (typical) | 24.69 W |
| Operating temperature (T-T) | 0 – 55 °C |
| Storage temperature (T-T) | -40 – 70 °C |
| Storage relative humidity (H-H) | 0 – 90% |
| Harmonized System (HS) code | 8517620090 |
| Compatible operating systems | https://www.intel.com/content/www/us/en/support/articles/000025890/network-and-i-o/ethernet-products.html |
| Linux operating systems supported | Y |
| Other operating systems supported | FreeBSD |
| Server operating systems supported | Windows Server 2008 R2,Windows Server 2012,Windows Server 2012 R2,Windows Server 2016 |
| Width | 68.7 mm |
| Depth | 167.1 mm |
| Quantity | 1 |
| Cable type | RJ-45 Category-6 up to 55m; Category-6A up to 100m |
| Intel Virtual Machine Device Queues (VMDq) | Y |
| PCI-SIG* SR-IOV Capable | Y |
| On-chip QoS and Traffic Management | Y |
| Intel Flexible Port Partitioning | Y |
| Storage-over-ethernet | Y |
| Low halogen options available | N |
| Intelligent Offloads | Y |
| iWARP/RDMA | N |
| Fiber Channel over Ethernet | Y |
| Intel Data Direct I/O Technology | Y |
| Intel Virtualization Technology for Connectivity (VT-c) | Y |
| Interface type | PCIe v3.0 (8.0GT/s) |
| Halogen free | N |
| Market segment | LAD |
| Product type | Network Interface Card |
| Ethernet adapter ARK ID | 93428 |
| Controller type | Intel® Ethernet Controller XL710 |
| Cabling type | RJ-45 Category-6 up to 55m; Category-6A up to 100m |
| Storage Over Ethernet | iSCSI, NFS |
| Bracket height | Low Profile and Full Height |
| Launch date | Q4’16 |
| Network interface card cable medium | Copper |
| Network interface card type | Server |
| Product brief URL | http://www.intel.com/content/www/us/en/ethernet-products/converged-network-adapters/ethernet-x710-t4-brief.html |
| Status | Launched |
| Last change | 64826840 |
| Product family | Intel 10 Gigabit server adapter |
| Product series | Intel Converged X710 |
