Intel® Optane™ Memory Supported
Intel® Optane™ memory is a revolutionary new class of non-volatile memory that sits in between system memory and storage to accelerate system performance and responsiveness. When combined with the Intel® Rapid Storage Technology Driver, it seamlessly manages multiple tiers of storage while presenting one virtual drive to the OS, ensuring that data frequently used resides on the fastest tier of storage. Intel® Optane™ memory requires specific hardware and software configuration.
Intel® Virtualization Technology for Directed I/O (VT-d)
Intel® Virtualization Technology for Directed I/O (VT-d) continues from the existing support for IA-32 (VT-x) and Itanium® processor (VT-i) virtualization adding new support for I/O-device virtualization. Intel VT-d can help end users improve security and reliability of the systems and also improve performance of I/O devices in virtualized environments.
Intel® vPro™ Technology
Intel® vPro™ Technology is a set of security and manageability capabilities built into the processor aimed at addressing four critical areas of IT security: 1) Threat management, including protection from rootkits, viruses, and malware 2) Identity and web site access point protection 3) Confidential personal and business data protection 4) Remote and local monitoring, remediation, and repair of PCs and workstations.
| Feature | Feature Value |
|---|---|
| Built-in processor | Y |
| Processor family | 7th gen Intel® Core™ i5 |
| Processor model | i5-7300U |
| Processor frequency | 2.60 GHz |
| Processor cores | 2 |
| Processor threads | 4 |
| Processor lithography | 14 nm |
| Processor boost frequency | 3.50 GHz |
| L3 cache | 3 MB |
| Thermal Design Power (TDP) | 15 W |
| Memory slots type | SO-DIMM |
| Number of memory slots | 2 |
| Number of DIMM slots | 2 |
| Maximum internal memory | 32 GB |
| Supported memory clock speeds | 2133 MHz |
| Supported memory types | DDR4-SDRAM |
| Memory channels | Dual |
| Memory voltage | 1.2 V |
| ECC | N |
| Supported storage drive types | HDD,SSD |
| Storage drive sizes supported | 2.5″ |
| Storage drive interface | M.2,PCI Express,Serial ATA III |
| Number of storage drives supported | 1 |
| RAID levels | 0,1 |
| On-board graphics adapter | Y |
| Graphics adapter family | Intel |
| Graphics adapter | HD Graphics 620 |
| Number of displays supported | 2 |
| Ethernet LAN | Y |
| Wi-Fi | Y |
| Wi-Fi standards | 802.11a,Wi-Fi 5 (802.11ac),802.11b,802.11g,Wi-Fi 4 (802.11n) |
| LAN controller | Intel® I219-LM |
| Bluetooth | Y |

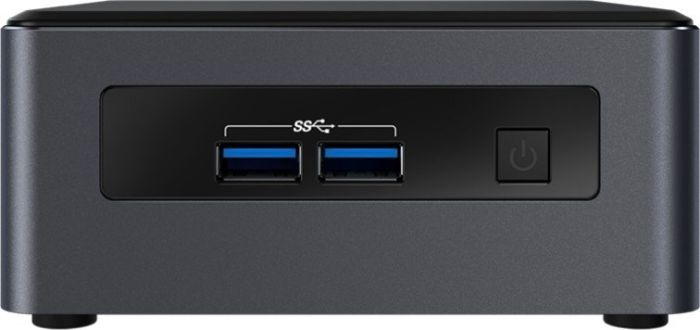

| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |

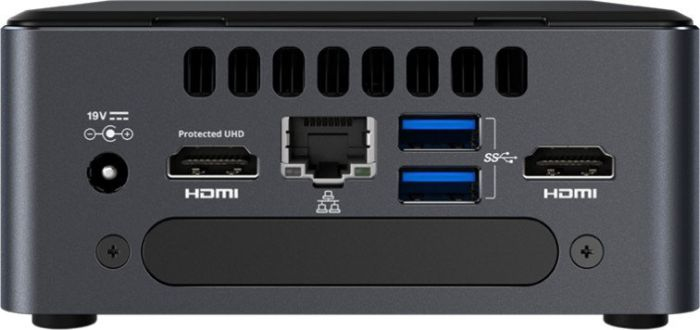

| HDMI ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI version | 2.0a |
| Serial port via internal header | Y |
| Number of SATA III connectors | 2 |
| M.2 card slot (wireless) | 22×30 (key E) slot |
| USB ports quantity | 4 |
| M.2 card slot (storage) | 22×80 (key M) slot |
| DC-in jack | Y |
| PCI Express slots version | 3.0 |
| PCI Express x4 slots | 1 |
| Chassis type | UCFF |
| Product colour | Black |
| Cooling type | Active |
| Product type | Mini PC barebone |
| On/off switch | Y |
| LED indicators | HDD,Power |
| ARK ID | 122488 |
| Processor socket | BGA 1356 |
| Number of processors supported | 1 |
| Trusted Platform Module (TPM) | Y |
| Trusted Platform Module (TPM) version | 2.0 |
| Audio output channels | 7.1 channels |
| Compatible operating systems | Windows 10, 64-bit*, Windows 10 IoT Enterprise*, Windows Server 2016* |
| Harmonized System (HS) code | 8471500150 |
| Embedded options available | Y |
| Intel® Virtualization Technology (Intel® VT) | VT-d,VT-x |
| Intel Rapid Storage Technology | Y |
| Intel® vPro™ Technology | Y |
| Intel® AES New Instructions (Intel® AES-NI) | Y |
| Intel® Quick Sync Video Technology | Y |
| Intel® Clear Video HD Technology (Intel® CVT HD) | Y |
| Intel® Turbo Boost Technology | 2.0 |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Y |
| Intel Virtualization Technology for Directed I/O (VT-d) | Y |
| Intel VT-x with Extended Page Tables (EPT) | Y |
| Intel 64 | Y |
| Intel® My WiFi Technology (Intel® MWT) | Y |
| Idle States | Y |
| Enhanced Intel SpeedStep Technology | Y |
| Thermal Monitoring Technologies | Y |
| Intel Flex Memory Access | Y |
| Intel Trusted Execution Technology | Y |
| Execute Disable Bit | Y |
| Intel TSX-NI | Y |
| Intel® Secure Key | Y |
| Intel® Smart Response Technology | Y |
| Intel Stable Image Platform Program (SIPP) | Y |
| Intel® OS Guard | Y |
| Intel Clear Video Technology | Y |
| Intel® Optane™ Memory Ready | Y |
| Intel® Platform Trust Technology (Intel® PTT) | N |
| Intel Virtualization Technology (VT-x) | Y |
| Power supply type | External AC adapter |
| Power supply | 65 W |
| AC adapter output voltage | 12-19 V |
| Operating temperature (T-T) | 0 – 40 °C |
| Storage temperature (T-T) | -20 – 60 °C |
| Width | 115 mm |
| Depth | 111 mm |
| Height | 56 mm |
| AC adapter included | Y |
| Number of SATA connectors | 2 |
| DC input voltage | 12-24 DC |
| Graphics output | Dual HDMI 2.0a, 4-lane eDP 1.4 |
| Status | Launched |
| Product family | Intel® NUC Kits |
| Product series | Intel® NUC Kit with 7th Generation Intel® Core™ Processors |
| Product codename | Dawson Canyon |
| Supported RAID configuration | 2.5″ HDD/SSD + M.2 SATA SSD (RAID-0 RAID-1) |
| Intel® vPro™ Platform Eligibility | Y |
| Processor included | Intel® Core™ i5-7300U Processor (3M Cache, up to 3.50 GHz) |
