SKU: T1731SR-W5 Category:

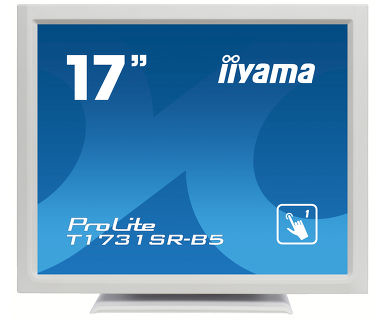

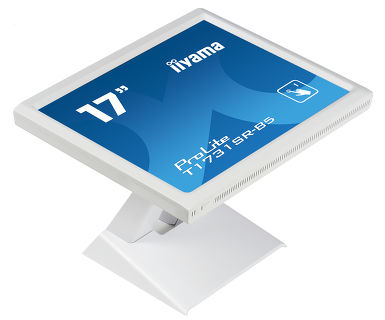

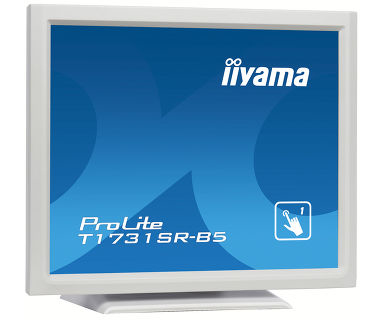

iiyama ProLite T1731SR-W5 touch screen monitor 43.2 cm (17″) 1280 x 1024 pixels White Single-touch

* Images are for illustrative purposes only.

£315.23 £262.69 Ex. VAT

Free UK Shipping Available*

Availability: 4 in stock

Finance/leasing available for orders over £1000 Inc VAT

Free mainland UK shipping on orders over £150 Ex VAT

ProLite T1731SR-W5 is based on 5 wire resistive touch technology. The price / performance ratio is ideal for the budget conscious user while quality and performance are certainly not compromised. The display inputs include both analogue and digital (VGA, HDMI and DisplayPort) with touchscreen connectivity via USB offering great flexibility. A solid and steady base supports the touchscreen with an adjustable stand offering full 90-degree angles. The ProLite T1731SR-W5 can be used in a variety of environments, especially recommended for shops, restaurants and industrial purposes. Available in black and white.

Feature Feature Value
Display diagonal 43.2 cm (17″)
Response time 5 ms
Display brightness 200 cd/m²
Display technology TN
Contrast ratio (typical) 1000:1
Display resolution 1280 x 1024 pixels
Aspect ratio 5:4
Anti-glare surface Y
Pixel pitch 0.264 x 0.264 mm
Horizontal scan range 31 – 80 kHz
Vertical scan range 50 – 75 Hz
Viewing angle, horizontal 170°
Viewing angle, vertical 160°
Display viewable area (HxV) 338 x 270 mm
Separate H/V sync Y
Full HD N
Display diagonal (metric) 43 cm
Display number of colours 16.78 million colors
Product colour White
International Protection (IP) code IP54
Touch technology Single-touch
Touchscreen technology Resistive
Built-in camera N
Megapixel 1.3 MP
Built-in speaker(s) Y
RMS rated power 2 W
Number of OSD languages 7
On Screen Display (OSD) languages Simplified Chinese, German, English, Spanish, French, Italian, Japanese
Number of speakers 2
Card reader integrated N
Windows operating systems supported Y
Linux operating systems supported Y
Plug and Play Y
HDMI ports quantity 1
VGA (D-Sub) ports quantity 1
DisplayPorts quantity 1
Audio input 1
Wall mountable Y
Tilt angle range -5 – 90°
Panel mounting interface 100 x 100 mm
Tilt adjustment Y
Cable lock slot Y
LED indicators Y
VESA mounting Y
Cable lock slot type Kensington
Power supply type AC
Power consumption (typical) 20 W
Power consumption (standby) 2 W
AC input voltage 100 – 240 V
AC input frequency 50 / 60 Hz
Power management Y
Energy efficiency class A
Operating temperature (T-T) 0 – 40 °C
Storage temperature (T-T) -20 – 60 °C
Operating relative humidity (H-H) 20 – 80%
Storage relative humidity (H-H) 10 – 90%
Certification CB, CE, TÜV-Bauart, VCCI, GOST
Width 387 mm
Height 342 mm
Depth 201 mm
Weight 5.8 kg
Cables included AC,Audio (3.5mm),DisplayPort,HDMI,USB
Quick start guide Y
Display diagonal

43.2 cm (17")

DisplayPorts quantity



387 mm

Energy efficiency class


Aspect ratio


VESA mounting


Touch technology


Panel mounting interface

100 x 100 mm

Wall mountable




Display brightness

200 cd/m²

Card reader integrated


HDMI ports quantity


Number of speakers



1.3 MP

Touchscreen technology


Full HD


Display resolution

1280 x 1024 pixels

Display technology



5.8 kg
