Honeywell Genesis 7580g 1D/2D Black,Silver Fixed bar code reader

SKU: MK7580-30C41-02 Category:

Honeywell Genesis 7580g 1D/2D Black,Silver Fixed bar code reader

RS232 Kit: 1D, PDF417, 2D, black scanner (7580g-2), RS232 Cable 5V (CBL-020-300-C00), EU power supply (46-00526) and documentation

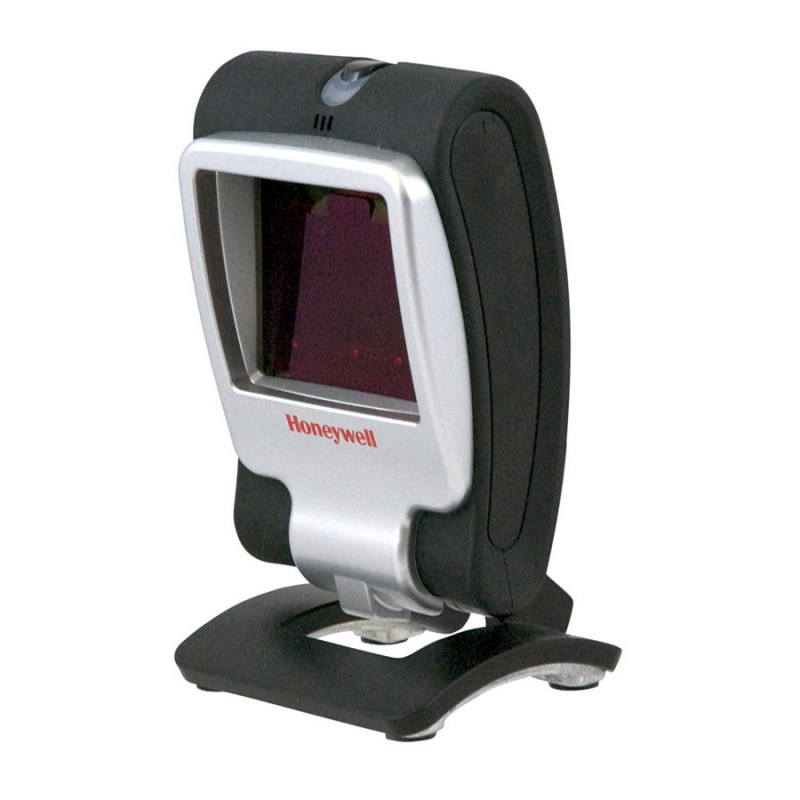

* Images are for illustrative purposes only.

£100.62 £83.85 Ex. VAT

Out of stock

Finance/leasing available for orders over £1000 Inc VAT

Free mainland UK shipping on orders over £150 Ex VAT

Honeywell Genesis 7580g Fixed bar code reader 1D/2D Black,Silver

Manufacturer: Honeywell
Category: Printers & Scanners
Sub-Category: Barcode Readers
SKU: MK7580-30C41-02
EAN: 5705965992340 4054318307784 5054629693209 4250389260199 5053973677576


Honeywell’s Genesis
Honeywell’s Genesis 7580g, the world’s first presentation area-imaging scanner engineered to decode all standard 1D, PDF and 2D codes, provides enhanced productivity and revolutionary imaging technology in an elegant, yet durable design.
Powered by Adaptus Imaging Technology 6.0, the Genesis 7580g is redefining industry standards for imaging solutions. Breakthrough performance and a versatile form factor make this product suitable for environments ranging from manufacturing to healthcare to retail POS. Aggressive reading of bar codes on highly reflective surfaces, such as mobile phone screens, eliminates the need to purchase additional specialty hardware.
Patented CodeGate technology along with an activation button support menu-scanning and other targeted-scanning applications.
Automatic cable detection and configuration simplifies migration to a new interface by eliminating the need to scan programming bar codes. Three additional patented technologies augment the Genesis 7580g’s unmatched feature set:
Shielded LEDs minimize the intense flashing common among other area imagers.
CodeSelect allows the Genesis 7580g to capture up to 15 bar codes in a single flash and output data in any predetermined order.
TotalFreedom expands scanner functionality by allowing decoding and formatting plug-ins to be loaded directly onto the Genesis 7580g, enabling enterprises to rapidly support proprietary or newly-developed symbologies.


Type Fixed bar code reader
Motion tolerance (cm/s) 200
Scanner type 1D/2D
Pitch reading angle -70 – 70°
Light levels (direct sunlight) 0 – 100000 lx
Ports & interfaces
Connectivity technology Wired
Standard interfaces RS-232
Type Fixed bar code reader
Product colour Black,Silver
Power consumption (typical) 2 W
Power consumption (standby) 0.5 W
Input voltage 5.5 V
Light levels (direct sunlight) 0 – 100000 lx
Weight & dimensions
Width 83 mm
Depth 80 mm
Height 150 mm
Weight 340 g
Technical details
Type Fixed bar code reader
Product colour Black,Silver
Packaging data
Cables included RS-232
Operational conditions
Storage temperature (T-T) -40 – 60 °C
Operating temperature (T-T) 0 – 40 °C
Operating relative humidity (H-H) 0 – 95%
Light levels (direct sunlight) 0 – 100000 lx
Packaging content
Cables included RS-232
