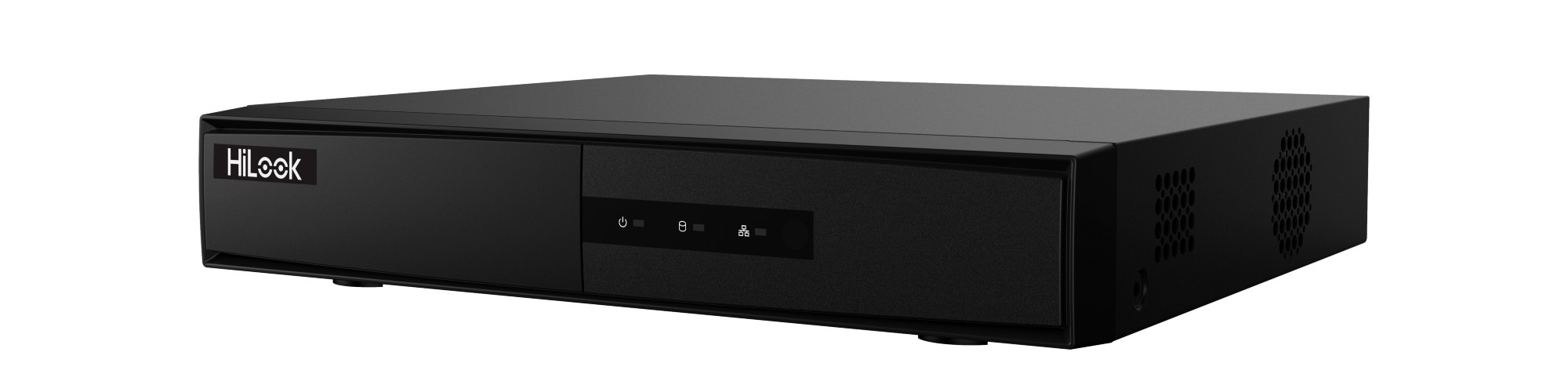

HiLook NVR-108MH-D/8P network video recorder 1U Black
| Manufacturer: | HiLook |
| Category: | Home |
| Sub-Category: | Network Video Recorders (NVR) |
| SKU: | NVR-108MH-D/8P |
| EAN: | 6954273665524 |
Description
Video Input and Transmission
Connectable to the third-party network cameras
Up to 8 network cameras can be connected
Compression and Recording
H.265+/H.265 compression effectively reduces the storage space and costs
Full channel recording at up to 4 MP resolution
HD Video Output
HDMI/VGA output at 1080p resolution
Storage and Playback
1-ch playback at 4 MP resolution or 2-ch at 1080p resolution
1 SATA hard disk can be connected with 6TB capacity
Smart Function
Supports line crossing and intrusion detection
Smart search for the selected area in the video; and smart playback to improve the playback efficiency
One-key operation: automatically search, modify and add IP cameras after device is activated
Network & Ethernet Access
Hik-Connect for easy network management
100 Mbps Ethernet network interface
4/8 independent 100 Mbps built-in switch network interfaces
Specifications
| Performance | |
|---|---|
| Video input channels | 8 channels |
| Maximum resolution | 1920 x 1080 pixels |
| Video formats supported | H.264,H.264+,H.265,H.265+ |
| Supported network protocols | TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP,UPnP |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Supported resolutions | 1920 x 1080, 1280 x 1024, 1280 x 720, 1024 × 768 |
| Networking standards | IEEE 802.3af,IEEE 802.3at |
| Number of simultaneously playbacked channels | 8 channels |
| Video recording modes | 720p,1080p |
| Output bandwidth | 60 Mbit/s |
| Input bandwidth | 60 Mbit/s |
| Wireless LAN features | |
| Wi-Fi | No |
| Storage | |
| Number of hard drives supported | 1 |
| Maximum storage capacity | 6 TB |
| Hard drive interface | Serial ATA |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 1 |
| Power over Ethernet (PoE) | Yes |
| VGA (D-Sub) output ports | 1 |
| HDMI output | Yes |
| USB 2.0 ports quantity | 2 |
| Supported network protocols | TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP,UPnP |
| DC-in jack | Yes |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Power over Ethernet (PoE) ports quantity | 8 |
| Networking standards | IEEE 802.3af,IEEE 802.3at |
| HDMI ports quantity | 1 |
| Features | |
| LED indicators | Yes |
| Rack capacity | 1U |
| Product colour | Black |
| Power | |
| Power | 90 W |
| Power consumption (typical) | 10 W |
| Total Power over Ethernet (PoE) budget | 75 W |
| Operational conditions | |
| Operating temperature (T-T) | -10 – 55 °C |
| Operating relative humidity (H-H) | 10 – 90% |
| Weight & dimensions | |
| Width | 260 mm |
| Depth | 225 mm |
| Height | 48 mm |
| Weight | 1 kg |
| Package width | 400 mm |
| Package depth | 275 mm |
| Package height | 80 mm |
| Package weight | 1.96 kg |
