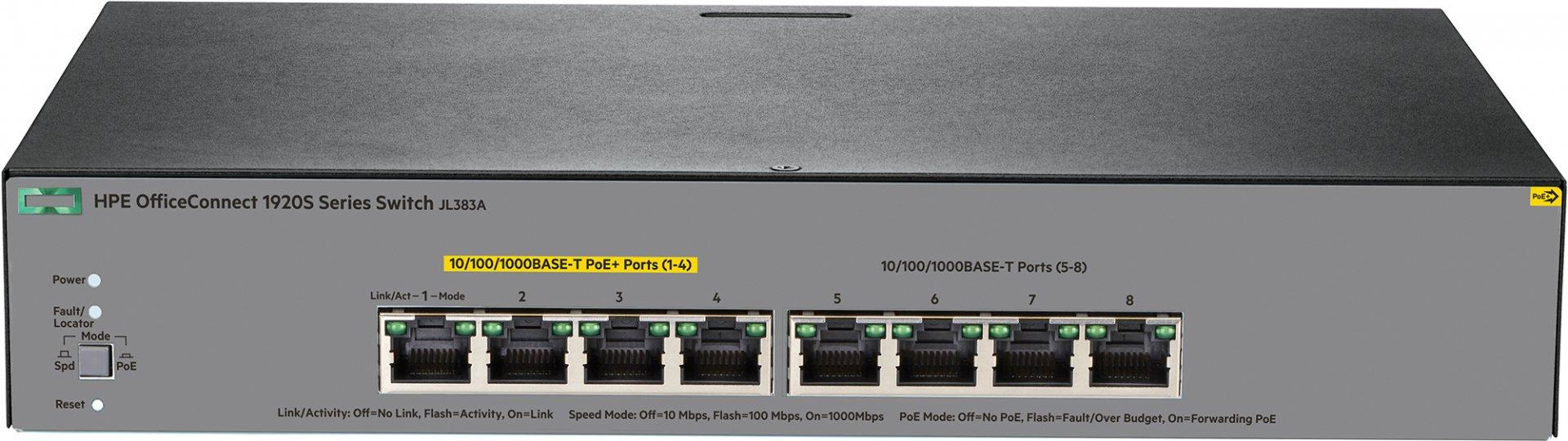

Hewlett Packard Enterprise OfficeConnect 1920S 8G PPoE+ 65W + 3x Aruba Instant On AP12 (RW) Managed L3 Gigabit Ethernet (10/100/1000) Grey 1U Power over Ethernet (PoE)

Manufacturer: | Hewlett Packard Enterprise |
Category: | Networking |
Sub-Category: | Network Switches |
SKU: | JL383A+R2X01AX3 |
EAN: |
Description
The HPE OfficeConnect 1920S Switch Series, is designed for small businesses that require enhanced performance to support bandwidth-demanding applications. They are ideal for environments that require advanced features for granular control and where smart-managed flexibility is a must for easy network configuration and management. The switches are advanced smart-managed fixed configuration Gigabit switches that are optimized for small business price/performance. They offer 8-, 24- and 48-port configurations, choice of PoE+ and non-PoE+ models; some include SFP slots for fiber connectivity.
What’s new
– Six new advanced smart managed fixed-configuration lite Layer 3 Gigabit switches for affordable high-performance connectivity.
– Non-PoE and PoE+ 8-, 24- and 48-port models for deployment flexibility.
– Simple and consistent Web interface for easy switch configuration.
– Limited Lifetime Warranty
Features
Simplifies Network Deployment and Management for Small Organizations
– The HPE OfficeConnect 1920S Switch Series features easy-to-use, out of the box, plug-and-play deployment.
– The series offers a complete portfolio of choices for increased small business flexibility. It consists of six rack-mountable models including 8G-, 24G- and 48G-port with and without PoE+. The 24G- and 48G-port PoE+ models offer SPF fiber connectivity.
– These smart-managed switches use an intuitive Web management interface, to simplify deployment and management while offering granular control of key features.
Keeps Your Business Protected with Enhanced Security
– The HPE OfficeConnect 1920S Switch Series supports Energy Efficient Ethernet for lower power consumption and an enhanced feature set for more robust operation.
– Enhanced security features such as Access Control List, IEEE 802.1x and VLANs guard your network from unwanted or unauthorized access.
– Management security restricts access to critical configuration commands, offers multiple privilege levels with password protection and supports secure http (https).
Delivers Better Performance at a Lower Total Cost of Ownership
– The HPE OfficeConnect 1920S Switch Series delivers advanced functionality in smart-managed switches, including Layer 3 static routes, SFP ports, rate limiting, link aggregation and IGMP.
– The switch series includes PoE+ options to power IP devices without the cost of additional cabling.
– Green features like port shutdown and Energy Efficient Ethernet compliance for greater energy-efficiency.
– The switch series is covered by the Limited Lifetime Warranty with 24×7 phone support for 90 days and business hours thereafter.
Specifications
Ports & interfaces | |
---|---|
Copper ethernet cabling technology | 10BASE-T,100BASE-TX,1000BASE-T |
Basic switching RJ-45 Ethernet ports quantity | 8 |
Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
Networking | |
IGMP snooping | Yes |
Auto-sensing | Yes |
Copper ethernet cabling technology | 10BASE-T,100BASE-TX,1000BASE-T |
Networking standards | IEEE 802.3,IEEE 802.3ab,IEEE 802.3u |
Full duplex | Yes |
VLAN support | Yes |
Spanning tree protocol | Yes |
Rate limiting | Yes |
Port mirroring | Yes |
Flow control support | Yes |
Auto MDI/MDI-X | Yes |
10G support | No |
Virtual LAN features | |
VLAN support | Yes |
Performance | |
Packet buffer memory | 1.5 MB |
Stackable | Yes |
Processor frequency | 400 MHz |
Memory type | SDRAM |
Internal memory | 256 MB |
Flash memory | 64 MB |
Built-in processor | Yes |
Technical details | |
Form factor | 1U |
Product colour | Grey |
Stackable | Yes |
Processor frequency | 400 MHz |
Rack mounting | Yes |
Built-in processor | Yes |
Management features | |
Switch type | Managed |
Web-based management | Yes |
Quality of Service (QoS) support | Yes |
Switch layer | L3 |
Data transmission | |
Throughput | 11.9 Mpps |
Latency (10-100 Mbps) | 7 µs |
Latency (1 Gbps) | 2.3 µs |
Packet buffer memory | 1.5 MB |
MAC address table | 8000 entries |
Switching capacity | 16 Gbit/s |
Jumbo frames support | Yes |
Security | |
SSH/SSL support | Yes |
IGMP snooping | Yes |
Access Control List (ACL) | Yes |
DHCP features | DHCP client |
Memory | |
Packet buffer memory | 1.5 MB |
Memory type | SDRAM |
Internal memory | 256 MB |
Flash memory | 64 MB |
Design | |
Form factor | 1U |
Product colour | Grey |
Stackable | Yes |
Rack mounting | Yes |
Power | |
Power consumption (max) | 72.9 W |
Power supply included | Yes |
AC input voltage | 100 – 240 V |
AC input frequency | 50 – 60 Hz |
Power consumption (typical) | 9.7 W |
Power over Ethernet (PoE) | |
Total Power over Ethernet (PoE) budget | 65 W |
Power over Ethernet (PoE) | Yes |
Operational conditions | |
Storage temperature (T-T) | -40 – 70 °C |
Storage relative humidity (H-H) | 15 – 95% |
Operating temperature (T-T) | 0 – 40 °C |
Operating relative humidity (H-H) | 15 – 95% |
Weight & dimensions | |
Width | 254 mm |
Depth | 159.5 mm |
Height | 43.9 mm |
Weight | 910 g |
