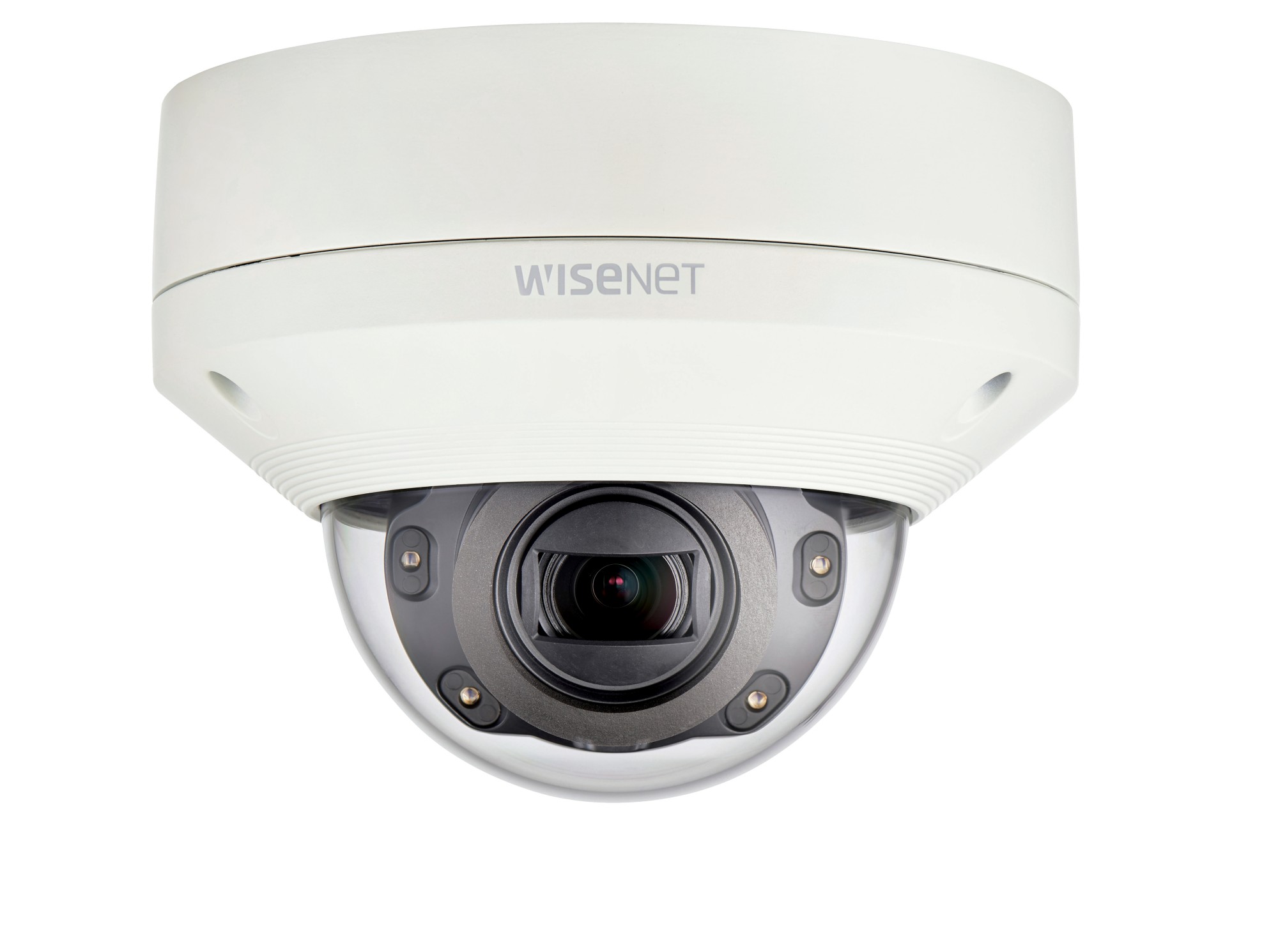

Hanwha XNV-6080R security camera IP security camera Indoor & outdoor Dome Ceiling 1920 x 1080 pixels

SKU: XNV-6080R Category:

Hanwha XNV-6080R security camera IP security camera Indoor & outdoor Dome Ceiling 1920 x 1080 pixels

“1/2.8″” CMOS”

* Images are for illustrative purposes only.
Share on facebook
Share on twitter
Share on whatsapp
Share on linkedin
Share on email

£586.66 £488.88 Ex. VAT

Out of stock

Finance/leasing available for orders over £1000 Inc VAT

Free mainland UK shipping on orders over £150 Ex VAT



Hanwha XNV-6080R security camera IP security camera Indoor & outdoor Dome Ceiling 1920 x 1080 pixels

Manufacturer: HANWHA
Category: Home
Sub-Category: Security Cameras
SKU: XNV-6080R
EAN:

Description

XNV-6080R

2M Vandal-Resistant Network IR Dome Camera

Specifications

Performance
Infrared (IR) cut-off filter Yes
Remote viewing Yes
PTZ modes Digital PTZ
Fog proof Yes
Type IP security camera
Connectivity technology Wired
PTZ control (Pan/Tilt/Zoom) Yes
Placement supported Indoor & outdoor
Auto-tracking Yes
Wide Dynamic Range (WDR) Yes
Day/night mode Yes
Alarm input/output Yes
Certification NEMA 4X
Design
IK code IK10
Fog proof Yes
Form factor Dome
Product colour Ivory
Mounting type Ceiling
Protection features Vandal proof
International Protection (IP) code IP66, IP67
Housing material Aluminium
Camera
Viewing angle, diagonal 142.1°
Minimum illumination 0.015 lx
Viewing angle, horizontal 119.5°
Viewing angle, vertical 62.8°
Tilt angle range 0 – 67°
Pan range 0 – 354°
White balance ATW,AWC,Indoor,Manual,Mercury lamp,Outdoor,Sodium lamp
Angle of rotation 355°
Camera shutter type Electronic
Camera shutter speed 2 – 1/12000 s
Camera pan control Yes
Camera tilt control Yes
Progressive scan Yes
Image sensor
Number of effective pixels (H x V) 1945 x 1097 pixels
Sensor type CMOS
Progressive scan Yes
Optical sensor size 25.4 / 2.8 mm (1 / 2.8″)
Number of sensors 1
Lens system
Number of lenses 1
Maximum aperture number 3.6
Closest focusing distance 0.5 m
Minimum aperture number 1.4
Focus Motorized/Manual
Zoom capability Yes
Optical zoom 4.3x
Digital zoom 24x
Focal length range (f-f) 2.8 – 12 mm
Night vision
Night vision Yes
Night vision distance 50 m
LED type IR
Video
Noise reduction Yes
Image quality adjustment Contrast
Text caption overlay Yes
Privacy masking Yes
Flip & mirror Yes
Image stabilizer Yes
Highlight Compensation (HLC) Yes
Bit rate control Constant Bit Rate (CBR),Variable Bit Rate (VBR)
Back Light Compensation (BLC) Yes
Noise reduction technology 3D noise reduction
Maximum resolution 1920 x 1080 pixels
Video formats supported AVC,H.264,H.265,M-JPEG,MPEG4
Supported graphics resolutions 320 x 240,640 x 360,640 x 480 (VGA),720 x 480,720 x 576,800 x 448,800 x 600 (SVGA),1024 x 768 (XGA),1280 x 1024 (SXGA),1280 x 720 (HD 720),1280 x 960,1920 x 1080 (HD 1080)
Frame rate 60 fps
Video streaming Yes
Total megapixels 2.16 MP
Audio
Sample rate 48 kHz
Signal-to-Noise Ratio (SNR) 50 dB
Audio system 2-way
Audio formats supported ADPCM,G.711,G.726,LC-AAC
Audio detection Yes
Network
Ethernet interface type Fast Ethernet
Networking standards IEEE 802.3af
Quality of Service (QoS) support Yes
Number of users 20 user(s)
Streaming method Multicast,Unicast
Ethernet LAN Yes
Supported network protocols TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour
Storage
Maximum memory card size 512 GB
Card reader integrated Yes
Compatible memory cards SD,SDHC,SDXC
Ports & interfaces
USB port Yes
Microphone in Yes
Ethernet LAN (RJ-45) ports 1
Composite video out 1
Connectivity technology Wired
Security
Alert notification type E-mail
Intelligent Video Surveillance (IVS) system features Crossing line,Defocus,Face detection,Missing object
Video motion detection Yes
Security algorithms 802.1x RADIUS,EAP-TLS
IP address filtering Yes
Active tampering alarm Yes
Anti-flicker Yes
Management features
Web browser Yes
Power
Power source type AC,DC,PoE
Power consumption (max) 14 W
Power consumption (Power over Ethernet (PoE)) 12.95 W
AC input voltage 24 V
Power consumption (typical) 11.5 W
Certificates
Certification NEMA 4X
Operational conditions
Operating temperature (T-T) -40 – 55 °C
Storage temperature (T-T) -50 – 60 °C
Operating relative humidity (H-H) 0 – 90%
Storage relative humidity (H-H) 0 – 90%
System requirements
Windows operating systems supported Windows 10,Windows 7,Windows 8.1
Mac operating systems supported Mac OS X 10.10 Yosemite,Mac OS X 10.11 El Capitan,Mac OS X 10.12 Sierra
Weight & dimensions
Width 160 mm
Depth 160 mm
Height 118.5 mm
Weight 995 g
Packaging content
Number of cameras 1
Other features
Focus Motorized/Manual




Weight 995 kg
