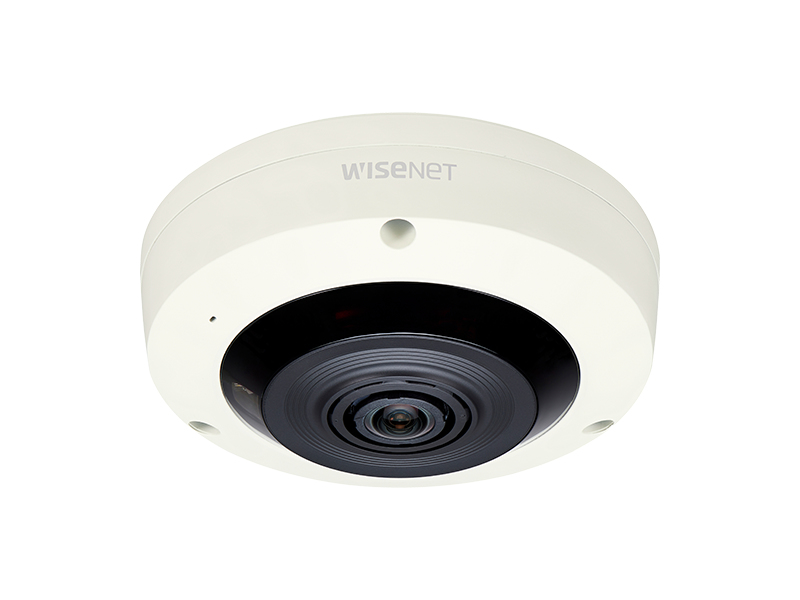

Hanwha XNF-8010R security camera IP security camera Indoor & outdoor Dome Ceiling 2048 x 2048 pixels
| Manufacturer: | HANWHA |
| Category: | Home |
| Sub-Category: | Security Cameras |
| SKU: | XNF-8010R |
| EAN: |
Description
Wisenet X powered by Wisenet 5 network indoor fisheye, 6MP CMOS sensor, 2048×2048 @ 30fps with WDR off/on(120dB), 1.6mm fixed lens (192°), H.265/H.264/MJPEG, WiseStream II compression technology, true WDR, USB port for easy installation, advanced video/audio and business analytics, simple focus, dual SD card, HLC, Defog detection, DIS , 12VDC/PoE
– Max 30fps
– Fisheye lens 1.6mm (192°X192°) W/ simple focus
– Built-in IR for up to 49’ or 15m
– Triple Codec: H.265, H.264 and MJPEG multiple streaming
– WiseStream II compression technology
– WDR 120dB @30fps
– Loitering, directional detection, fog detection, tampering, motion detection, object enter or exit an area
– Sound classification, heatmap, people counting and queue line management
– Dual SD cards
– Power: PoE or 12VDC
Specifications
| Performance | |
|---|---|
| Languages support | Simplified Chinese, Czech, Danish, German, English, Spanish, French, Greek, Hungarian, Italian, Japanese, Korean, Polish, Portuguese, Russian, Swedish, Turkish |
| Fog proof | Yes |
| Type | IP security camera |
| Connectivity technology | Wired |
| Placement supported | Indoor & outdoor |
| Wide Dynamic Range (WDR) | Yes |
| Day/night mode | Yes |
| Alarm input/output | Yes |
| Certification | FCC, CE |
| Design | |
| Fog proof | Yes |
| Form factor | Dome |
| Product colour | Ivory |
| Mounting type | Ceiling |
| Housing material | Aluminium |
| Camera | |
| Viewing angle, diagonal | 192° |
| Viewing angle, horizontal | 192° |
| Viewing angle, vertical | 192° |
| White balance | ATW,AWC,Indoor,Manual,Mercury lamp,Outdoor,Sodium lamp |
| Camera shutter type | Electronic |
| Camera shutter speed | 2 – 1/12000 s |
| Progressive scan | Yes |
| Image sensor | |
| Number of effective pixels (H x V) | 3096 x 2094 pixels |
| Sensor type | CMOS |
| Progressive scan | Yes |
| Optical sensor size | 25.4 / 1.8 mm (1 / 1.8″) |
| Lens system | |
| Maximum aperture number | 1.6 |
| Focus | Manual |
| Zoom capability | Yes |
| Digital zoom | 8x |
| Fixed focal length | 1.6 mm |
| Night vision | |
| Night vision | Yes |
| Night vision distance | 15 m |
| LED type | IR |
| Video | |
| Noise reduction | Yes |
| Privacy masking | Yes |
| Flip & mirror | Yes |
| Image stabilizer | Yes |
| Highlight Compensation (HLC) | Yes |
| Back Light Compensation (BLC) | Yes |
| 3D NR (Noise Reduction) | Yes |
| Video compression formats | H.264,H.265,M-JPEG |
| Maximum resolution | 2048 x 2048 pixels |
| Supported graphics resolutions | 640 x 480 (VGA),704 x 576,800 x 600 (SVGA),960 x 960,1024 x 768 (XGA),1280 x 960,1600 x 1200 (UXGA),1920 x 480,2048 x 1536 (QXGA) |
| Supported video modes | 480p,768p,960p |
| Frame rate | 30 fps |
| Video streaming | Yes |
| Total megapixels | 6 MP |
| Audio | |
| Audio input channels | 1 |
| Signal-to-Noise Ratio (SNR) | 50 dB |
| Built-in microphone | Yes |
| Audio formats supported | G.711,G.726,LC-AAC |
| Networking | |
| Bluetooth | No |
| Ethernet interface type | Fast Ethernet |
| Networking standards | IEEE 802.3af |
| Number of users | 20 user(s) |
| Streaming method | Multicast,Unicast |
| Ethernet LAN | Yes |
| Cabling technology | 10/100Base-T(X) |
| Wi-Fi | No |
| Supported network protocols | IPv4, IPv6, TCP/IP, UDP/IP, RTP (UDP), RTP (TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3 (MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour, SIP |
| Storage | |
| Maximum memory card size | 512 GB |
| Card reader integrated | Yes |
| Compatible memory cards | SD,SDHC,SDXC |
| Ports & interfaces | |
| Microphone in | Yes |
| Interface | RJ-45 |
| Connectivity technology | Wired |
| Security | |
| Alert notification type | |
| Video motion detection | Yes |
| Anti-flicker | Yes |
| Power | |
| Power source type | PoE |
| Power consumption (max) | 11 W |
| Power consumption (Power over Ethernet (PoE)) | 12 W |
| Power over Ethernet (PoE) | Yes |
| DC output voltage | 12 |
| Certificates | |
| Certification | FCC, CE |
| Operational conditions | |
| Operating temperature (T-T) | -10 – 55 °C |
| Storage temperature (T-T) | -50 – 60 °C |
| Operating relative humidity (H-H) | 0 – 90% |
| Storage relative humidity (H-H) | 0 – 90% |
| System requirements | |
| Mac compatibility | Yes |
| Windows operating systems supported | Windows 10,Windows 10 Education,Windows 10 Education x64,Windows 10 Enterprise,Windows 10 Enterprise x64,Windows 10 Home,Windows 10 Home x64,Windows 10 IOT Core,Windows 10 Pro,Windows 10 Pro x64,Windows 7,Windows 7 Enterprise,Windows 7 Enterprise x64,Windows 7 Home Basic,Windows 7 Home Basic x64,Windows 7 Home Premium,Windows 7 Home Premium x64,Windows 7 Professional,Windows 7 Professional x64,Windows 7 Starter,Windows 7 Starter x64,Windows 7 Ultimate,Windows 7 Ultimate x64,Windows 8.1,Windows 8.1 Enterprise,Windows 8.1 Enterprise x64,Windows 8.1 Pro,Windows 8.1 Pro x64,Windows 8.1 x64 |
| Mac operating systems supported | Mac OS X 10.10 Yosemite,Mac OS X 10.11 El Capitan,Mac OS X 10.12 Sierra |
| Weight & dimensions | |
| Height | 54.8 mm |
| Diameter | 14.6 cm |
| Weight | 730 g |
| Packaging content | |
| Number of cameras | 1 |
| Technical details | |
| Colour | Yes |
| Lens mount interface | Board mount |
| Other features | |
| Focus | Manual |
| Video compression formats | H.264,H.265,M-JPEG |
| USB connectivity | Yes |
