Epson ELPDC07 document camera

Transparent IT Expo — Wednesday 1st March 2023

SKU: V12H759040 Category:

Epson ELPDC07 document camera

* Images are for illustrative purposes only.
Share on facebook
Share on twitter
Share on whatsapp
Share on linkedin
Share on email

£214.91 £179.09 Ex. VAT

Free UK Shipping Available*

Availability: 12 in stock

Finance/leasing available for orders over £1000 Inc VAT

Free mainland UK shipping on orders over £150 Ex VAT

See in great detail
Share high-quality visuals including detailed diagrams and textbook pages with a Full HD 1080p output and 8x digital zoom. You can even adjust the height and rotate the camera 90º to accommodate 3D objects. For science lessons, the supplied microscope attachment can also be used to unveil fascinating microscopic worlds in real-time.

Effortless to use
Minimise preparation time with this high-tech, compact and affordable portable solution, that makes it quick and easy to enlarge source material. In just seconds, you can connect directly to the latest Epson projectors using the two in one USB cable connection which provides power and transmits the video signal.
Highly portable, modern design

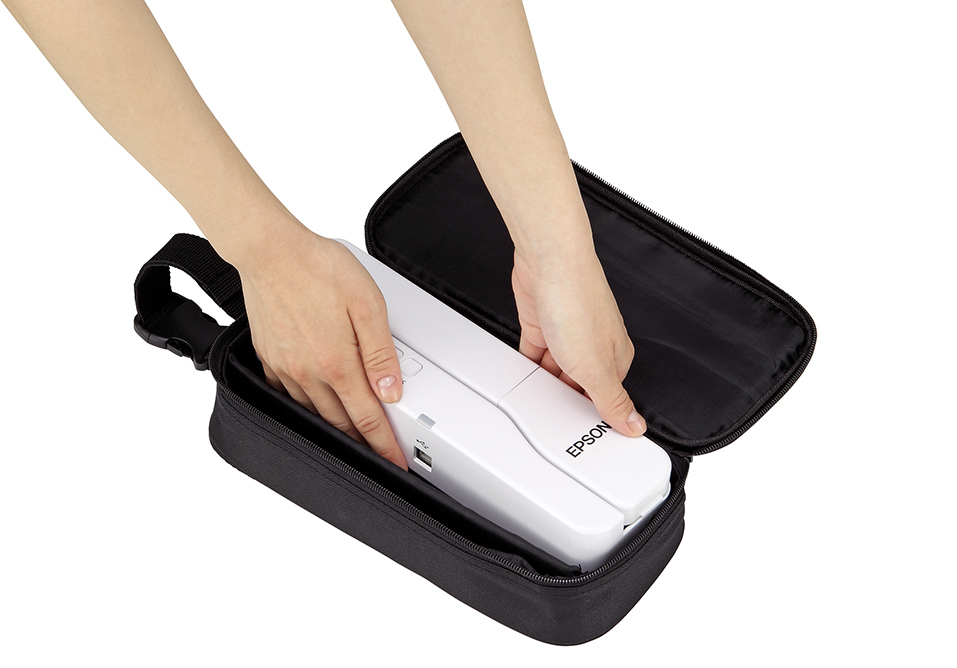

The Epson ELPDC07 visualiser is neat and compact, it features LED illumination, a built-in microphone and doesn’t need a separate power supply. It’s also light and easy to carry in the included carry case, with the arm folding neatly down into the base. Needing just 2.5W, you can be sure that its power consumption meets modern energy conservation requirements .

– Clear, smooth images: Full HD 1080p camera and 30-frames-per-second screen refresh rate
– Capture every detail: 8x digital zoom, one-touch auto focus and freeze function
– Simple to connect: Two-in-one USB cable connection, no need for a separate power supply
– Flexible for 2D visuals and 3D objects: Adjustable height, 90º head rotation and microscope attachment
– Lightweight and portable: Portable design weighs less than 1Kg and a soft carry case included

Feature Feature Value
Optical sensor size 25.4 / 2.7 mm (1 / 2.7″)
Sensor type CMOS
Supported graphics resolutions 1920 x 1080 (HD 1080)
Image freeze Y
Effective sensor resolution 2 MP
Maximum frame rate 30 fps
Auto focus Y
Digital zoom 8x
Shooting area (WxD) 297 x 420 mm
Interface USB 2.0
USB connector type USB Type-B
Product colour White
Cable lock slot Y
Illumination Y
Image quality adjustment Brightness
Power supply type USB
Power consumption (typical) 2.5 W
Width 260 mm
Depth 388 mm
Height 76 mm
Weight 1 kg
Dimensions folded (WxDxH) 260 x 60 x 76 mm
Carrying case Y
Cables included USB
Optical sensor size

25.4 / 2.7 mm (1 / 2.7")

Effective sensor resolution

2 MP

USB connector type

USB Type-B


1 kg

Maximum frame rate

30 fps

Digital zoom



USB 2.0




260 mm
