SKU: V11H741041 Category:

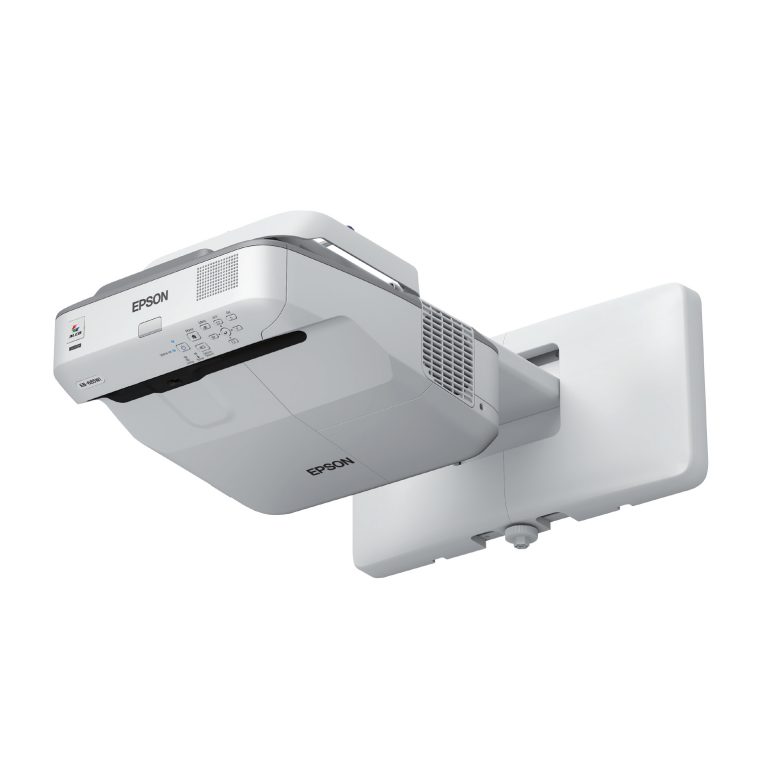

Epson EB-685Wi data projector 3500 ANSI lumens 3LCD WXGA (1280×800) Wall-mounted projector Grey,White

* Images are for illustrative purposes only.

£1,632.97 £1,360.81 Ex. VAT

Free UK Shipping Available*

Availability: 17 in stock

Finance/leasing available for orders over £1000 Inc VAT

Free mainland UK shipping on orders over £150 Ex VAT

This projector offers superb interactivity thanks to its dual pen capability. With a brightness of 3,500 lumens and HD-ready WXGA resolution, the EB-685Wi’s ultra-short-throw design allows you to present large images from a very short distance with minimised shadows and glare. A 14,000:1 contrast ratio and HDMI input mean that students benefit from sharp, clear images.

High brightness and image quality
Epson’s 3LCD technology ensures high-quality images with equally high White and Colour Light Output for vivid colours and bright images, even in daylight, and three times brighter colours than competitive projectors1. With a scalable display size of up to 100 inches, two types of content can be displayed using the split-screen without compromising on quality.

Dual pen
Epson’s interactive pens are now even more responsive and easy to use when annotating directly on screen. With the new dual pens, teacher and student or two students can work simultaneously using different attributes.

Highly reliable
Project for longer with improved reliability and a longer lamp life of up to 10,000 hours in eco mode.

Interact and enhance learning
Multi-PC projection software allows teachers and students to share content simultaneously. The moderator function allows teachers to remain in control, choosing what content to display. Combine two projectors to create one large interactive display. Split-screen capability allows teachers to display two separate types of content simultaneously, such as a lesson plan from a PC and a still image or video clip from a document camera.

Optional wireless capability
Wirelessly display content easily from a range of smart devices and Google Chromebooks using our iProjection App.

Feature Feature Value
Projector brightness 3500 ANSI lumens
Projection technology 3LCD
Projector native resolution WXGA (1280×800)
Contrast ratio (typical) 300:1
Native aspect ratio 16:10
Screen size compatibility 1524 – 2540 mm (60 – 100″)
Supported aspect ratios 16:10
Projection distance (wide) 0 – 0.4 m
Projection distance (tele) 0 – 0.6 m
Contrast ratio (dynamic) 14000:1
Number of colours 1.073 billion colors
Projector brightness (economic mode) 2900 ANSI lumens
Keystone correction, horizontal ±3°
Keystone correction, vertical ±3°
Matrix size 1.5 cm (0.59″)
Vertical synchronization (min) 0.1 kHz
Vertical synchronization (max) 0.12 kHz
White light output 3500 ANSI lumens
Colour light output 3500 ANSI lumens
Service life of lamp 5000 h
Bulb power 250 W
Service life of lamp (economic mode) 10000 h
Focus Manual
Zoom ratio 1.35:1
Throw ratio 0.28:1
Full HD N
3D N
VGA (D-Sub) ports quantity 3
HDMI ports quantity 3
Composite video in 1
DVI port N
S-Video inputs quantity 1
USB 2.0 ports quantity 3
Audio (L,R) in 1
Serial interface type RS-232C
Headphone outputs 1
Microphone in Y
AC (power) in Y
Ethernet LAN Y
Ethernet LAN (RJ-45) ports 1
Card reader integrated N
Noise level 35 dB
Noise level (economic mode) 30 dB
Built-in speaker(s) Y
RMS rated power 16 W
Product type Wall-mounted projector
Product colour Grey,White
LED indicators Y
Cable lock slot Y
Cable lock slot type Kensington
Built-in display N
Power source AC
Power consumption (typical) 354 W
Power consumption (standby) 0.39 W
Power consumption (economy mode) 310 W
AC input voltage 220 – 240 V
AC input frequency 50 – 60 Hz
Windows operating systems supported Windows 10 Education,Windows 10 Education x64,Windows 10 Enterprise,Windows 10 Enterprise x64,Windows 10 Home,Windows 10 Home x64,Windows 10 Pro,Windows 10 Pro x64,Windows 8,Windows 8 Enterprise,Windows 8 Enterprise x64,Windows 8 Pro,Windows 8 Pro x64,Windows 8 x64,Windows 8.1,Windows 8.1 Enterprise,Windows 8.1 Enterprise x64,Windows 8.1 Pro,Windows 8.1 Pro x64,Windows 8.1 x64
Operating temperature (T-T) 5 – 35 °C
Storage temperature (T-T) -10 – 60 °C
Operating relative humidity (H-H) 20 – 80%
Storage relative humidity (H-H) 10 – 90%
Weight 5.9 kg
Width 367 mm
Depth 400 mm
Height 149 mm
Handheld remote control N
Manual Y
RS-232 ports 1
RS-232C Y
Projector brightness

3500 ANSI lumens

HDMI ports quantity



5.9 kg

Card reader integrated


Bulb power

250 W

Microphone in


Ethernet LAN


USB 2.0 ports quantity


Native aspect ratio


Matrix size

1.5 cm (0.59")



Projector native resolution

WXGA (1280×800)

Handheld remote control


Full HD


Projection technology


Headphone outputs


Screen size compatibility

1524 – 2540 mm (60 – 100")

Ethernet LAN (RJ-45) ports


Noise level

35 dB


367 mm
