SKU: V11H744041 Category:

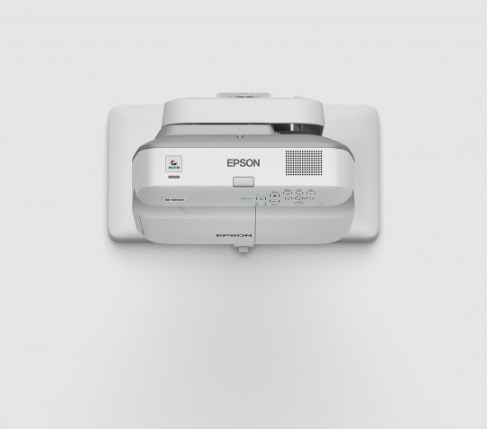

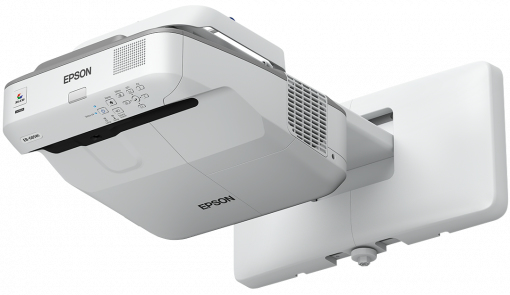

Epson EB-685W data projector 3500 ANSI lumens 3LCD WXGA (1280×800) Wall-mounted projector Grey,White

* Images are for illustrative purposes only.

£1,231.73 £1,026.44 Ex. VAT

Free UK Shipping Available*

Availability: 11 in stock

Finance/leasing available for orders over £1000 Inc VAT

Free mainland UK shipping on orders over £150 Ex VAT

HD-ready classroom projector

Innovative teaching solution with a large scalable screen size of up to 100 inches to display HD-ready WXGA content for enhanced learning.

The EB-685W’s ultra-short-throw design allows you to present large images from a very short distance with minimised shadows and glare. With a brightness level of 3,500 lumens, an HD-ready WXGA resolution, a 14,000:1 contrast ratio, and HDMI input, students benefit from sharp, clear images.

High-quality, bright images

Epson’s 3LCD technology ensures high-quality images with equally high White and Colour Light Output for vivid colours and bright images, even in daylight, and three times brighter colours than leading competitive projectors.

Enhanced learning

Split-screen functionality allows two pieces of content to be displayed simultaneously without compromising on quality. The moderator function allows teachers to remain in control, choosing what content to display.

Document camera compatibility

Connecting the optional Epson document camera allows you to easily display images and 3D objects with incredible detail for the whole class to see.

Keep costs down

Project for longer with improved reliability and a longer lamp life of up to 10,000 hours in eco mode.

-Optional wireless capability

Wirelessly display content easily from a range of smart devices and Google Chromebooks using our iProjection App.

Feature Feature Value
Projector brightness 3500 ANSI lumens
Projection technology 3LCD
Projector native resolution WXGA (1280×800)
Contrast ratio (typical) 300:1
Native aspect ratio 16:10
Screen size compatibility 1524 – 2540 mm (60 – 100″)
Projection distance 0.4 – 0.6 m
Supported aspect ratios 16:10
Projection distance (wide) 0 – 0.4 m
Projection distance (tele) 0 – 0.6 m
Contrast ratio (dynamic) 14000:1
Number of colours 1.073 billion colors
Projector brightness (economic mode) 2900 ANSI lumens
Keystone correction, horizontal ±3°
Keystone correction, vertical ±3°
Matrix size 1.5 cm (0.59″)
Service life of lamp 5000 h
Bulb power 250 W
Service life of lamp (economic mode) 10000 h
Focus Manual
Focal length range (f-f) 0 – 3.76 mm
Zoom capability Y
Zoom ratio 1.35:1
Digital zoom 1.35x
Full HD N
3D N
HD-Ready Y
Video processing 10 bit
Colour modes (2D) Cinema,Dynamic
Video colour modes Blackboard,Cinema,Dynamic,Presentation,sRGB
VGA (D-Sub) ports quantity 3
HDMI ports quantity 3
Composite video in 1
DVI port N
USB 2.0 ports quantity 2
Audio (L,R) in 1
Serial interface type RS-232
Mobile High-Definition Link (MHL) Y
Headphone outputs 1
Microphone in Y
USB connector type USB Type-A,USB Type-B
AC (power) in Y
Ethernet LAN Y
Ethernet LAN (RJ-45) ports 1
Ethernet LAN data rates 10,100 Mbit/s
Card reader integrated N
Noise level 35 dB
Noise level (economic mode) 28 dB
On Screen Display (OSD) Y
Air filter Y
2D/3D frequency image 100 – 120 Hz
Password protection Y
Built-in speaker(s) Y
RMS rated power 16 W
Number of built-in speakers 1
Product type Wall-mounted projector
Product colour Grey,White
Cable lock slot Y
Cable lock slot type Kensington
Built-in display N
Power source AC
Power consumption (typical) 354 W
Power consumption (standby) 0.39 W
Power consumption (PowerSave) 310 W
AC input voltage 220 – 240 V
AC input frequency 50 – 60 Hz
Windows operating systems supported Windows 10 Education,Windows 10 Education x64,Windows 10 Enterprise,Windows 10 Enterprise x64,Windows 10 Home,Windows 10 Home x64,Windows 10 Pro,Windows 10 Pro x64,Windows 8,Windows 8 Enterprise,Windows 8 Enterprise x64,Windows 8 Pro,Windows 8 Pro x64,Windows 8 x64,Windows 8.1,Windows 8.1 Enterprise,Windows 8.1 Enterprise x64,Windows 8.1 Pro,Windows 8.1 Pro x64,Windows 8.1 x64
Mac compatibility Y
Mac operating systems supported Mac OS X 10.7 Lion,Mac OS X 10.8 Mountain Lion,Mac OS X 10.9 Mavericks
Operating temperature (T-T) 5 – 35 °C
Storage temperature (T-T) -10 – 60 °C
Operating relative humidity (H-H) 20 – 80%
Storage relative humidity (H-H) 10 – 90%
Weight 5.7 kg
Width 367 mm
Depth 400 mm
Height 149 mm
Handheld remote control Y
Remote control type IR
Batteries included Y
Cables included USB
Manual Y
Bundled software EasyMP Monitor, EasyMP Multi PC Projection
RS-232 ports 1
Projector brightness

3500 ANSI lumens




367 mm

On Screen Display (OSD)


Noise level

35 dB

Ethernet LAN data rates

10,100 Mbit/s

Ethernet LAN


USB connector type

USB Type-A,USB Type-B

USB 2.0 ports quantity


Headphone outputs


Full HD


Native aspect ratio


Projector native resolution

WXGA (1280×800)



HDMI ports quantity


Projection technology


Microphone in


Digital zoom


Bulb power

250 W

Ethernet LAN (RJ-45) ports


Matrix size

1.5 cm (0.59")

Card reader integrated


Screen size compatibility

1524 – 2540 mm (60 – 100")

Mac compatibility



5.7 kg

Handheld remote control
