Eaton Ellipse PRO 650 IEC uninterruptible power supply (UPS) 650 VA 400 W 4 AC outlet(s)

SKU: ELP650IEC Category:

Eaton Ellipse PRO 650 IEC uninterruptible power supply (UPS) 650 VA 400 W 4 AC outlet(s)


Share on facebook
Share on twitter
Share on whatsapp
Share on reddit
Share on linkedin
Share on email

£158.18 £131.82 Ex. VAT

Availability: 2 in stock

Finance/leasing available for orders over £1000 Inc VAT

Free mainland UK shipping on orders over £150 Ex VAT

The Eaton Ellipse PRO 650–1600VA is a line interactive UPS specifically developed to protect workstations running demanding applications. The Ellipse PRO features an LCD display for real-time status and measurements. It also features EcoControl power outlets, which enable energy savings up to 20 percent and Advanced Surge Reduction (ASR) that complies fully with the requirements of the IEC 616431-1 standard.

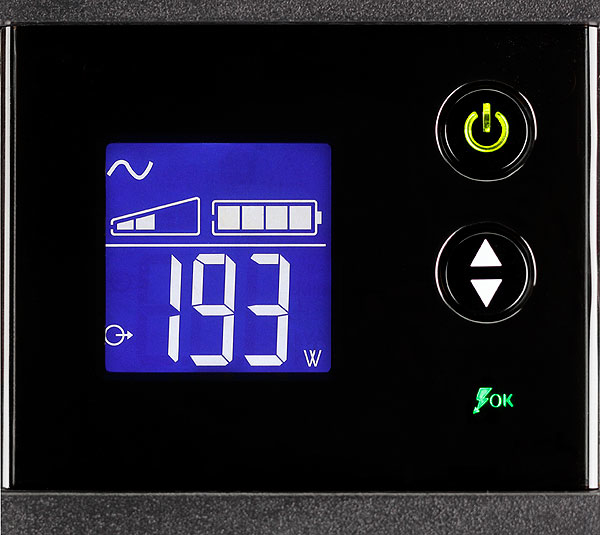

– LCD display for real-time status and measurements.
– Delivers clean output with Automatic Voltage Regulation (AVR, with buck and boost).
– EcoControl function helps you save up to 20% energy compared to previous generation UPSs.
– Includes a high performance surge-protection device which complies with IEC 61643-1 standard.
– Up to 8 outlets to connect your PC & peripherals.
– Convenient extra-flat design for easy installation in any office environment.
– USB port & Eaton UPS Companion software that enables safe system shutdown, energy usage metering and easy configuration of UPS settings.
– Protects data connections such as Ethernet, internet and telephone lines.

Feature Feature Value
Output power capacity 650 VA
Output power 400 W
Input operation voltage (min) 165 V
Input operation voltage (max) 285 V
Input frequency 50/60 Hz
Output operation voltage (min) 220 V
Output operation voltage (max) 240 V
Emergency Power Off (EPO) Y
Surge protection Y
Surge protection features Fax,Modem,Network,Telephone
AC outlet types C13 coupler
Power plug C14 coupler

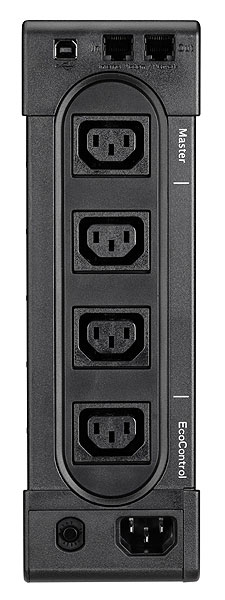

AC outlets quantity 4 AC outlet(s)
USB 2.0 ports quantity 1
Modem (RJ-11) ports 1
Ethernet LAN (RJ-45) ports 1
Battery technology Sealed Lead Acid (VRLA)
Typical backup time at half load 9 min
Automatic battery test Y
Cold start Y
Form factor Rackmount/Tower
Product colour Black
Rack capacity 2U
LED indicators Y
Display LCD
Safety IEC/EN 62040-1, IEC/EN 62040 -2, CB, CE
Width 82 mm
Depth 285 mm
Height 260 mm
Weight 6.6 kg
