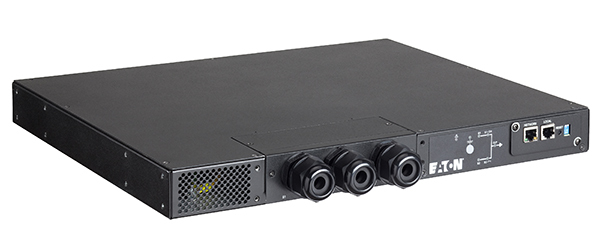

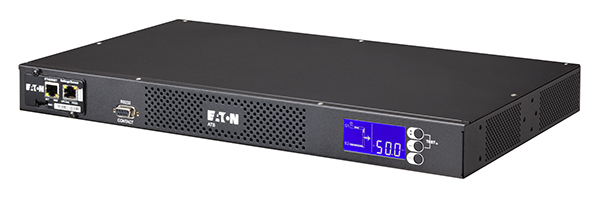

Eaton ATS 16N uninterruptible power supply (UPS)

* Images are for illustrative purposes only.

£898.79 £748.99 Ex. VAT

Free UK Shipping Available*

Availability: 7 in stock

Finance/leasing available for orders over £1000 Inc VAT

Free mainland UK shipping on orders over £150 Ex VAT

The Eaton ATS offers an affordable solution for customers willing to add power redundancy to networking equipment like switches and routers. This automatic transfer switch will power them from 2 different sources. Should one power source fail, the alternate one will switch over with no interruption to the connected equipment. Eaton ATS can be connected to multiple devices at the same time while saving the cost of expensive redundant power supplies.

– Provides power redundancy to IT equipment
– Alternative to expensive redundant power supplies available from networking equipment vendors
– Compact, 1U rack form factor
– Seamlessly switches from one power source to the other
– Network management on ATS 30 and ATS 16 Netpack versions

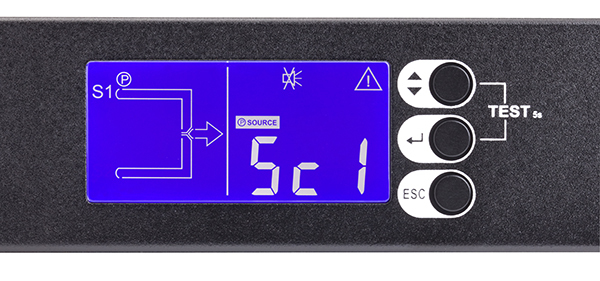

– LCD with metering and basic configuration capabilities

Feature Feature Value
Input operation voltage (min) 208 V
Input operation voltage (max) 240 V
Input frequency 50/60 Hz
Maximum current 16 A
Response time 8 ms
Web-based management Y
AC outlet types C13 coupler,C19 coupler
Power plug C20 coupler
Number of output IEC jumpers 8
Form factor Rackmount
Product colour Black
Rack capacity 1U
Display LED
Certification CE
Width 430 mm
Depth 250 mm
Height 43 mm
Weight 3.5 kg



430 mm

Maximum current

16 A

Web-based management


Form factor


Rack capacity



3.5 kg
