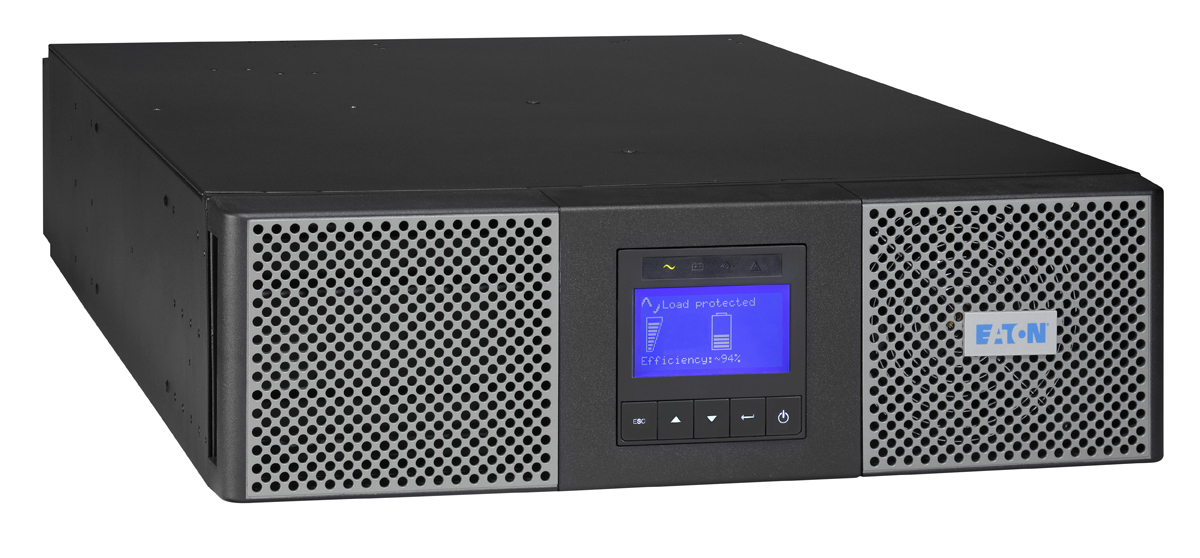

Eaton 9PX5KIRTN uninterruptible power supply (UPS) 5000 VA 4500 W 5 AC outlet(s)

SKU: 9PX5KIRTN Category:

Eaton 9PX5KIRTN uninterruptible power supply (UPS) 5000 VA 4500 W 5 AC outlet(s)

* Images are for illustrative purposes only.

SHARE

Share on facebook
Share on twitter
Share on whatsapp
Share on reddit
Share on linkedin
Share on email

£3,237.82 £2,698.18 Ex. VAT

Out of stock

Finance/leasing available for orders over £1000 Inc VAT

Free mainland UK shipping on orders over £150 Ex VAT

The Eaton 9PX UPS provides energy-efficient power protection for small & medium Datacentres, IT rooms and Infrastructure. Delivering double conversion protection with 40% less energy usage and 28% more power 9PX is the perfect UPS for IT and Facility managers that are concerned by energy cost and are looking for next generation power protection solutions.

– Online double conversion topology
– Energy efficient (up to 95% in Online mode, 98% in high-efficiency mode, ENERGY STAR® qualified UPS)
– Next-generation graphical LCD display (7 languages)
– Provides more real power (watts) to protect more equipment with a 0.9 power factor
– Parallel operation using HotSync technology (available in Q2 2013)
– Maintenance ByPass available as standard (on HotSwap/BP version)
– Energy metering – kWh values can be monitored using the LCD or Eaton’s Intelligent Power Software Suite
– Compatible with Virtual environments (VMware, Hyper-V, Citrix Xen, Redhat)


Feature Feature Value
Output power capacity 5000 VA
Output power 4500 W
Input operation voltage (min) 100 V
Input operation voltage (max) 276 V
Input frequency 40/70 Hz
Output operation voltage (min) 200 V
Output operation voltage (max) 240 V
Maximum current 90 A
Crest factor 3:1
Input current Total Harmonic Distortion (THD) 5%
Noise level 45 dB
AC outlet types C13 coupler,C19 coupler,Terminal
Power plug Terminal
AC outlets quantity 5 AC outlet(s)
USB 2.0 ports quantity 1
RS-232 ports 1
Form factor Rackmount/Tower
Product colour Black
Display LCD
Safety IEC/EN 62040-1, UL 1778, CSA 22.2
Certification IEC/EN 62040 -2 , FCC A, IEC/EN 62040-3
Operating temperature (T-T) 0 – 40 °C
Width 130 mm
Depth 685 mm
Height 440 mm
Weight 48 kg
Interface USB, RS232
Noise level

45 dB

USB 2.0 ports quantity

1

Form factor

Rackmount/Tower

Display

LCD

Width

130 mm

Interface

USB, RS232

Maximum current

90 A

Weight

48 kg
