SKU: 5SC3000IRTBS Category:

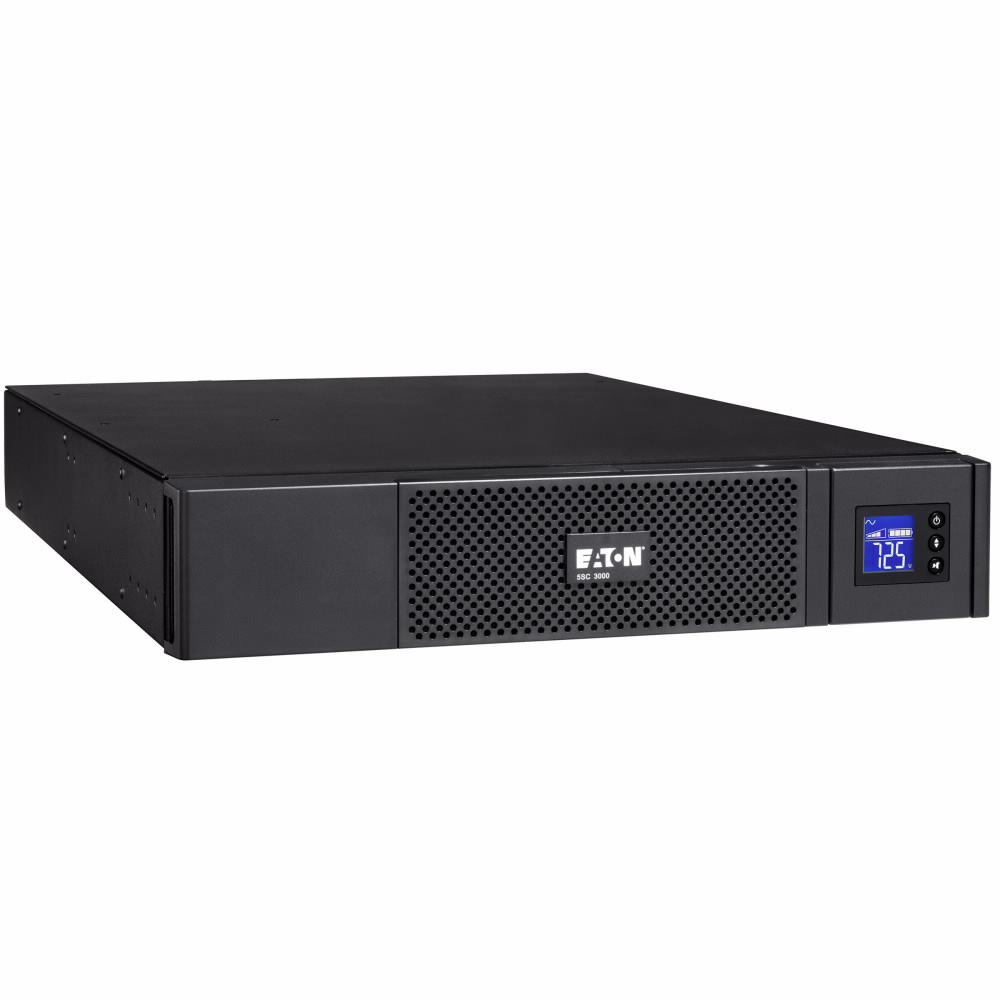

Eaton 5SC3000IRTBS uninterruptible power supply (UPS) Line-Interactive 3 kVA 2700 W 9 AC outlet(s)

5SC UPS, Line-interactive, 3000 VA, 2700 W, C20 In, 8 x C13 & 1 x C19 Out, Rack/tower, 2U, with BS input cord

* Images are for illustrative purposes only.

£1,561.57 £1,301.31 Ex. VAT

Free UK Shipping Available*

Availability: 4 in stock

Finance/leasing available for orders over £1000 Inc VAT

Free mainland UK shipping on orders over £150 Ex VAT


Power
Output power factor 0.9
Output power 2700 W
Input operation voltage (min) 184 V
Input operation voltage (max) 276 V
Output operation voltage (min) 220 V
Output operation voltage (max) 240 V
Efficiency 97%
Power factor 0.9
Output power capacity 3 kVA
Ports & interfaces
Cable length 1.8 m
USB port Yes
Serial interface Yes
Serial interface type RS-232
AC outlets quantity 9 AC outlet(s)
AC outlet types C13 coupler, C19 coupler
Power plug C20 coupler
Serial ports quantity 1
USB port type USB Type-B
Performance
UPS topology Line-Interactive
Waveform Sine
Number of output phases 1
Number of input phases 1
LED indicators Yes
Power protection features Overdischarge
Noise level 40 dB
Features
Output frequency 50/60 Hz
UPS topology Line-Interactive
Waveform Sine
Number of output phases 1
Number of input phases 1
Output power factor 0.9
Output power 2700 W
Input operation voltage (min) 184 V
Input operation voltage (max) 276 V
Output operation voltage (min) 220 V
Output operation voltage (max) 240 V
Efficiency 97%
Power protection features Overdischarge
Power factor 0.9
Noise level 40 dB
Output power capacity 3 kVA
Input frequency 45/65 Hz
Battery
Number of batteries supported 6
Battery voltage 12 V
Battery capacity 9 Ah
Battery technology Sealed Lead Acid (VRLA)
Typical backup time at full load 2 min
Hot-swap battery Yes
Automatic battery test Yes
Design
Rack capacity 2U
Form factor Rackmount/Tower
LED indicators Yes
Product colour Black
Display LCD
Certification TUV IEC/EN 62040-1 UL 1778 IEC/EN 62040-2 EAC cTUVus
Cable length 1.8 m
Operational conditions
Operating relative humidity (H-H) 0 – 90%
Storage relative humidity (H-H) 0 – 90%
Operating altitude 0 – 3000 m
Technical details
Output frequency 50/60 Hz
Sustainability compliance Yes
Sustainability certificates CE
Weight & dimensions
Weight 35.7 kg
Width 647 mm
Height 86.2 mm
Depth 441 mm
Packaging data
Quick installation guide Yes
Cables included Input power cable, Serial, USB cable
Rack mount kit Yes
Certificates
Certification TUV IEC/EN 62040-1 UL 1778 IEC/EN 62040-2 EAC cTUVus
Packaging content
Quick installation guide Yes
Cables included Input power cable, Serial, USB cable
Rack mount kit Yes
Weight 23400.0000 kg
Brand

EAN

3553340620362

UNSPSC

39121011
