SKU: 5PX3000IRT2UG2BS Category:

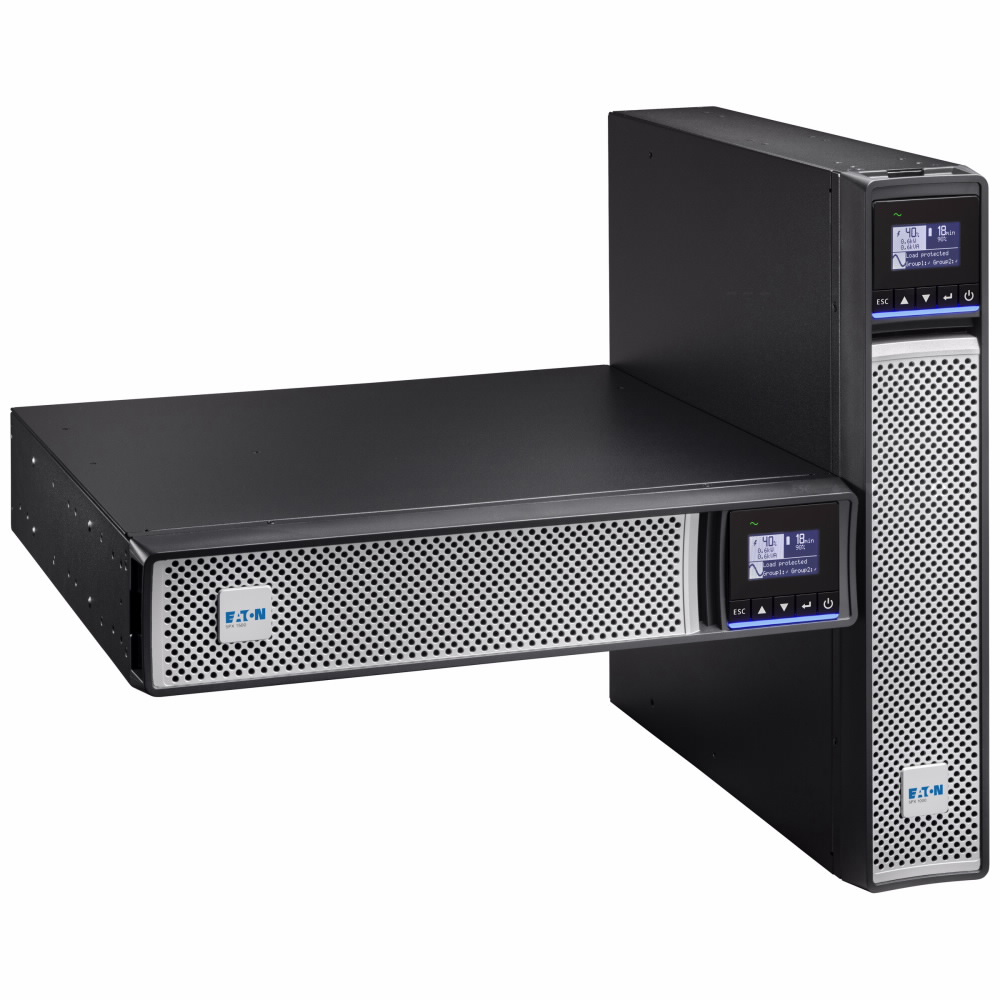

Eaton 5PX3000IRT2UG2BS uninterruptible power supply (UPS) Line-Interactive 3000 kVA 3000 W 10 AC outlet(s)

5PX Gen2 UPS, Line-interactive, 3000 VA, 3000 W, C20 In, 8 x C13 & 2 x C19 Out, Rack/tower, 2U, with BS input cord

* Images are for illustrative purposes only.

£1,663.19 £1,385.99 Ex. VAT

Free UK Shipping Available*

Availability: 8 in stock

Finance/leasing available for orders over £1000 Inc VAT

Free mainland UK shipping on orders over £150 Ex VAT

The new Eaton 5PX Gen2 UPS provides Enterprise Networks and Edge IT equipment with best-in-class line-interactive power protection maximising IT space and Service Continuity. Eaton 5PX Gen 2 offers powerful tools to remotely monitor, integrate with IT architecture and remotely deploy / maintain large installed base of UPSs.


Power
Output power factor 1
Output power 3000 W
Input operation voltage (min) 150 V
Input operation voltage (max) 294 V
Output operation voltage (min) 200 V
Output operation voltage (max) 240 V
Power factor 1
Output power capacity 3000 kVA
Ports & interfaces
Cable length 1.8 m
USB port Yes
Serial interface Yes
Serial interface type RS-232
AC outlets quantity 10 AC outlet(s)
AC outlet types C13 coupler, C19 coupler
Power plug C20 coupler
Serial ports quantity 1
USB port type USB Type-B
Performance
UPS topology Line-Interactive
Waveform Sine
Automatic Voltage Regulation (AVR) Yes
Number of output phases 1
Number of input phases 1
Power protection features Overdischarge
Noise level 40 dB
Features
Output frequency 50/60 Hz
UPS topology Line-Interactive
Waveform Sine
Automatic Voltage Regulation (AVR) Yes
Number of output phases 1
Number of input phases 1
Output power factor 1
Output power 3000 W
Input operation voltage (min) 150 V
Input operation voltage (max) 294 V
Output operation voltage (min) 200 V
Output operation voltage (max) 240 V
Power protection features Overdischarge
Power factor 1
Noise level 40 dB
Output power capacity 3000 kVA
Input frequency 47/70 Hz
Battery
Number of batteries supported 6
Battery voltage 12 V
Battery capacity 9 Ah
Battery technology Sealed Lead Acid (VRLA)
Automatic battery test Yes
Design
Form factor Rackmount/Tower
Product colour Black, Silver
Display LCD
Certification IEC/EN 62040-1 IEC/EN 62040-2 IEC/EN 62040-3 UL 1778 CSA 22.2 cTUVus EAC Cm UKCA Ukr KCC
Cable length 1.8 m
Operational conditions
Operating temperature (T-T) 0 – 40 °C
Operating relative humidity (H-H) 0 – 90%
Storage relative humidity (H-H) 0 – 90%
Operating altitude 0 – 3000 m
Technical details
Output frequency 50/60 Hz
Sustainability compliance Yes
Sustainability certificates CE, ENERGY STAR, REACH, RoHS
Weight & dimensions
Weight 32.6 kg
Width 588 mm
Height 240 mm
Depth 770 mm
Packaging data
Quick installation guide Yes
Cables included Input power cable, Serial, USB cable
Rack mount kit Yes
Certificates
Certification IEC/EN 62040-1 IEC/EN 62040-2 IEC/EN 62040-3 UL 1778 CSA 22.2 cTUVus EAC Cm UKCA Ukr KCC
Packaging content
Quick installation guide Yes
Cables included Input power cable, Serial, USB cable
Rack mount kit Yes
Weight 37500.0000 kg
Brand

EAN

0743172104809

UNSPSC

39121011
