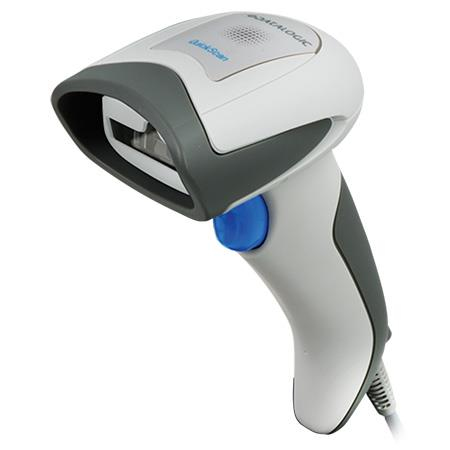

Datalogic QD2131 Handheld bar code reader 1D White

SKU: QD2131-WH Category:

Datalogic QD2131 Handheld bar code reader 1D White

QuickScan QD2131, 0 – 120000lux, Red LED 610 – 650nm, IP42, Linear Imager, USB, KBW, RS-232, Multi-Interface

* Images are for illustrative purposes only.

£81.42 £67.85 Ex. VAT

Availability: 64 in stock

Finance/leasing available for orders over £1000 Inc VAT

Free mainland UK shipping on orders over £150 Ex VAT

Datalogic QD2131 Handheld bar code reader 1D White

Manufacturer: Datalogic
Category: Printers & Scanners
Sub-Category: Barcode Readers
SKU: QD2131-WH
EAN:

Description

Datalogic ADC is pleased to announce the release of the QuickScan™ QD2131 linear imager with an enhanced decoding algorithm enabling the imager to capture and decode 1D bar codes more quickly.

The QD2131 linear imager has an extra-wide field of view and an extra-long scan line, allowing users to read longer 1D bar codes from a closer distance. Additionally, the QD2131 imager has an extended reading range which exceeds the requirements of most general purpose scanning applications. The QD2131 imager also supports the Remote Management functions using the Host Download application.

FEATURES

– Extended reading range and depth of field (DOF)
– Extra-wide scan angle and extra-long scan line
– Sharp and highly visible scan line
– Light weight and balanced design
– Snappy reading performance
– Reads bar codes from mobile devices or computer screens
– Datalogic’s patented ‘Green Spot’ technology for good-read feedback

Specifications

Scanning
Type Handheld bar code reader
Linear (1D) barcodes supported GS1 DataBar Expanded,GS1 DataBar Omnidirectional
2D (matrix & stacked) barcodes supported Not supported
Yaw reading angle -70 – 70°
Wavelength 650 nm
Tilt reading angle -45 – 45°
Scanner type 1D
Read rate (max) 400 reads/s
Pitch reading angle -65 – 65°
Ports & interfaces
Connectivity technology Wired
Standard interfaces RS-232,USB,Keyboard wedge
Design
Type Handheld bar code reader
International Protection (IP) code IP41
Product colour White
Power
Power consumption 140 mA
Power source type Battery
Input voltage 4.75 – 14 V
Weight & dimensions
Width 163 mm
Depth 91 mm
Height 41 mm
Weight 150 g
Technical details
Type Handheld bar code reader
International Protection (IP) code IP41
Product colour White
Packaging data
Cables included No
Operational conditions
Storage temperature (T-T) -40 – 70 °C
Operating temperature (T-T) 0 – 50 °C
Packaging content
Cables included No

Brand

UNSPSC

43211701
