SKU: PM9300-D910RB Category:

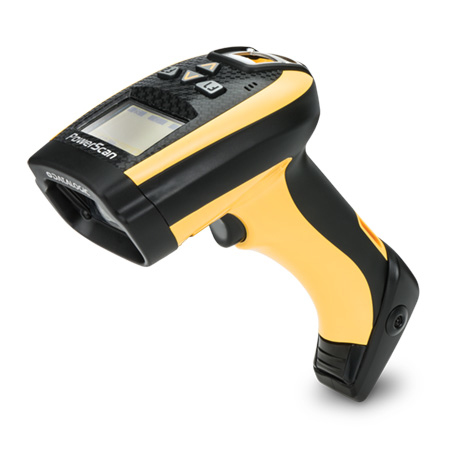

Datalogic PowerScan PM9300 Handheld bar code reader 1D Laser Black, Yellow

1D, 630-680nm, USB/RS-232/RS-485, IP65, Lithium-Ion 2150mAh, 435g, Yellow/Black

* Images are for illustrative purposes only.

£172.01 £143.34 Ex. VAT

Out of stock

Finance/leasing available for orders over £1000 Inc VAT

Free mainland UK shipping on orders over £150 Ex VAT

Datalogic PowerScan PM9300 Handheld bar code reader 1D Laser Black, Yellow

Manufacturer: Datalogic
Category: Printers & Scanners
Sub-Category: Barcode Readers
SKU: PM9300-D910RB
EAN:

Description

The PowerScan™ PM9300 series includes different models able to satisfy all customers’ needs; the PM9300 is the basic cordless model, the PM9300-D intermediate model includes a display and 4-key keypad, and the ultimate PM9300-DK model features a display with a full 16-key keyboard. The PM9300-DK model significantly increases the sophistication of interaction with the host system and opens up new potential uses of the scanner, making it suitable for applications that would normally require a more expensive portable data terminal.

Narrow band radio communications with Datalogic’s STAR Cordless System™ 2.0 provides the key to increased productivity and flexibility in the workplace. It offers scalable solutions from simple point-to-point applications to networking capabilities combined with seamless roaming for complex installations.

The PM9300 readers feature Datalogic’s exclusive 3 Green Lights (3GL™) for superior good-read feedback. The patented ‘Green Spot’ technology provides visual confirmation directly on the code and dual Good Read LEDs on the top and back of the cap add increased visibility at any angle.

Specifications

Scanning
Scanner resolution 0.076 mm
Type Handheld bar code reader
Linear (1D) barcodes supported Codabar,Code 11,Code 128,Code 32,Code 39,Code 93,EAN 2,EAN 5,Interleaved 2 of 5,MSI,Plessey,U.P.C.
Yaw reading angle -65 – 65°
Wavelength 680 nm
Tilt reading angle -35 – 35°
Sensor type Laser
Scanner type 1D
Read rate (max) 104 reads/s
Pitch reading angle -40 – 40°
Ports & interfaces
Wireless range 400 m
Connectivity technology Wired & Wireless
Operating frequency 910 MHz
Standard interfaces USB, RS-232, RS-485, Keyboard wedge
Performance
Protection features Shock resistant
LED indicators Yes
Keys quantity 4 keys
Built-in display Yes
Backlight display Yes
International Protection (IP) code IP65
Display resolution 48 x 132 pixels
Product colour Black, Yellow
Certification CDRH Class II
IEC 60825-1 Class 2
Buzzer Yes
Design
Type Handheld bar code reader
Protection features Shock resistant
LED indicators Yes
Keys quantity 4 keys
International Protection (IP) code IP65
Product colour Black, Yellow
Certification CDRH Class II
IEC 60825-1 Class 2
Power
Power consumption 500 mA
Power source type Battery
Battery life 10 h
Charging time 4 h
Number of reads per charge 50000
Input voltage 10 – 30 V
Battery technology Lithium-Ion (Li-Ion)
Battery capacity 2150 mAh
Weight & dimensions
Width 212 mm
Depth 110 mm
Height 74 mm
Weight 435 g
Technical details
Type Handheld bar code reader
Protection features Shock resistant
LED indicators Yes
Keys quantity 4 keys
Built-in display Yes
Backlight display Yes
International Protection (IP) code IP65
Display resolution 48 x 132 pixels
Product colour Black, Yellow
Certification CDRH Class II
IEC 60825-1 Class 2
Buzzer Yes
Sustainability certificates RoHS
Packaging data
Cables included No
Operational conditions
Storage temperature (T-T) -40 – 70 °C
Operating temperature (T-T) -20 – 50 °C
Operating relative humidity (H-H) 0 – 95%
Packaging content
Cables included No

Brand

UNSPSC

43211701
