D-Link DPE-301GS PoE adapter Fast Ethernet,Gigabit Ethernet

Transparent IT Expo — Wednesday 1st March 2023

SKU: DPE-301GS Category:

D-Link DPE-301GS PoE adapter Fast Ethernet,Gigabit Ethernet

* Images are for illustrative purposes only.
Share on facebook
Share on twitter
Share on whatsapp
Share on linkedin
Share on email

£29.99 £24.99 Ex. VAT

Out of stock

Finance/leasing available for orders over £1000 Inc VAT

Free mainland UK shipping on orders over £150 Ex VAT

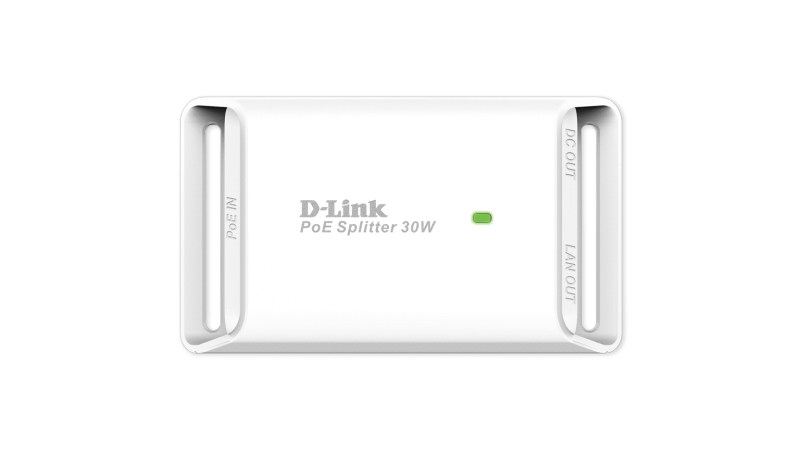

The DPE-301GS PoE splitter is used with end devices such as wireless access points, IP cameras and VoIP phones that don’t natively support PoE, but rather require DC power input of 5V, 9V or 12V. It receives PoE power on a network cable from a PoE switch or midspan injector, and splits the Ethernet and DC power into two separate cables. One cable provides the DC power, and the other cable provides the Ethernet signal. Users can select from 5VDC, 9VDC and 12VDC power for their device using a selectable DIP switch on the device.

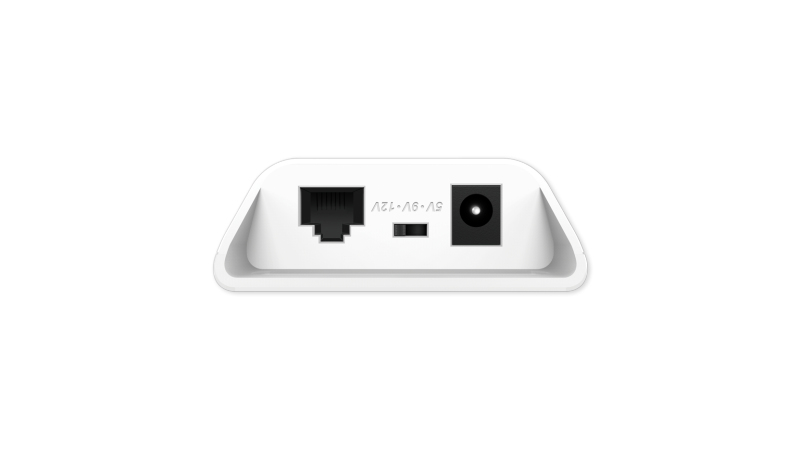

The DPE-301GS PoE splitter is typically located near the end device. It has two 10/100/1000 RJ-45 ports. One port is for PoE IN, which is the network connection and is usually connected to a remote PoE switch or injector. The other port is for LAN OUT, which is the connection that provides the Ethernet signal to the end device. The DPE-301GS also has a 5.5mm DC OUT port. Two adapter cables are supplied; either one may be connected to this port, depending on whether 5.5mm or 3.8mm interface is required for the end device.


Feature Feature Value
Ethernet interface type Fast Ethernet,Gigabit Ethernet
Ethernet LAN data rates 10,100,1000 Mbit/s
Power over Ethernet (PoE) Y
Networking standards IEEE 802.3,IEEE 802.3ab,IEEE 802.3af,IEEE 802.3at,IEEE 802.3u
Rack mounting N
Product colour White
Certification CE, FCC, VCCI, RCM
Ethernet LAN (RJ-45) ports 2
DC-in jack Y
Output power 32.4 W
AC adapter input voltage 100 – 240 V
AC adapter frequency 50/60 Hz
Operating temperature (T-T) 0 – 50 °C
Operating temperature (T-T) 32 – 122 °F
Operating relative humidity (H-H) 5 – 95%
Storage temperature (T-T) -30 – 70 °C
Storage relative humidity (H-H) 5 – 95%
Weight 98 g
Dimensions (WxDxH) 109.8 x 62.2 x 24.5 mm
Number of products included 1 pc(s)
Power over Ethernet (PoE)

Y

Rack mounting

N

Ethernet LAN data rates

10,100,1000 Mbit/s

Ethernet LAN (RJ-45) ports

2

Weight

98 g

Number of products included

1 pc(s)
