26 Port Gigabit Max PoE Switch

DGS-1026MP

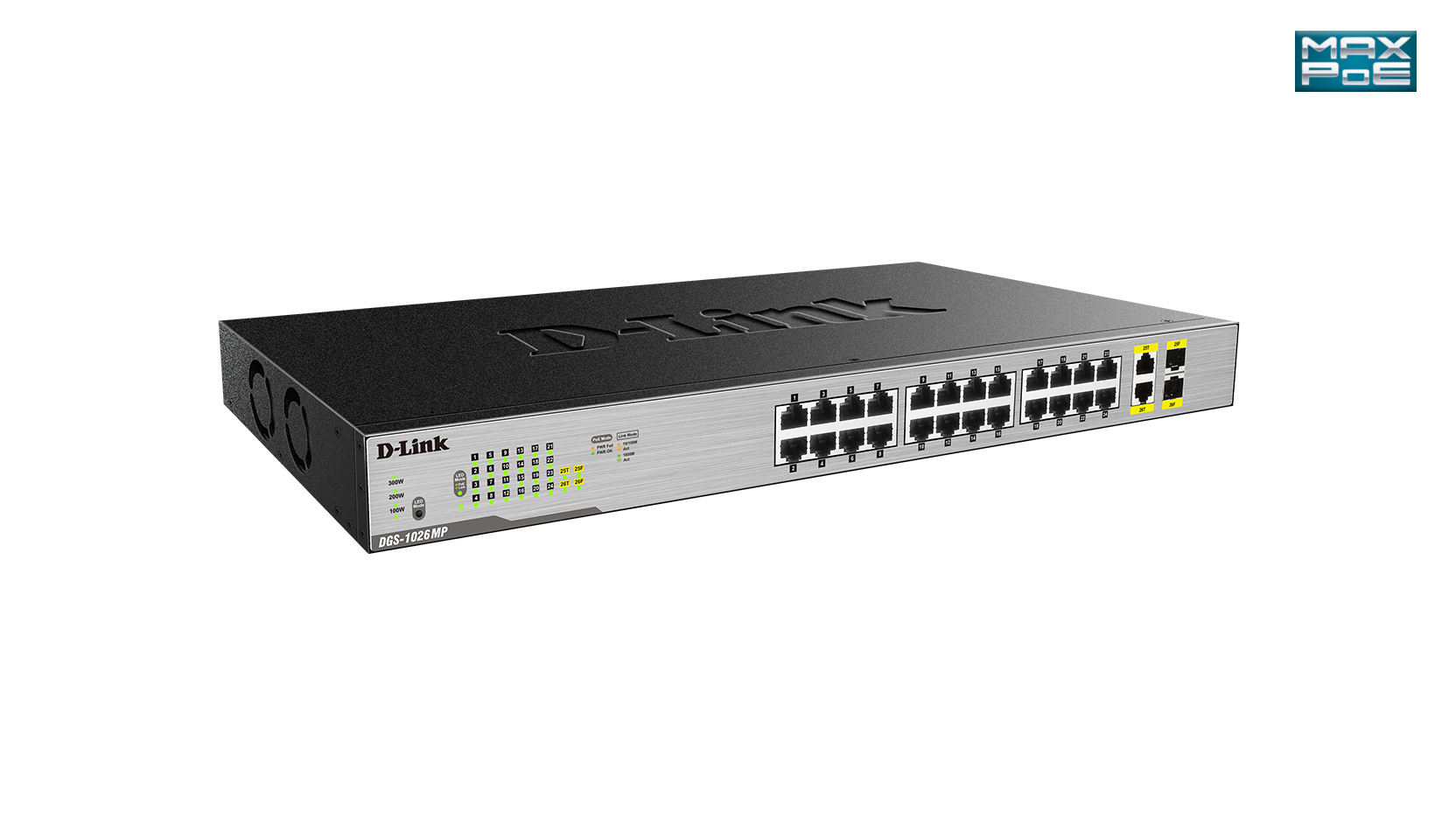

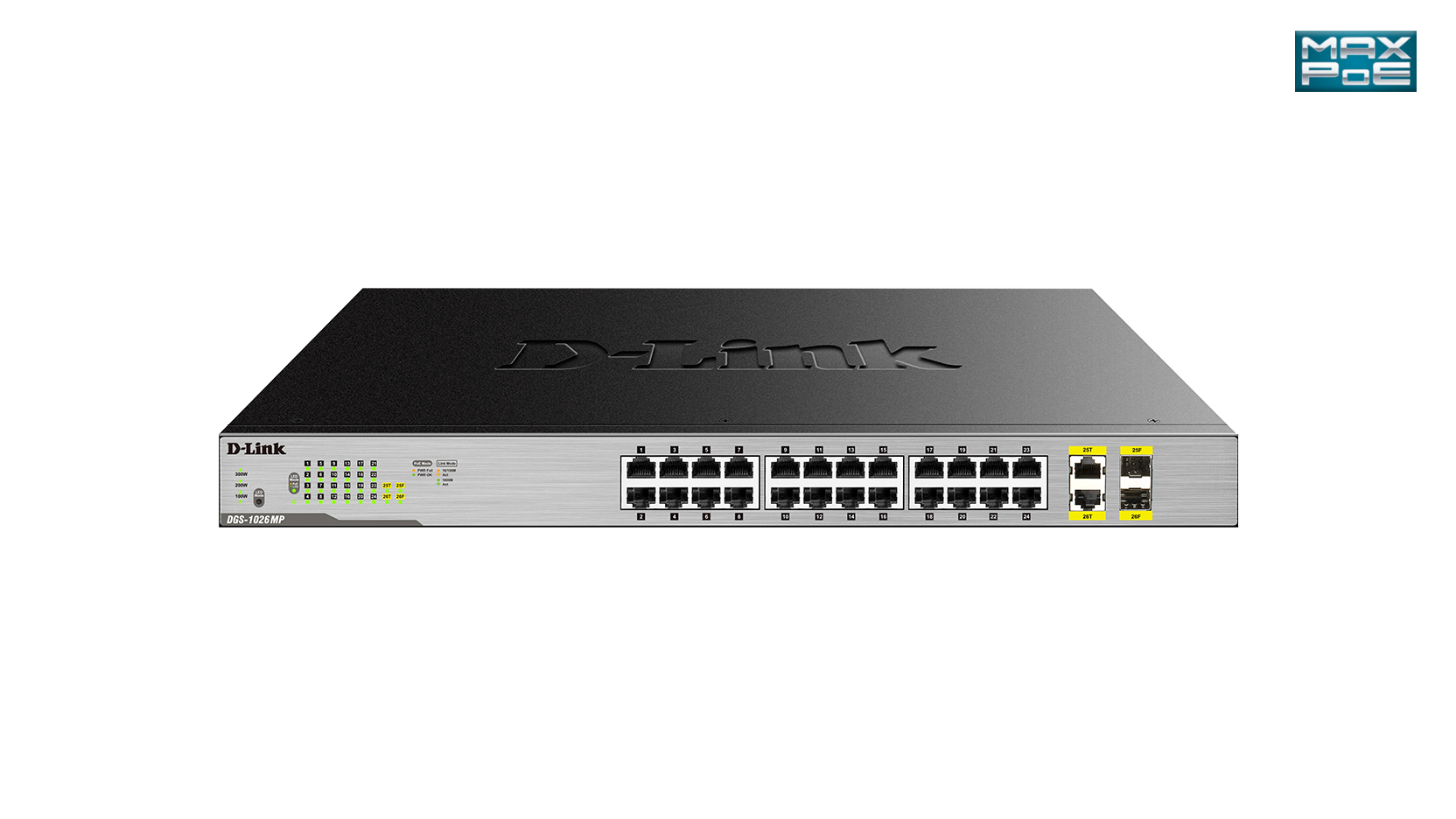

The D-Link DGS-1026MP 26-Port Gigabit Max PoE Switch enables users to easily connect and power PoE-capable devices such as wireless access points (APs), IP cameras, and IP phones.

Power over Ethernet
The DGS-1026MP features 24 10/100/1000BASE-T ports that support the IEEE 802.3at PoE+ standard. Each of the 24 PoE ports can supply up to 30 W, with a total PoE budget of 370 W.
The PoE usage LEDs further provide real-time feedback on the current PoE power usage on the network and helps plan out the PoE network budget, preventing PoE overloading problems.

Expand Your Network
With 2 x Gigabit combo uplink ports, businesses have additional flexibility their network deployment, offering a choice for upstream or downstream server connections via a fibre or copper interface.

Energy Efficient
To help small businesses save on operating costs, the DGS-1026MP supports IEEE 802.3az Energy Efficient Ethernet (EEE). This feature actively monitors network traffic and automatically puts ports that are not being used into hibernation, powering them on only when they are required.

Hassle-Free Setup
The DGS-1026MP is a plug-and-play device that requires no configuration, so setup is simple and hassle-free. Simply connect the switch to the network and then connect multiple computers, share files and make VoIP calls across the network.


Feature Feature Value
Switch type Unmanaged
Basic switching RJ-45 Ethernet ports quantity 24
Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
Installed SFP modules quantity 1
Combo SFP ports quantity 2
Networking standards IEEE 802.3,IEEE 802.3ab,IEEE 802.3af,IEEE 802.3at,IEEE 802.3az,IEEE 802.3u,IEEE 802.3x,IEEE 802.3z
Auto MDI/MDI-X Y
MAC address table 8192 entries
Switching capacity 52 Gbit/s
Throughput 38.69 Mpps
Store-and-forward Y
Product colour Black,Grey
LED indicators Activity,Link,PoE,Power,Power fail,Speed
Number of fans 2 fan(s)
Safety UL/CSA 60950-1, EN 60950-1, IEC 60950-1
Certification FCC Class AnCEnCCCnRoHSnVCCInBSMInRCM
Buffer size 512 KB
Mean time between failures (MTBF) 205975 h
AC input voltage 100 – 240 V
AC input frequency 50 – 60 Hz
Power consumption (max) 444.1 W
Power over Ethernet (PoE) Y
Power over Ethernet (PoE) ports quantity 24
Power over Ethernet (PoE) power per port 30 W
Total Power over Ethernet (PoE) budget 370 W
Operating temperature (T-T) 0 – 50 °C
Storage temperature (T-T) -40 – 70 °C
Operating relative humidity (H-H) 10 – 90%
Storage relative humidity (H-H) 5 – 90%
Heat dissipation 1515 BTU/h
Width 440 mm
Depth 250.4 mm
Height 44 mm
Weight 3.1 kg
Switch type

Unmanaged

Switching capacity

52 Gbit/s

Width

440 mm

MAC address table

8192 entries

Number of fans

2 fan(s)

Power over Ethernet (PoE)

Y

Weight

3.1 kg
